Datsun Fairlady 1600/2000 Brake Piping

Datsun Fairlady Parts illustration no. 047-1 Brake Piping Single Cylinder

047 -1 Brake Piping Single Cylinder

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	ASSY-TUBE,BRAKE MASTER CYLINDER TO 5-WAY CONNECTOR
	46223-14600	SP		-		1

2	ASSY-TUBE,BRAKE MASTER CYLINDER TO 5-WAY CONNECTOR
	46223-14601	SP		-		1

3	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR
	46223-25500	SP, SR	6703	-		1

4	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR
	46223-25901	R DRIVE	6710	-		1

5	ASSY-TUBE,BRAKE MASTER CYLINDER TO 5-WAY CONNECTOR
	46223-14700	SPL		-		1

6	ASSY-TUBE,BRAKE MASTER CYLINDER TO 5-WAY CONNECTOR
	46223-14700	SPL		-		1

7	ASSY-TUBE,BRAKE MASTER CYLINDER TO 5-WAY CONNECTOR
	46223-14700	SPL		-		1

8	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR
	46223-25600	SPL, SRL	6703	-		1

9	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR FR
	46223-A3300	L DRIVE	6710	-		1

10	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR FR
	46223-A7800	L DRIVE	6907	-		1

11	CONNECTOR-5-WAY, BRAKE TUBE
	46234-10600	1.6L		-		1

12	CONNECTOR-3-WAY, BRAKE TUBE
	46215-30500	ALL	6703	-		1
	46215-46501	ALL	6703	-		1

13	BOLT TO ATTACH 5-WAY CONNECTOR
	00114-43010	ALL		-		1

14	WASHER-LOCK TO ATTACH 5-WAY CONNECTOR
	00915-11410	ALL		-		1

15	ASSY-TUBE, 5-WAY CONNECTOR TO FRONT BRAKE HOSE RH
	46240-14600	1.6L		-		1

16	ASSY-TUBE, 5-WAY CONNECTOR TO FRONT BRAKE HOSE RH
	46240-14601	1.6L		-		1

17	TUBE 3-WAY CONNECTOR TO FRONT BRAKE HOSE RH
	46240-25500	ALL	6703	-		1

18	TUBE-CONNECTOR TO FRONT BRAKE RH
	46240-25901	R DRIVE	6710	-		1

19	TUBE-CONNECTOR TO FRONT BRAKE RH
	46240-A3200	R DRIVE	6907	-		1

20	TUBE-CONNECTOR TO FRONT BRAKE RH
	46240-26000	L DRIVE	6710	-		1

21	TUBE-CONNECTOR TO FRONT BRAKE RH
	46240-A3300	L DRIVE	6907	-		1

22	ASSY-TUBE, 5-WAY CONNECTOR TO FRONT BRAKE HOSE LH
	46242-14700	1.6L		-		1
	46242-14701	1.6L		-		1

23	ASSY-TUBE, 5-WAY CONNECTOR TO FRONT BRAKE HOSE LH
	46242-14701	1.6L		-		1

24	TUBE-CONNECTOR TO FRONT BRAKE LH
	46242-25500	ALL	6703	-		1

25	TUBE-CONNECTOR TO FRONT BRAKE LH
	46242-25901	R DRIVE	6710	-		1

26	TUBE-CONNECTOR TO FRONT BRAKE LH
	46242-A3200	R DRIVE	6907	-		1

27	TUBE-CONNECTOR TO FRONT BRAKE LH
	46242-26000	L DRIVE	6710	-		1

28	TUBE-CONNECTOR TO FRONT BRAKE LH
	46242-A3300	L DRIVE	6907	-		1

29	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR RR
	46225-25901	R DRIVE	6710	-		1

30	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR RR
	46225-26001	L DRIVE	6710	-		1

31	TUBE-MASTER CYLINDER TO 3-WAY CONNECTOR RR
	46224-A3300	L DRIVE	6907	-		1

32	ASSY-TUBE, 5-WAY CONNECTOR TO CENTER CONNECTION
	46229-12900	1.6L	6703	-		1

33	ASSY-TUBE, 5-WAY CONNECTOR TO CENTER CONNECTION
	46229-14600	1.6L		-		1

34	TUBE TO CENTER
	46229-25500	R DRIVE	6703	-		1

35	TUBE TO CENTER
	46229-25900	R DRIVE	6710	-		1

36	TUBE-CENTER CONNECTOR FR
	46229-25601	SPL, SRL	6703	-	6709	1

37	TUBE-CENTER CONNECTOR FR
	46229-A3300	L DRIVE	6710	-		1

38	TUBE-CENTER CONNECTOR FR
	46229-A3300	L DRIVE	6907	-		1

39	ASSY-TUBE, CENTER CONNECTION TO REAR BRAKE HOSE
	46228-14600	1.6L		-		1

40	ASSY-TUBE, CENTER CONNECTION TO REAR BRAKE HOSE
	46227-25900	ALL		-		1
	46228-14601	ALL		-		1

41	ASSY-TUBE, CENTER CONNECTION TO REAR BRAKE HOSE
	46227-25900	ALL		-		1

42	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER RH
	46290-14602	1.6L		-		1

43	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER RH
	46290-14602	1.6L		-		1

44	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER RH
	46290-A7400	ALL		-		1

45	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER RH
	46290-A7400	ALL		-		1

46	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER LH
	46310-A7400	1.6L		-		1

47	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER LH
	46310-A7400	ALL		-		1

48	ASSY-TUBE, 3-WAY CONNECTOR TO REAR WHEEL CYLINDER LH
	46310-A7400	ALL		-		1

49	CONNECTOR-BRAKE TUBE 3-WAY
	46357-35001	1.6L		-		1

50	CONNECTOR-BRAKE TUBE 3-WAY
	46357-35001	ALL		-		1

51	BOLT
	00111-51610	ALL		-		1

52	WASHER-LOCK
	00915-11510	ALL		-		1

53	ASSY-HOSE, HYDRAULIC BRAKE FRONT & REAR
	46201-A3200	ALL		-		3

54	ASSY-HOSE, HYDRAULIC BRAKE FRONT & REAR
	46201-A3200	ALL		-		3

55	ASSY-HOSE, HYDRAULIC BRAKE FRONT
	46201-A3200	ALL		-		2

56	ASSY-HOSE, HYDRAULIC BRAKE REAR
	46201-A3211	ALL		-		1

57	GASKET-3-WAY CONNECTION & BRAKE HOSE TO CYLINDER
	46237-F0800	ALL		-		3

58	GASKET-3-WAY CONNECTION & BRAKE HOSE TO CYLINDER
	46237-F0800	ALL		-		3

59	SPRING-LOCK, BRAKE HOSE
	46206-61000	ALL		-		3

60	PLATE-LOCK, BRAKE HOSE
	46205-61000	ALL		-		3

61	CONNECTOR-FRONT BRAKE HOSE TO TUBE
	41130-61001	ALL		-		2

62	CONNECTOR-FRONT BRAKE HOSE TO TUBE
	41130-E0101	ALL	6907	-		2

63	BOLT TO FIX CONNECTOR
	00111-52510	ALL		-		2

64	WASHER-LOCK TO FIX CONNECTOR
	00915-21510	ALL		-		2

65	NUT TO FIX CONNECTOR
	00911-11510	ALL		-		2

66	ASSY-TUBE,FRONT BRAKE RH
	41140-14600	ALL		-		1

67	ASSY-TUBE,FRONT BRAKE RH
	41140-14600	ALL		-		1

68	ASSY-TUBE,FRONT BRAKE RH
	41140-A7400	ALL		-		1

69	ASSY-TUBE,FRONT BRAKE RH
	41140-A7400	ALL		-		1

70	ASSY-TUBE,FRONT BRAKE RH
	41140-A7400	ALL		-		1

71	ASSY-TUBE,FRONT BRAKE RH
	41140-A7400	ALL		-		1

72	ASSY-TUBE,FRONT BRAKE RH
	41140-A7400	ALL		-		1

73	ASSY-TUBE,FRONT BRAKE LH
	41141-14601	ALL		-		1

74	ASSY-TUBE,FRONT BRAKE LH
	41141-14601	ALL		-		1

75	ASSY-TUBE,FRONT BRAKE LH
	41141-A7400	ALL		-		1

76	SWITCH-BRAKE INDICATOR (TOKICO)
	46100-26001	ALL	6710	-		1

77	PISTON (TOKICO)
	46136-26110	ALL		-		1

78	RING-O (TOKICO)
	46137-26110	ALL		-		2

79	PLATE-THROTTLE (TOKICO)
	46138-26110	ALL		-		2

80	SPRING (TOKICO)
	46139-26110	ALL		-		2

81	TERMINAL (TOKICO)
	46140-26110	ALL		-		1

82	PACKING (TOKICO)
	41131-85060	ALL		-		1

83	PLUG-CYLINDER (TOKICO)
	46141-26110	ALL		-		1

84	CAP-CYLINDER (TOKICO)
	46142-26110	ALL		-		1

85	PLUG-CYLINDER (TOKICO)
	46142-26110	ALL		-		1

86	PACKING (TOKICO)
	46143-26110	ALL		-		2

87	PISTON (NABCO)
	46136-26100	ALL	6710	-		1

88	RING-O (NABCO)
	46137-26100	ALL	6710	-		2

89	PLATE (NABCO)
	46138-26100	ALL	6710	-		2

90	SPRING (NABCO)
	46139-26100	ALL	6710	-		2

91	PLUG-CYLINDER "A" (NABCO)
	46146-26000	ALL	6710	-		1

92	PLUG-CYLINDER "A" (NABCO)
	46146-26001	ALL		-		1

93	PLUG-CYLINDER "B" (NABCO)
	46142-26100	ALL	6710	-		1

94	PACKING (NABCO)
	46143-26100	ALL	6710	-		2

95	TERMINAL (NABCO)
	46140-26100	ALL	6710	-		1

96	CLIP-BRAKE TUBE
	46227-26000	ALL	6710	-		1

97	RUBBER-CLIP
	46228-A3300	ALL		-		1

98	RUBBER-CLIP
	46228-A3300	ALL		-		1

99	SCREW
	00310-80812	ALL	6710	-		1

100	WASHER
	00915-10810	ALL	6710	-		1

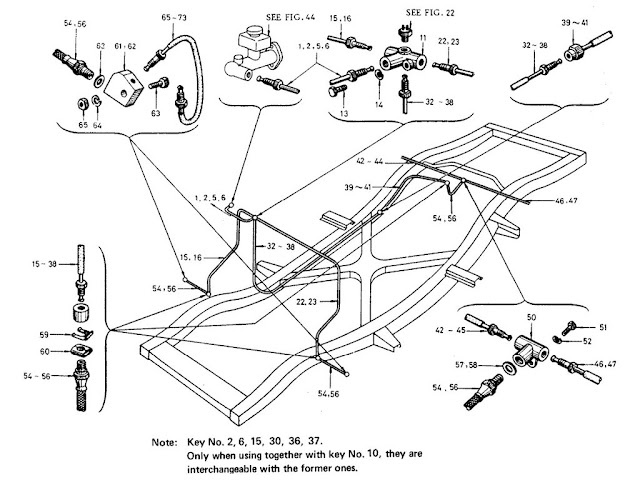

Datsun Fairlady illustration no. 047-1 Brake Piping Single Cylinder

Brake Piping Single Cylinder

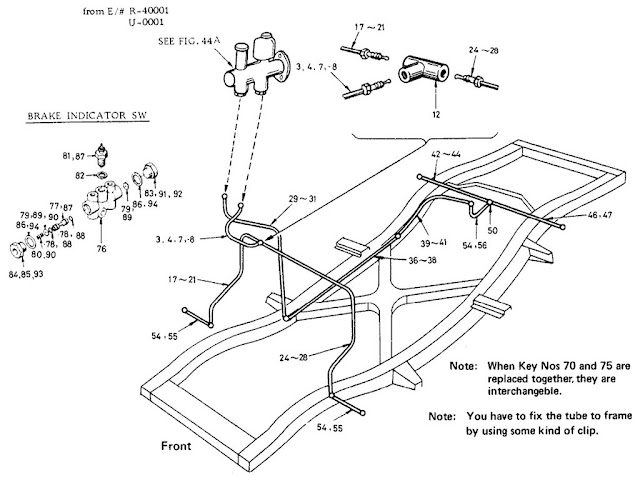

Datsun Fairlady illustration no. 047-2 Brake Piping Tandem Cylinder

Brake Piping Tandem Cylinder
