Datsun Fairlady 1600/2000 Wiring

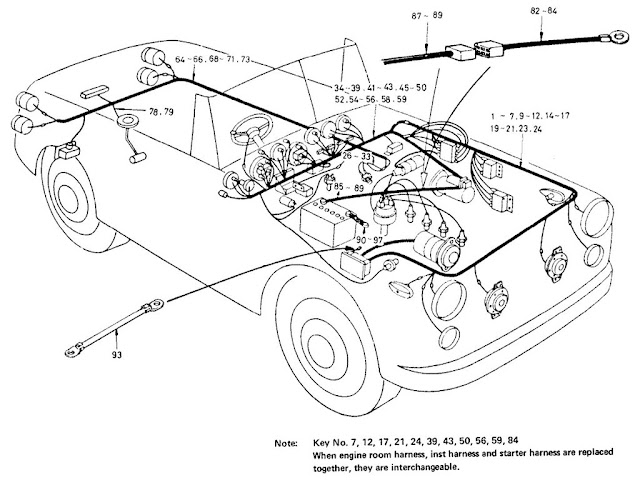

Datsun Fairlady Parts illustration no. 022-1 Wiring (To June 1969)

022 -1 Wiring (To June 1969)

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	ENGINE ROOM HARNESS
	24012-14601	1.6L		-		1

2	ENGINE ROOM HARNESS
	24012-14610	1.6L		-		1

3	ENGINE ROOM HARNESS
	24012-14610	1.6L		-	6709	1

4	ENGINE ROOM HARNESS
	24012-14611	SP	6710	-		1

5	ENGINE ROOM HARNESS
	24012-14701	SPL	6710	-		1

6	ENGINE ROOM HARNESS
	24012-A3207	SP, SPL (EXC USA & CANADA)		-	6906	1
	24012-A3203	SP, SPL (EXC USA & CANADA)	6810	-		1

7	ENGINE ROOM HARNESS
	24012-A3207	SP, SPL (EXC USA & CANADA)		-	6906	1

8	ENGINE ROOM HARNESS
	24012-A7501	SP, SPL (EXC USA & CANADA)	6907	-		1

9	ENGINE ROOM HARNESS
	24012-25600	SR		-	6709	1

10	ENGINE ROOM HARNESS
	24012-25901	SR	6710	-	6809	1

11	ENGINE ROOM HARNESS
	24012-A3206	SR		-	6906	1
	24012-A3202	SR	6810	-		1

12	ENGINE ROOM HARNESS
	24012-A3206	SR		-	6906	1

13	ENGINE ROOM HARNESS
	24012-A7500	SR	6907	-		1

14	ENGINE ROOM HARNESS
	24012-25500	SRL		-	6709	1

15	ENGINE ROOM HARNESS
	24012-26001	SRL	6710	-	6809	1

16	ENGINE ROOM HARNESS
	24012-A3305	SRL (EXC USA & CANADA)		-		1
	24012-A3302	SRL (EXC USA & CANADA)	6810	-		1

17	ENGINE ROOM HARNESS
	24012-A3305	SRL (EXC USA & CANADA)		-		1

18	ENGINE ROOM HARNESS
	24012-A7801	SRL (EXC USA & CANADA)	6907	-		1

19	ENGINE ROOM HARNESS
	24012-26000	USA	6710	-	6809	1

20	ENGINE ROOM HARNESS
	24012-A3304	1.6L USA & CANADA		-	6906	1
	24012-A3301	1.6L USA & CANADA	6810	-		1

21	ENGINE ROOM HARNESS
	24012-A3304	1.6L USA & CANADA		-	6906	1

22	ENGINE ROOM HARNESS
	24012-A7700	1.6L USA & CANADA	6907	-		1

23	ENGINE ROOM HARNESS
	24012-A3303	2L USA & CANADA		-	6906	1
	24012-A3300	2L USA & CANADA	6810	-		1

24	ENGINE ROOM HARNESS
	24012-A3303	2L USA & CANADA		-	6906	1

25	ENGINE ROOM HARNESS
	24012-A7800	2L USA & CANADA	6907	-		1

26	CABLE-REVERSE LAMP SWITCH
	24149-14600	1.6L		-	6709	1

27	CABLE-REVERSE LAMP SWITCH
	24149-25501	2L		-	6709	1

28	CABLE-REVERSE LAMP SWITCH
	24149-14601	ALL	6710	-	6809	1

29	CABLE-REVERSE LAMP SWITCH
	24149-14602	1.6L	6810	-	6906	1

30	CABLE-REVERSE LAMP SWITCH
	24149-A7401	1.6L (EXC EMISSION CONTROL)	6907	-		1

31	CABLE-REVERSE LAMP SWITCH
	24149-A7700	1.6L EMISSION CONTROL	6907	-		1

32	CABLE-REVERSE LAMP SWITCH
	24149-14601	2L	6810	-	6906	1

33	CABLE-REVERSE LAMP SWITCH
	24149-A7400	2L	6907	-		1

34	INSTRUMENT HARNESS
	24013-14601	SP		-		1

35	INSTRUMENT HARNESS
	24013-14603	SP		-	6702	1

36	INSTRUMENT HARNESS
	24013-25500	SP, SR	6703	-	6709	1

37	INSTRUMENT HARNESS
	24013-25900	SP	6710	-	6809	1

38	INSTRUMENT HARNESS
	24013-A3207	SP		-	6906	1
	24013-A3203	SP	6810	-		1

39	INSTRUMENT HARNESS
	24013-A3207	SP		-	6906	1

40	INSTRUMENT HARNESS
	24013-A7501	SP	6907	-		1

41	INSTRUMENT HARNESS
	24013-25901	SR	6710	-	6809	1

42	INSTRUMENT HARNESS
	24013-A3206	SR		-	6906	1
	24013-A3202	SR	6810	-		1

43	INSTRUMENT HARNESS
	24013-A3206	SR		-	6906	1

44	INSTRUMENT HARNESS
	24013-A7500	SR	6907	-		1

45	INSTRUMENT HARNESS
	24013-14701	SPL		-		1

46	INSTRUMENT HARNESS
	24013-14703	SPL		-	6702	1

47	INSTRUMENT HARNESS
	24013-25600	L DRIVE	6703	-	6709	1

48	INSTRUMENT HARNESS
	24013-26000	1.6L L DRIVE	6710	-	6809	1

49	INSTRUMENT HARNESS
	24013-A3305	1.6L USA & CANADA		-	6906	1
	24013-A3301	1.6L USA & CANADA	6810	-		1

50	INSTRUMENT HARNESS
	24013-A3305	1.6L USA & CANADA		-	6906	1

51	INSTRUMENT HARNESS
	24013-A7700	1.6L USA & CANADA	6907	-		1

52	INSTRUMENT HARNESS
	24013-A3303	1.6L L DRIVE	6810	-	6906	1

53	INSTRUMENT HARNESS FOR PASSING LIGHT
	24013-A7701	1.6L L DRIVE	6907	-		1

54	INSTRUMENT HARNESS
	24013-26001	2L L DRIVE	6710	-	6809	1

55	INSTRUMENT HARNESS
	24013-A3304	2L USA & CANADA		-	6906	1
	24013-A3300	2L USA & CANADA	6810	-		1

56	INSTRUMENT HARNESS
	24013-A3304	2L USA & CANADA		-	6906	1

57	INSTRUMENT HARNESS
	24013-A7800	2L USA & CANADA	6907	-		1

58	INSTRUMENT HARNESS FOR PASSING LIGHT
	24013-A3306	2L L DRIVE (EXC USA & CANADA)		-	6906	1
	24013-A3302	2L L DRIVE (EXC USA & CANADA)	6810	-		1

59	INSTRUMENT HARNESS FOR PASSING LIGHT
	24013-A3306	2L L DRIVE (EXC USA & CANADA)		-	6906	1

60	INSTRUMENT HARNESS FOR PASSING LIGHT
	24013-A7801	2L L DRIVE (EXC USA & CANADA)	6907	-		1

61	BULB (12V-3W)
	26713-89900	ALL		-		9

62	BULB (12V-3W)
	26713-89900	ALL		-		9

63	BULB (12V-1.5W)
	26711-89900	ALL		-		3

64	CHASSIS HARNESS
	24014-14600	SP, SR		-	6709	1

65	CHASSIS HARNESS
	24014-25900	SP, SR	6710	-	6809	1

66	CHASSIS HARNESS
	24014-25901	SP, SR	6810	-	6906	1

67	CHASSIS HARNESS
	24014-A7500	SP, SR	6907	-		1

68	CHASSIS HARNESS
	24014-14700	SPL		-	6702	1

69	CHASSIS HARNESS
	24014-25600	SPL, SRL	6703	-	6709	1

70	CHASSIS HARNESS
	B4014-26000	L DRIVE	6710	-	6906	1

71	CHASSIS HARNESS
	B4014-26000	SPL, SRL	6810	-	6906	1

72	CHASSIS HARNESS
	24014-A7801	SPL, SRL	6907	-		1

73	CHASSIS HARNESS
	24014-A3300	USA	6810	-	6906	1

74	CHASSIS HARNESS
	24014-A7800	USA & CANADA	6907	-		1

75	GROMMET
	00951-10600	ALL		-		2

76	GROMMET WIRING
	24250-A7400	ALL	6907	-		1

77	GROMMET WIRING
	24251-A7400	ALL	6907	-		1

78	CABLE-FUEL TANK GAUGE (NOT ADOPTED)
	24017-14600	ALL		-		1

79	CABLE-FUEL TANK GAUGE
	24017-14600	ALL		-		1

80	SCREW TO FIX CHASSIS & ENGINE HARNESS EARTH TO FRAME
	00314-41012	ALL		-		2

81	WASHER-LOCK TO FIX CHASSIS & ENGINE HARNESS EARTH TO FRAME
	00915-11410	ALL		-		2

82	HARNESS-STARTER TO INSTRUMENT HARNESS
	24018-14601	ALL		-	6709	1

83	HARNESS-STARTER TO INSTRUMENT HARNESS
	24018-A3200	ALL		-		1
	24018-25900	ALL	6710	-		1

84	HARNESS-STARTER TO INSTRUMENT HARNESS
	24018-A3200	ALL		-		1

85	ASSY-CABLE, STARTER MOTOR
	24110-14600	SP		-		1

86	ASSY-CABLE, STARTER MOTOR
	24110-14700	SPL		-		1

87	ASSY-CABLE, STARTER MOTOR
	24090-J1001	ALL	6703	-	6809	1

88	ASSY-CABLE, STARTER MOTOR
	24090-J1001	ALL (EXC SR)	6810	-		1

89	ASSY-CABLE, STARTER MOTOR
	24090-J1001	SR	6810	-		1

90	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-14600	SP		-		1

91	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-25600	SP, SR	6703	-		1

92	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-A3301	SP	6810	-		1

93	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-A3201	SR	6810	-		1

94	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-14700	SPL		-		1

95	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-26000	SPL, SPLU, SRL	6703	-		1

96	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-26000	SRL, SRLU	6710	-	6809	1

97	ASSY-CABLE, GROUND CONNECTION BATTERY
	24080-A3301	SPL, SRL	6810	-		1

98	EARTH BOND
	24085-A3201	FRANCE		-		1

99	ASSY-CABLE, GROUND CONNECTION, STARTER
	24120-J1000	ALL		-		1

100	ASSY-HARNESS CONSOLE
	24023-14601	ALL (EXC USA)		-	6809	1

101	ASSY-HARNESS CONSOLE
	24023-14601	ALL (EXC USA)	6710	-	6809	1

102	ASSY-CABLE CONSOLE
	24023-25901	USA OP, ALL (EXC USA)		-		1

103	ASSY-CABLE CONSOLE
	24023-25901	USA OP, ALL (EXC USA)	6710	-	6809	1

104	ASSY-CABLE CONSOLE WITH HAZARD CIRCUIT
	24023-A3201	ALL (EXC USA)	6810	-		1

105	ASSY-CABLE CONSOLE W/O HAZARD CIRCUIT
	24023-A3202	ALL (EXC USA)	6810	-		1

106	ASSY-CABLE CONSOLE
	24023-A3300	USA	6810	-		1

107	SCREW
	00314-41214	ALL		-		1

108	BOLT
	00114-41210	ALL		-		1

109	WASHER-SPRING
	00915-11410	ALL		-		2

110	WASHER-PLAIN
	08911-10637	ALL		-		2

111	HARNESS THERMAL T/M
	24020-76000	1.6L		-		1

112	G/CONN TO ALTERNATOR
	24070-25600	SR & USA		-		1

Datsun Fairlady illustration no. 022-1 Wiring (To June 1969)

Wiring (To June 1969)

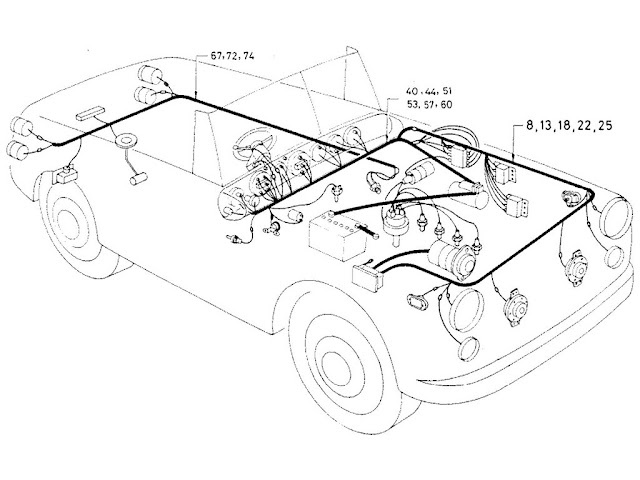

Datsun Fairlady illustration no. 022-2 Wiring (From July 1969)

Wiring (From July 1969)
