Datsun Fairlady 1600 (R16) Oil Pump & Strainer

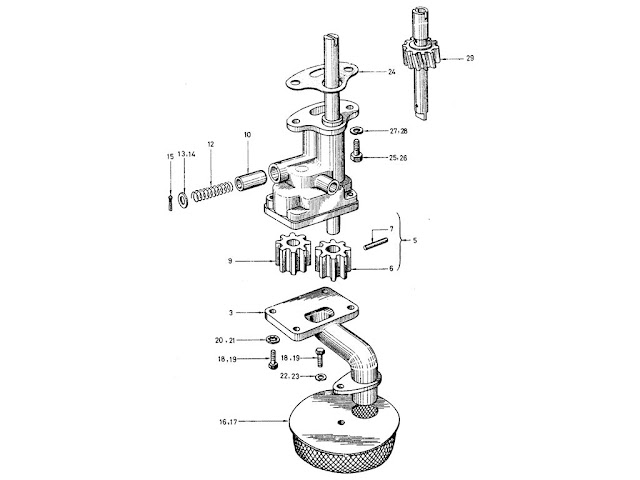

Datsun Fairlady Parts illustration no. 006-1 Oil Pump & Strainer 1600 (R16)

006 -1  Oil Pump & Strainer 1600 (R16)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-PUMP, OIL, WITH OIL STRAINER
  15010-188101.6L   -   1
2ASSY-PUMP, OIL, WITH OIL STRAINER
  15010-188101.6L6703 -   1
3COVER-OIL PUMP
  15015-122001.6L   -   1
4ASSY-SHAFT,OIL PUMP
  15020-78200 1.6L   -   1
5ASSY-SHAFT,OIL PUMP
  15020-782001.6L   -   1
6GEAR-DRIVE, OIL PUMP
  15021-322001.6L   -   1
7PIN-DRIVE SHAFT
  15030-322001.6L   -   1
8GEAR-DRIVE, OIL PUMP
  15023-782001.6L   -   1
9GEAR-DRIVE, OIL PUMP
  15023-782001.6L   -   1
10VALVE-OIL REGULATOR
  15132-580001.6L   -   1
11SPRING-VALVE, OIL REGULATOR
  15133-615001.6L   -   1
12SPRING-VALVE, OIL REGULATOR
  15133-615001.6L   -   1
13SHIM-OIL REGULATOR (1M/M)
  15136-580001.6L   -   1
14SHIM-OIL REGULATOR (2M/M)
  15137-580001.6L   -   1
15PIN-COTTER (3)
  00921-325101.6L   -   1
16ASSY-STRAINER, OIL
  15050-F15001.6L   -   1
17ASSY-STRAINER, OIL
  15050-782001.6L   -   1
18BOLT-COVER TO STRAINER
  00111-414101.6L   - 67025
19BOLT-COVER TO STRAINER
  08120-614101.6L6703 -   5
20WASHER-COVER TO BODY
  00916-114101.6L   - 67024
21WASHER-COVER TO BODY
  08916-136001.6L6703 -   4
22WASHER-SPRING COVER TO BODY
  00915-114101.6L   - 67021
23WASHER-SPRING COVER TO BODY
  08915-1361A1.6L6703 -   1
24GASKET-OIL PUMP TO CYLINDER BLOCK
  15066-322001.6L   -   1
25BOLT-HEX M8 TO FIX OIL PUMP TO CYLINDER BLOCK
  00111-525101.6L   - 67022
26BOLT-HEX M8 TO FIX OIL PUMP TO CYLINDER BLOCK
  08120-822101.6L6703 -   2
27WASHER-LOCK TO FIX OIL PUMP TO CYLINDER BLOCK
  00915-115101.6L   - 67022
28WASHER-LOCK TO FIX OIL PUMP TO CYLINDER BLOCK
  08915-1381A1.6L6703 -   2
29ASSY-SPINDLE, DRIVING OIL PUMP
  15040-610001.6L   -   1
COVER-OIL PUMP ASSY-SHAFT,OIL PUMP PIN-DRIVE SHAFT SPRING-VALVE, OIL REGULATOR PIN-COTTER (3) GEAR-DRIVE, OIL PUMP ASSY-STRAINER, OIL WASHER-SPRING COVER TO BODY BOLT-HEX M8 TO FIX OIL PUMP TO CYLINDER BLOCK ASSY-SPINDLE, DRIVING OIL PUMP GEAR-DRIVE, OIL PUMP VALVE-OIL REGULATOR SHIM-OIL REGULATOR (1M/M) / SHIM-OIL REGULATOR (2M/M) BOLT-COVER TO STRAINER BOLT-COVER TO STRAINER WASHER-COVER TO BODY / WASHER-COVER TO BODY GASKET-OIL PUMP TO CYLINDER BLOCK WASHER-LOCK TO FIX OIL PUMP TO CYLINDER BLOCK
