Datsun Fairlady 2000 (U20) Water Pump & Fan

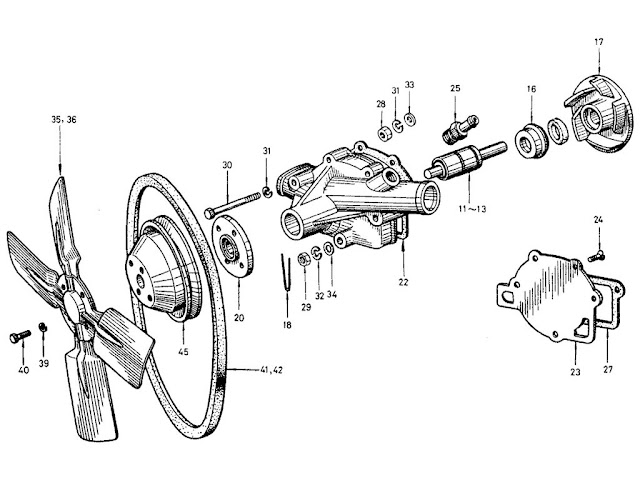

Datsun Fairlady Parts illustration no. 015A-1 Water Pump & Fan 2000 (U20) (Exc. SRLU)

015A -1  Water Pump & Fan 2000 (U20) (Exc. SRLU)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-WATER PUMP
  21010-25625 2L (EXC EXHAUST)   -   1
2ASSY-WATER PUMP
  21010-256252L (EXC EMISSION CONTROL)   -   1
3ASSY-WATER PUMP W/GASKET
  21010-256252L (EXC EMISSION CONTROL)   -   1
4WATER PUMP W/FAN CLUTCH
  21010-25625 2L EXHAUST   -   1
5WATER PUMP W/O FAN CLUTCH
  21010-25625 2L EMISSION CONTROL   -   1
6WATER PUMP W/GASKET
  21010-25625 2L EMISSION CONTROL   -   1
7WATER PUMP
  21010-25625 2L EMISSION CONTROL   -   1
8WATER PUMP
  21010-256252L EMISSION CONTROL   -   1
9WATER PUMP W/GASKET
  21010-256252L EMISSION CONTROL   -   1
10BEARING & SEAL SET
  21046-255002L (EXC EMISSION CONTROL)   -   1
11BEARING-WATER PUMP
  21035-255012L (EXC EMISSION CONTROL)   -   1
12BEARING-WATER PUMP
  21035-255012L (EXC EMISSION CONTROL)   -   1
13BEARING-WATER PUMP
  21035-256012L EMISSION CONTROL   -   1
14BEARING & SEAL SET
  21046-256002L EMISSION CONTROL   -   1
15ASSY-SEAL, WATER PUMP
  21026-850002L   -   1
16ASSY-SEAL, WATER PUMP
  21026-850002L   -   1
17VANE
  21022-255002L   -   1
18RING-SNAP
  21043-730002L   -   1
19SEAL & WIRE SET
  21047-255002L   -   1
20HUB
  21054-255002L   -   1
21GASKET
  21014-255012L   -   1
22GASKET-PUMP
  21014-255012L   -   1
23COVER-PUMP
  21013-255002L   -   1
24SCREW MACHINE
  21012-255002L   -   3
25CONNECTOR
  14049-188112L   -   1
26PLUG-TAPPER
  08931-306102L   -   1
27GASKET-WATER PUMP TO CYLINDER BLOCK
  21074-201002L   -   1
28NUT-HEXAGON M10
  08911-1401A2L   -   1
29NUT-HEXAGON M8
  08911-1082A2L   -   1
30BOLT-HEXAGON HEAD M8
  15267-255002L   -   1
31WASHER-SPRING, LOCK M10
  08915-2401A2L   -   1
32WASHER-SPRING, LOCK M8
  08915-1381A2L   -   2
33WASHER-PLAIN M10
  08915-4405A2L   -   1
34WASHER-PLAIN M8
  08915-4381A2L   -   2
35BLADE-FAN (PLASTIC)
  21060-E30012L (EXC SRLU)   -   1
36BLADE-FAN (PLASTIC) (7 BLADES)
  21060-25600SRLU   -   1
37SPACER-FAN
  21064-255002L   -   1
38WASHER-LOCK,FAN
  21069-255002L   -   2
39WASHER-LOCK,FAN
  21069-255002L   -   2
40BOLT-HEXAGON M6
  08170-645102L   -   2
41BELT-FAN L990
  21067-10800SRL   -   1
42BELT-FAN L880
  11720-73403SR   -   1
43BELT-FAN L870
  11720-25604SRLU   -   1
44BELT-FAN L856
  11720-25604SRLU   -   1
45PULLEY
  21051-255002L (EXC SRLU)   -   1
46PULLEY
  21051-25600SRLU   -   1
47SPACER-WATER PUMP
  21036-14700SRLU6710 -   1
48STUD-WATER PUMP
  13061-14700SRLU6710 -   1
49FAN CLUTCH
  21150-25600SRLU6710 -   1
50BOLT-HEX M6
  08130-61610SRLU6710 -   4
51WASHER-LOCK
  08915-1361ASRLU6710 -   4
52BOLT BEARING
  21040-25600SRLU6710 -   1
53ASSY-FAN CLUTCH WITH PULLEY
  21095-25600SRLU   -   1
ASSY-SEAL, WATER PUMP SCREW MACHINE GASKET-WATER PUMP TO CYLINDER BLOCK BEARING-WATER PUMP WASHER-SPRING, LOCK M10 WASHER-SPRING, LOCK M10 BOLT-HEXAGON M6 WASHER-LOCK,FAN HUB BELT-FAN L990 / BELT-FAN L880 WASHER-PLAIN M8 VANE CONNECTOR COVER-PUMP GASKET-PUMP WASHER-PLAIN M10 NUT-HEXAGON M10 BOLT-HEXAGON HEAD M8 BLADE-FAN (PLASTIC) / BLADE-FAN (PLASTIC) (7 BLADES) PULLEY RING-SNAP NUT-HEXAGON M8 WASHER-SPRING, LOCK M8 FAN CLUTCH BOLT-HEX M6 WASHER-LOCK BLADE-FAN (PLASTIC) (7 BLADES) BOLT-HEXAGON M6 WASHER-PLAIN M8 SCREW MACHINE WASHER-PLAIN M10 WASHER-SPRING, LOCK M10 ASSY-SEAL, WATER PUMP VANE COVER-PUMP GASKET-PUMP CONNECTOR NUT-HEXAGON M8 WASHER-SPRING, LOCK M8 BOLT BEARING BELT-FAN L856 RING-SNAP BEARING-WATER PUMP HUB WASHER-LOCK,FAN BOLT-HEXAGON HEAD M8 WASHER-SPRING, LOCK M10 NUT-HEXAGON M10 GASKET-WATER PUMP TO CYLINDER BLOCK WASHER-PLAIN M8
