Datsun Fairlady 1600/2000 Rear Suspension

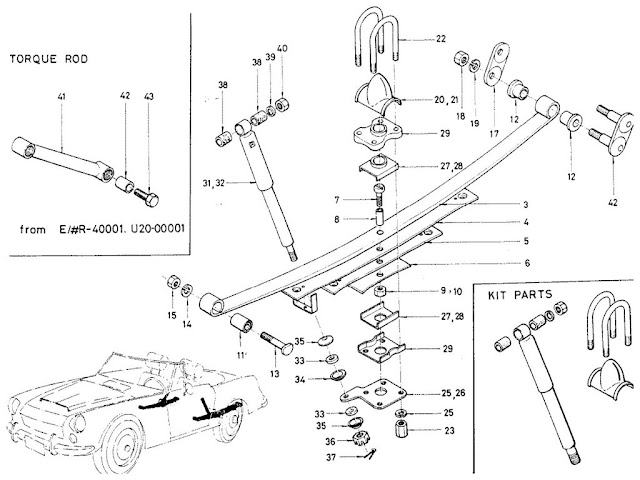

Datsun Fairlady Parts illustration no. 053-1 Rear Suspension

053 -1  Rear Suspension
KeyPart No.ModelApplied DateQty
FromTo
1SPRING-ASSY REAR
  55020-105001.6L   - 67022
2SPRING-ASSY REAR (2.52KG/MM)
  55020-25500ALL6703 -   2
3LEAF-REAR SPRING NO.1
  55021-105001.6L   -   2
4LEAF-REAR SPRING NO.2
  55022-105001.6L   -   2
5LEAF-REAR SPRING NO.3
  55023-105001.6L   -   2
6LEAF-REAR SPRING NO.4
  55024-105001.6L   -   2
7BOLT-CENTER
  55057-10500ALL   -   2
8PIECE-DISTANCE, CENTER BOLT'S NUT
  55056-04100ALL   -   2
9NUT
  08911-60800 ALL   -   2
10NUT
  08911-60800ALL   -   2
11BUSHING-REAR SPRING
  55045-04100ALL   -   2
12BUSHING-RUBBER, REAR SPRING
  55046-04100ALL   -   8
13PIN-REAR SPRING, FRONT
  55224-04100ALL   -   2
14WASHER-LOCK
  00915-11710ALL   -   2
15NUT
  00911-24710ALL   -   2
16ASSY-SHACKLE, REAR SPRING
  55220-04100ALL   -   2
17SHACKLE-REAR SPRING
  55221-04100ALL   -   2
18NUT
  00915-11710ALL   -   4
19WASHER-LOCK
  00911-24710ALL   -   4
20ASSY-BUMPER, REAR AXLE
  55240-146001.6L   - 67022
21ASSY-BUMPER, REAR AXLE
  55240-25500ALL6703 -   2
22CLIP-REAR SPRING
  55247-14700ALL   -   4
23NUT
  00911-54610ALL   -   8
24WASHER-LOCK
  00915-21610ALL   -   8
25SEAT-REAR SPRING RH
  55262-14600ALL   -   1
26SEAT-REAR SPRING LH
  55266-14600ALL   -   1
27PAD-SEATING, REAR SPRING
  55243-041001.6L   -   4
28PAD-SEATING, REAR SPRING
  E4043-C9001ALL6703 -   4
29PLATE-LOCATING, REAR SPRING
  55054-14600ALL   -   4
30SHOCK ABSORBER REAR
  56210-25525 1.6L   -   2
31SHOCK ABSORBER REAR
  56210-255251.6L   -   2
32SHOCK ABSORBER REAR
  56210-25525ALL6703 -   2
33BUSHING-RUBBER
  56112-W5000ALL   -   4
34WASHER-SPECIAL, OUTER
  56113-60U0AALL   -   2
35WASHER-SPECIAL, INNER
  56114-09400ALL   -   4
36NUT
  00911-74610ALL   -   2
37COTTER PIN
  00921-22210ALL   -   2
38BUSHING-RUBBER
  56127-45460ALL   -   4
39WASHER-SPECIAL
  56229-04100ALL   -   2
40NUT
  00912-35010ALL   -   2
41ASSY-ROD, TORQUE
  55401-25500ALL6703 -   2
42BUSH-TORQUE ROD
  55405-25500ALL6703 -   2
43BOLT-TORQUE ROD
  55406-25500ALL6703 -   2
