Datsun 311 Index Brake Brake Master Cylinder Dual (1967.5-70)
Login

Datsun Fairlady 1600/2000 Brake Master Cylinder (1967.5-70)

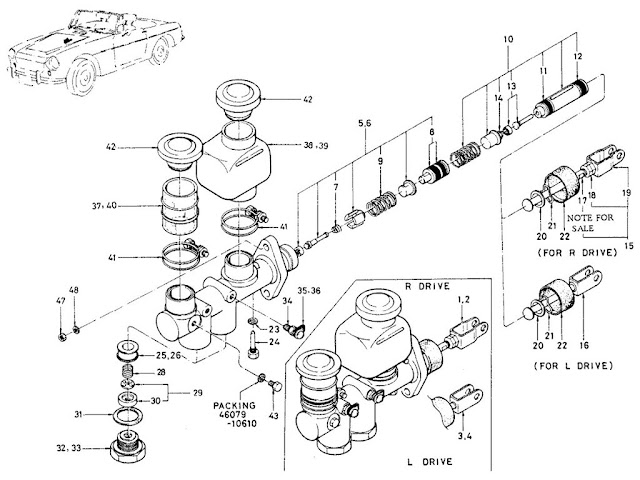

Datsun Fairlady Parts illustration no. 044A-1 Brake Master Cylinder (Tandem) (1967.5-70)

044A -1  Brake Master Cylinder (Tandem) (1967.5-70)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CYLINDER,BRAKE MASTER,TANDEM TYPE W/STOPPER
  46010-A7400SP, SR6703 -   1
2ASSY-CYLINDER,BRAKE MASTER,TANDEM TYPE W/STOPPER
  46010-A7400SP, SR6703 -   1
3ASSY-CYLINDER,BRAKE MASTER,TANDEM TYPE W/STOPPER
  46010-A7800SPL, SRL6703 -   1
4ASSY-CYLINDER,BRAKE MASTER,TANDEM TYPE W/STOPPER
  46010-A7800SPL, SRL6703 -   1
5ASSY-PISTON, BRAKE (TOKICO)
  46063-A7410ALL6703 -   1
6ASSY-PISTON, BRAKE (TOKICO)
  46063-A7410ALL6703 -   1
7SPRING-VALVE INLET (TOKICO)
  46056-73010ALL6703 -   1
8CUP-PISTON (PRIMARY & SECONDARY) (TOKICO)
  46078-61010ALL6703 -   2
9SPRING-CYLINDER (TOKICO)
  46075-23111ALL6703 -   1
10ASSY-PISTON (SECONDARY) (TOKICO)
  46063-23112ALL6703 -   1
11CUP-PISTON (SECONDARY) (TOKICO)
  46068-61010ALL6703 -   1
12CUP-PISTON (PRIMARY & SECONDARY) (TOKICO)
  46078-61010ALL6703 -   1
13ASSY-VALVE INLET (TOKICO)
  46073-10610ALL6703 -   2
14SPRING-VALVE INLET (TOKICO)
  46056-73010ALL6703 -   1
15ASSY-ROD PUSH (TOKICO)
  46080-25510SP, SR6703 -   1
16ASSY-ROD PUSH (TOKICO)
  46080-25610SPL, SRL6703 -   1
17ROD-PUSH
  46080-25510SP, SR6703 -   1
18NUT-HEXAGON
  46103-73410SP, SR6703 -   1
19YOKE
  30629-73410SP, SR6703 -   1
20STOPPER-PISTON
  46082-73410SP, SR6703 -   1
21RING-SNAP
  46070-27260ALL6703 -   1
22COVER-DUST
  46100-27260ALL6703 -   1
23GASKET
  46079-10610ALL6703 -   2
24SCREW-STOPPER
  46032-10610ALL6703 -   1
25SEAT-VALVE
  46059-B5022ALL6703 -   2
26SEAT-VALVE
  46059-B5022ALL6703 -   2
27SPRING-VALVE
  46027-B5022 ALL6703 -   2
28SPRING-VALVE
  46027-B5022ALL6703 -   2
29ASSY-VALVE
  46050-73410ALL6703 -   2
30RETAINER
  46057-73410ALL6703 -   2
31GASKET-CAP VALVE
  46036-30100ALL6703 -   2
32CAP-VALVE
  46038-E0110ALL6703 -   2
33CAP-VALVE
  46038-E0110ALL6703 -   2
34SCREW-BLEEDER
  44128-50C10ALL6703 -   2
35CAP-BLEEDER SCREW
  41129-40F00 ALL6703 -   2
36CAP-BLEEDER SCREW
  41129-40F00ALL6703 -   2
37RESERVOIR-BRAKE OIL (TOKICO)
  46090-10610SP, SR6703 -   1
38RESERVOIR-BRAKE OIL (TOKICO)
  46090-25610SPL, SRL6703 -   1
39RESERVOIR-BRAKE OIL (TOKICO)
  46090-25510SP, SR6703 -   1
40RESERVOIR-BRAKE OIL (TOKICO)
  46091-25610SPL, SRL6703 -   1
41ASSY-BAND OIL RESERVOIR
  46016-B5022ALL6703 -   2
42SET-CAP OIL RESERVOIR (TOKICO)
  46020-10621ALL6703 -   2
43SCREW-STOPPER
  46070-28511ALL6703 -   1
44SHIM-BRAKE MASTER CYLINDER (1.6T)
  46117-27260ALL6703 -
45SHIM-BRAKE MASTER CYLINDER (0.8T)
  46118-25600ALL6703 -
46SHIM-BRAKE MASTER CYLINDER (0.5T)
  46119-27260ALL6703 -
47NUT-HEXAGON (5/14-24-UNF)
  00911-24510ALL6703 -   2
48WASHER-LOCK 5/16
  00915-21510ALL6703 -   2
49KIT-A, BRAKE MASTER CYLINDER
  46012-23125 ALL6703 -   1
50KIT-A, BRAKE MASTER CYLINDER
  46012-23125ALL6703 -   1
51KIT-B, BRAKE MASTER CYLINDER
  46011-A7426 ALL6703 -   1
52KIT-B, BRAKE MASTER CYLINDER
  46011-A7426ALL6703 -   1
