Datsun Fairlady 1600/2000 Hand Brake Control

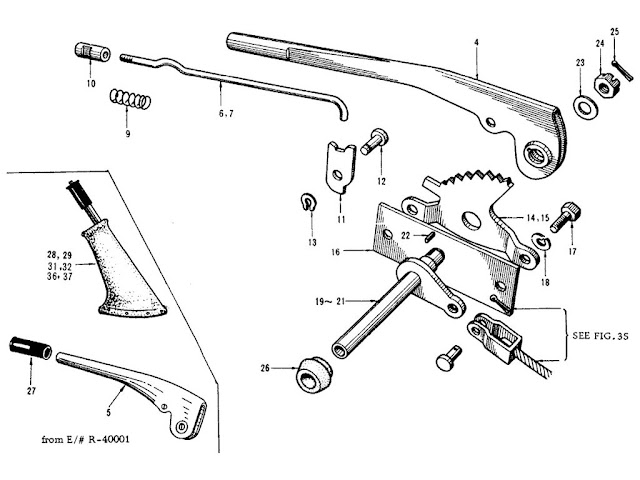

Datsun Fairlady Parts illustration no. 034-1 Hand Brake Control

034 -1  Hand Brake Control
KeyPart No.ModelApplied DateQty
FromTo
1CONTROL-HAND BRAKE
  36010-104011.6L   -   1
2CONTROL-HAND BRAKE
  36010-25500ALL6703 - 67091
3CONTROL-HAND BRAKE
  36010-25900ALL6710 -   1
4CONTROL-HAND BRAKE
  36310-104011.6L   -   1
5CONTROL-HAND BRAKE
  36310-25500ALL6703 -   1
6ROD-RELEASE
  36327-041011.6L   -   1
7ROD-RELEASE
  36327-25500ALL6703 -   1
8SPRING RELEASE
  36330-25500ALL   -   1
9SPRING RELEASE
  36330-25500ALL   -   1
10SPRING-PAWL
  36329-04100ALL   -   1
11PAWL-RATCHET
  36332-04100ALL   -   1
12PIN-PAWL
  36339-04100ALL   -   1
13WASHER-SPRING
  41058-10360ALL   -   1
14PAWL-RATCHET
  36320-104011.6L   -   1
15PAWL-RATCHET
  36320-25500ALL6703 -   1
16PLATE STOP
  36343-10400ALL   -   1
17BOLT
  00114-51610ALL   -   2
18WASHER
  00915-11510ALL   -   2
19ROD-CENTER LINK
  36433-104001.6L   -   1
20ROD-CENTER LINK
  36433-25500ALL6703 - 67091
21ROD-CENTER LINK
  36433-25900ALL6710 -   1
22KEY
  00928-31600ALL   -   1
23WASHER
  00915-41610ALL   -   1
24NUT
  00911-94610ALL   -   1
25COTTER PIN
  00921-22210ALL   -   1
26COVER DUST
  36463-10400ALL   -   1
27GRIP LEVER
  36315-25500ALL6703 -   1
28COVER HAND BRAKE LEVER (RED)
  74980-129001.6L   -   1
29COVER HAND BRAKE LEVER (RED)
  74980-25500ALL6703 -   1
30COVER HAND BRAKE LEVER (RED)
  74980-25900ALL6710 -   1
31COVER HAND BRAKE LEVER (BLACK)
  74980-255011.6L   -   1
32COVER HAND BRAKE LEVER (BLACK)
  74980-25501ALL6703 -   1
33COVER HAND BRAKE LEVER (BLACK)
  74980-25901ALL6710 -   1
34FASTENER-MALE
  61224-35210ALL   -   4
35SCREW
  00530-61620ALL   -   4
SPRING-PAWL SPRING RELEASE ROD-RELEASE / ROD-RELEASE WASHER-SPRING PAWL-RATCHET BOLT GRIP LEVER CONTROL-HAND BRAKE PAWL-RATCHET PIN-PAWL PLATE STOP NLP WASHER ROD-CENTER LINK COVER DUST KEY WASHER NUT COTTER PIN CONTROL-HAND BRAKE COVER HAND BRAKE LEVER (RED) COVER HAND BRAKE LEVER (BLACK) COVER HAND BRAKE LEVER (BLACK) / FASTENER-MALE
SPRING-PAWL SPRING RELEASE ROD-RELEASE / ROD-RELEASE WASHER-SPRING PAWL-RATCHET BOLT GRIP LEVER CONTROL-HAND BRAKE PAWL-RATCHET PIN-PAWL PLATE STOP NLP WASHER ROD-CENTER LINK COVER DUST KEY WASHER NUT COTTER PIN CONTROL-HAND BRAKE COVER HAND BRAKE LEVER (RED) COVER HAND BRAKE LEVER (BLACK) COVER HAND BRAKE LEVER (BLACK) / FASTENER-MALE
