Datsun Fairlady 1600/2000 Hand Brake Linkage

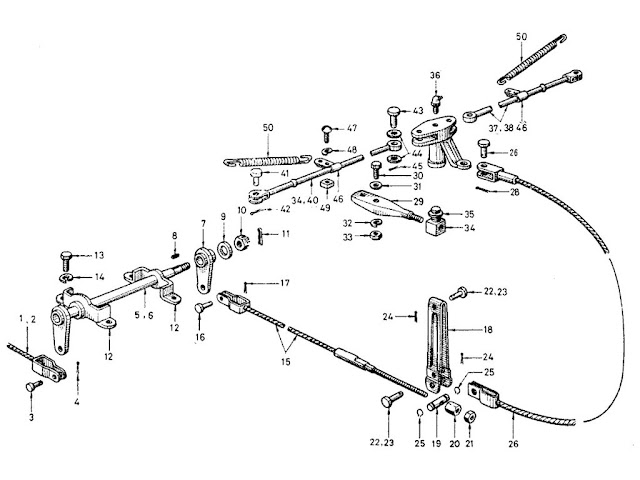

Datsun Fairlady Parts illustration no. 035-1 Hand Brake Linkage

035 -1  Hand Brake Linkage
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CABLE, HAND BRAKE, FRONT
  36402-104001.6L   -   1
2ASSY-CABLE, HAND BRAKE, FRONT
  36402-25500ALL6703 -   1
3PIN-CLEVIS
  36428-04100ALL   -   2
4PIN-COTTER
  00921-11810ALL   -   2
5ASSY-SHAFT, IDLER, HAND BRAKE
  36550-104011.6L   -   1
6ASSY-SHAFT, IDLER, HAND BRAKE
  36550-25500ALL6703 -   1
7ASSY-BOSS, IDLER, HAND BRAKE
  36555-10400ALL   -   1
8KEY
  00928-31600ALL   -   1
9WASHER-PLAIN
  00915-41610ALL   -   1
10NUT
  00911-74610ALL   -   1
11PIN-COTTER
  00921-22200ALL   -   1
12BRACKET-IDLER SHAFT, HAND BRAKE
  36385-10400ALL   -   2
13BOLT
  00124-51810ALL   -   4
14WASHER-LOCK
  00915-11500ALL   -   4
15ASSY-CABLE, HAND BRAKE, MIDDLE
  36450-12900ALL   -   1
16PIN-CLEVIS
  36428-04100ALL   -   1
17PIN-COTTER
  00921-11810ALL   -   1
18ASSY-ARM, SWING, HAND BRAKE
  36510-04100ALL   -   1
19PIN-LINK ARM
  36425-04100ALL   -   1
20NUT-ADJUST
  36437-04100ALL   -   1
21NUT-LOCK
  00911-34410ALL   -   1
22PIN-CLEVIS
  36541-24000ALL   -   2
23PIN-CLEVIS
  36541-24000ALL   -   2
24PIN-COTTER
  00921-01810ALL   -   2
25RING SNAP, HAND BRAKE
  36471-04100ALL   -   2
26ASSY-CABLE, HAND BRAKE, REAR
  36451-14600ALL   -   1
27PIN-CLEVIS
  36541-24000ALL   -   1
28PIN-COTTER
  00921-01810ALL   -   1
29ASSY-SUPPORT, BRAKE BALANCE LEVER
  36511-15800ALL   -   1
30BOLT
  00124-52010ALL   -   2
31WASHER-PLAIN
  00915-41500ALL   -   2
32WASHER-LOCK
  00915-21500ALL   -   2
33NUT
  00911-24510     -   2
34CARRIER BALANCE LEVER
  36514-14600ALL   -   1
35RING-FELT, BALANCE LEVER
  36523-30000ALL   -   1
36NIPPLE-GREASE
  00932-30200ALL   -   1
37ROD-CROSS, HAND BRAKE, SHORT
  36530-146001.6L   -   1
38ROD-CROSS, HAND BRAKE, SHORT
  36530-14601ALL6703 -   1
39ROD-CROSS, HAND BRAKE, LONG
  36531-146001.6L   -   1
40ROD-CROSS, HAND BRAKE, LONG
  36531-14601ALL6703 -   1
41PIN-CLEVIS
  36541-24000ALL   -   2
42PIN-COTTER
  00921-01810ALL   -   2
43PIN-CLEVIS
  36538-30000ALL   -   2
44RING-FELT
  36543-30000ALL   -   4
45PIN-COTTER
  00921-01810ALL   -   2
46BRACKET-HANGER, CROSS ROD PULL OFF SPRING
  36544-30000ALL   -   1
47SCREW
  00314-01010ALL   -   2
48WASHER-LOCK
  00915-11000ALL   -   2
49NUT-SQUARE
  00913-14010ALL   -   2
50SPRING-PULL OFF, CROSS ROD
  36545-30000ALL   -   2
