Datsun Fairlady 1600/2000 Rear Brake

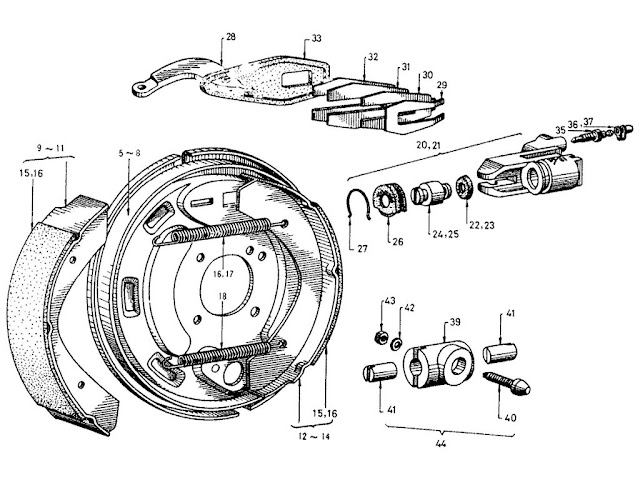

Datsun Fairlady Parts illustration no. 043-1 Rear Brake

043 -1  Rear Brake
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-BRAKE REAR RH
  44000-146001.6L   -   1
2ASSY-BRAKE REAR RH
  44000-25500ALL6703 -   1
3ASSY-BRAKE REAR LH
  44010-146001.6L   -   1
4ASSY-BRAKE REAR LH
  44010-25500ALL6703 -   1
5ASSY-DISC, REAR BRAKE RH
  44020-106001.6L   -   1
6ASSY-DISC, REAR BRAKE RH
  44020-25500ALL6703 -   1
7ASSY-DISC, REAR BRAKE LH
  44030-106001.6L   -   1
8ASSY-DISC, REAR BRAKE LH
  44030-25500ALL6703 -   1
9ASSY-SHOE,REAR BRAKE, FORE
  44060-105001.6L   -   2
10ASSY-SHOE,REAR BRAKE, FORE
  44060-16500ALL6703 -   2
11ASSY-SHOE,REAR BRAKE, FORE
  44060-14600OP ALL6703 -   2
12ASSY-SHOE,REAR BRAKE, AFTER
  44070-105001.6L   -   2
13ASSY-SHOE,REAR BRAKE, AFTER
  44070-16500ALL6703 -   2
14ASSY-SHOE,REAR BRAKE, AFTER
  44070-14600OP ALL6703 -   2
15LINING-BRAKE (R40)
  41066-10500ALL   -   4
16LINING-BRAKE (AH-4)
  44066-14600OP ALL   -   4
17SPRING-RETURN, BRAKE-SHOE, CYLINDER SIDE
  44070-300011.6L   -   2
18SPRING-RETURN, BRAKE-SHOE, CYLINDER SIDE
  44090-16505ALL6703 -   2
19SPRING-RETURN, BRAKE-SHOE, ADJUSTER SIDE
  44071-300011.6L   -   2
20ASSY-CYLINDER, REAR WHEEL (13/16) (NABCO)
  44100-146001.6L   -   2
21ASSY-CYLINDER, REAR WHEEL (13/16) (NABCO)
  44100-25500ALL6703 -   2
22CUP-PISTON
  44112-U40001.6L   - 67022
23CUP-PISTON
  44112-P0211ALL6703 -   2
24PISTON-REAR WHEEL
  44108-146001.6L   - 67022
25PISTON-REAR WHEEL
  44108-73400ALL6703 -   2
26COVER-DUST, A
  44124-31700ALL   -   2
27RING-SNAP
  44113-31700ALL   -   2
28ASSY-LEVER
  44118-30001ALL   -   2
29SHIM-AJUSTING, A
  44141-U4000ALL   -   2
30SHIM-AJUSTING, B
  44142-31710ALL   -   2
31PLATE A
  44149-31710ALL   -   2
32PLATE B
  44150-31700ALL   -   2
33COVER-DUST
  44144-31700ALL   -   2
34GASKET
  44131-14600ALL   -   2
35SCREW-BLEEDER
  41128-30001ALL   -   2
36CAP-BLEEDER
  41129-40F00 ALL   -   2
37CAP-BLEEDER
  41129-40F00ALL   -   2
38ASSY-HOUSING, BRAKE SHOE ADJUSTER
  44202-184001.6L   -   2
39ASSY-HOUSING, BRAKE SHOE ADJUSTER
  44202-18400ALL   -   2
40WEDGE-ADJUSTER
  44084-30000ALL   -   2
41TAPPET-ADJUSTER
  44205-10500ALL   -   4
42WASHER-LOCK
  00915-11410ALL   -   4
43NUT
  00911-14410ALL   -   4
44ASSY-ADJUSTER, REAR BRAKE (INC. 20,21,22)
  44200-18400ALL   -   2
45KIT-A, REAR WHEEL CYLINDER
  44100-146261.6L   - 67021

  D4100-73425ALL6703 -   1
46KIT-B, REAR WHEEL CYLINDER
  44100-146261.6L6703 -   1

  D4100-73425ALL6703 -   1
ASSY-LEVER PLATE A SHIM-AJUSTING, B SHIM-AJUSTING, A ASSY-SHOE,REAR BRAKE, FORE LINING-BRAKE (R40) / LINING-BRAKE (AH-4) ASSY-DISC, REAR BRAKE RH / ASSY-DISC, REAR BRAKE LH PISTON-REAR WHEEL COVER-DUST, A RING-SNAP SPRING-RETURN, BRAKE-SHOE, CYLINDER SIDE LINING-BRAKE (R40) / LINING-BRAKE (AH-4) WEDGE-ADJUSTER TAPPET-ADJUSTER WASHER-LOCK SCREW-BLEEDER COVER-DUST PLATE B ASSY-CYLINDER, REAR WHEEL (13/16) (NABCO) CUP-PISTON LINING-BRAKE (AH-4) / SPRING-RETURN, BRAKE-SHOE, CYLINDER SIDE ASSY-SHOE,REAR BRAKE, AFTER ASSY-ADJUSTER, REAR BRAKE (INC. 20,21,22) TAPPET-ADJUSTER NUT ASSY-HOUSING, BRAKE SHOE ADJUSTER CAP-BLEEDER CAP-BLEEDER
