Datsun Fairlady 1600/2000 Alternator (Emission Control)

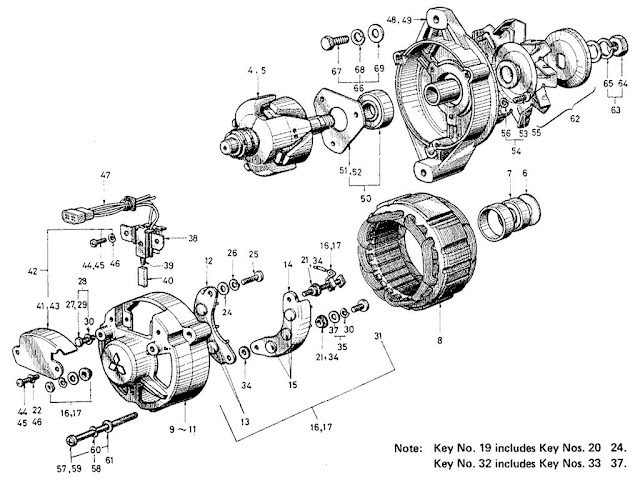

Datsun Fairlady Parts illustration no. 019A-1 Alternator (Mitsubishi) Emission Control

019A -1  Alternator (Mitsubishi) Emission Control
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-ALTERNATOR (MITSUBISHI) (12V-300W)
  23100-20115 2L   -   1
2ASSY-ALTERNATOR (MITSUBISHI) (12V-300W)
  23100-201152L   -   1
3ASSY-ALTERNATOR (MITSUBISHI) (12V-300W) (ISO)
  23100-201151.6L EMISSION CONTROL & 2L   -   1
4ASSY-ROTOR (ARMATURE)
  23108-167101.6L EMISSION CONTROL & 2L   -   1
5ROTOR (ARMATURE)
  23108-201101.6L EMISSION CONTROL & 2L   -   1
6WASHER-SEAL
  23116-146101.6L EMISSION CONTROL & 2L   -   1
7BEARING-BALL
  23120-146101.6L EMISSION CONTROL & 2L   -   1
8ASSY-STATOR
  23102-167101.6L EMISSION CONTROL & 2L   -   1
9BRACKET G ASSY REAR
  23127-201161.6L EMISSION CONTROL & 2L   -   1
10ASSY-COVER, REAR
  23127-201102L   -   1
11ASSY-COVER, REAR (ISO)
  23127-201151.6L EMISSION CONTROL & 2L   -   1
12DIODE-SET (-)
  23230-180101.6L EMISSION CONTROL & 2L   -   1
13DIODE MINUS
  23231-612102L   -   3
14DIODE-SET (+)
  23230-180111.6L EMISSION CONTROL & 2L   -   1
15DIODE PLUS
  23232-612102L   -   3
16ASSY-TERMINAL A
  23156-201102L   -   1
17ASSY-TERMINAL A (ISO)
  23156-201151.6L EMISSION CONTROL & 2L   -   1
18PLATE-TERMINAL
  23162-201101.6L EMISSION CONTROL & 2L   -   1
19TERMINAL, ASSY A
  23156-201161.6L EMISSION CONTROL & 2L   -   1
20BOLT 5 X 36
  23148-167151.6L EMISSION CONTROL & 2L   -   1
21INSULATOR
  23161-180101.6L EMISSION CONTROL & 2L   -   2
22WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   2
23NUT
  23189-167151.6L EMISSION CONTROL & 2L   -   2
24WASHER-PLAIN
  22213-180101.6L EMISSION CONTROL & 2L   -   3
25SCREW-TERMINAL 5 X 12
  23158-180101.6L EMISSION CONTROL & 2L   -   1
26WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   1
27BOLT-TERMINAL E 5 X 6
  23139-122102L   -   1
28TERMINAL ASSY E
  23158-210151.6L EMISSION CONTROL & 2L   -   1
29BOLT-TERMINAL E 5 X 6 (ISO)
  23139-167151.6L EMISSION CONTROL & 2L   -   1
30WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   1
31SCREW-TERMINAL 5 X 20
  23158-180112L   -   1
32SCREW ASSY AE
  23147-167161.6L EMISSION CONTROL & 2L   -   1
33SCREW 5 X 20 (ISO)
  23147-167151.6L EMISSION CONTROL & 2L   -   1
34INSULATOR
  23161-180101.6L EMISSION CONTROL & 2L   -   1
35ASSY-SCREW AE
  23186-H01111.6L EMISSION CONTROL & 2L   -   1
36WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   1
37WASHER-PLAIN
  22213-180101.6L EMISSION CONTROL & 2L   -   1
38ASSY-HOLDER, BRUSH
  23133-201101.6L EMISSION CONTROL & 2L   -   1
39SPRING-BRUSH
  23138-180101.6L EMISSION CONTROL & 2L   -   2
40BRUSH
  23135-146101.6L EMISSION CONTROL & 2L   -   2
41COVER-BRUSH
  23107-201102L   -   1
42COVER SET
  23107-201111.6L EMISSION CONTROL & 2L   -   1
43COVER-BRUSH (ISO)
  23107-201151.6L EMISSION CONTROL & 2L   -   1
44SCREW 4 X 8
  23139-122112L   -   4
45SCREW 4 X 8 (ISO)
  22104-146151.6L EMISSION CONTROL & 2L   -   4
46WASHER-SPRING
  22156-013021.6L EMISSION CONTROL & 2L   -   4
47ASSY-WIRE LEAD
  23136-201101.6L EMISSION CONTROL & 2L   -   1
48ASSY-COVER, ALTERNATOR FRONT
  23118-180102L   -   1
49ASSY-COVER, ALTERNATOR FRONT (ISO)
  23118-167151.6L EMISSION CONTROL & 2L   -   1
50BEARING-BALL
  23120-146111.6L EMISSION CONTROL & 2L   -   1
51RETAINER-BEARING
  23123-180102L   -   1
52RETAINER-BEARING (ISO)
  23123-167151.6L EMISSION CONTROL & 2L   -   1
53SCREW-TERMINAL 5 X 16
  23158-146102L   -   3
54SCREW-ASSY BEARING
  23115-210151.6L EMISSION CONTROL & 2L   -   3
55SCREW-TERMINAL 5 X 16 (ISO)
  23158-167161.6L EMISSION CONTROL & 2L   -   3
56WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   3
57SCREW 5 X 76
  23131-167102L   -   3
58BOLT-SET, THROUGH
  23131-167161.6L EMISSION CONTROL & 2L   -   3
59SCREW 5 X 76 (ISO)
  23131-167151.6L EMISSION CONTROL & 2L   -   3
60WASHER-SPRING
  22203-322101.6L EMISSION CONTROL & 2L   -   3
61WASHER-PLAIN
  22213-180101.6L EMISSION CONTROL & 2L   -   3
62ASSY-PULLEY
  23150-201101.6L EMISSION CONTROL & 2L   -   1
63NUT-PULLEY
  23153-210101.6L EMISSION CONTROL & 2L   -   1
64NUT-PULLEY
  23153-210101.6L EMISSION CONTROL & 2L   -   1
65WASHER-SPRING
  23152-122101.6L EMISSION CONTROL & 2L   -   1
66BOLT SETTING 8 X 25
  23164-122101.6L EMISSION CONTROL & 2L   -   1
  23164-216101.6L EMISSION CONTROL & 2L   -   1
67BOLT SETTING 8 X 25
  23164-122101.6L EMISSION CONTROL & 2L   -   1
68WASHER-SPRING
  23109-350101.6L EMISSION CONTROL & 2L   -   1
69WASHER
  23160-167101.6L EMISSION CONTROL & 2L   -   1
