Datsun 311 Index

R16 Exc. Emission Control

Datsun Fairlady 1600 (R16) Alternator (Exc. Emission Control)

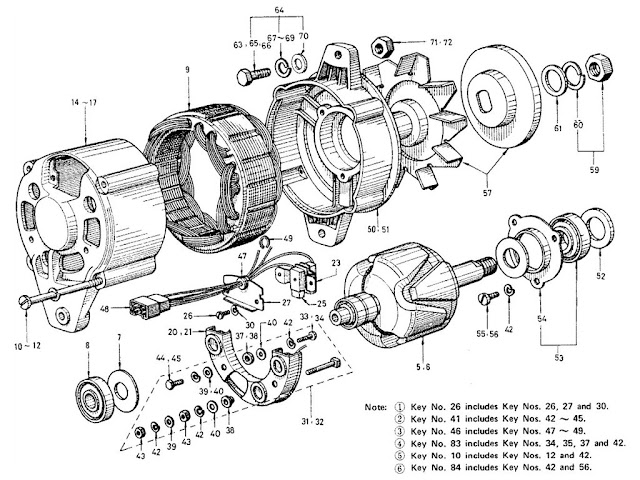

Datsun Fairlady Parts illustration no. 019-1 Alternator (Mitsubishi) (1600) Exc. Emission Control

019 -1 Alternator (Mitsubishi) (1600) Exc. Emission Control

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	ASSY-ALTERNATOR (MITSUBISHI 12V-300W)
	23100-14615	1.6L		-		1

2	ASSY-ALTERNATOR (MITSUBISHI 12V-300W) (AC300/12 X 1R)
	23100-14615	1.6L		-		1

3	ASSY-ALTERNATOR (MITSUBISHI 12V-300W) (AC300/12 X 2R)
	23100-14615	1.6L		-		1

4	ASSY-ALTERNATOR (MITSUBISHI 12V-300W) (ISO)
	23100-14615	1.6L (EXC EMISSION CONTROL)		-		1

5	ASSY-ROTOR (ARMATURE)
	23108-14610	1.6L		-		1

6	ASSY-ROTOR (ARMATURE)
	23108-16512	1.6L (EXC EMISSION CONTROL)		-		1

7	WASHER-SEAL
	23116-14610	1.6L (EXC EMISSION CONTROL)		-		1

8	BEARING-BALL
	23120-14610	1.6L (EXC EMISSION CONTROL)		-		1

9	ASSY-STATOR
	23102-16710	1.6L (EXC EMISSION CONTROL)		-		1

10	BOLT SET THROUGH
	23131-14616	1.6L (EXC EMISSION CONTROL)		-		1

11	BOLT-THROUGH
	23131-14610	1.6L		-		4

12	BOLT-THROUGH (ISO)
	23131-14615	1.6L (EXC EMISSION CONTROL)		-		4

13	ASSY-COVER, REAR
	23127-14611	1.6L		-		1

14	ASSY-COVER, REAR
	23127-14611	1.6L		-		1

15	ASSY-COVER, REAR
	23127-14612	1.6L		-		1

16	ASSY-COVER, REAR
	23127-14611	1.6L (EXC EMISSION CONTROL)		-		1

17	ASSY-COVER, REAR
	23127-14611	1.6L (EXC EMISSION CONTROL)		-		1

18	BRACKET G ASSY REAR
	23127-14616	1.6L (EXC EMISSION CONTROL)		-		1

19	ASSY-DIODE, SET
	23230-14611	1.6L		-		1

20	ASSY-DIODE, SET
	23230-14611	1.6L (EXC EMISSION CONTROL)		-		1

21	DIODE MINUS
	23231-61210	1.6L		-		3

22	DIODE PLUS
	23232-61210	1.6L		-		3

23	ASSY-HOLDER, BRUSH
	23133-14610	1.6L (EXC EMISSION CONTROL)		-		1

24	SPRING-BRUSH
	23138-18010	1.6L (EXC EMISSION CONTROL)		-		2

25	ASSY-BRUSH
	23135-14610	1.6L (EXC EMISSION CONTROL)		-		2

26	SCREW ASSY
	23107-14615	1.6L (EXC EMISSION CONTROL)		-		1

27	COVER-BRUSH
	23107-14610	1.6L (EXC EMISSION CONTROL)		-		1

28	SCREW 4 X 10
	23352-09610	1.6L		-		2

29	SCREW 4 X 10 (ISO)
	23132-16715	1.6L (EXC EMISSION CONTROL)		-		2

30	WASHER-SPRING
	22156-01302	1.6L (EXC EMISSION CONTROL)		-		2

31	ASSY-TERMINAL
	23156-14610	1.6L		-		1

32	ASSY-TERMINAL (ISO)
	23156-14615	1.6L (EXC EMISSION CONTROL)		-		1

33	SCREW-TERMINAL
	23158-14610	1.6L		-		1

34	SCREW-TERMINAL 5 X 16 (ISO)
	23158-16716	1.6L (EXC EMISSION CONTROL)		-		1

35	WASHER-INSULATOR
	23160-14610	1.6L (EXC EMISSION CONTROL)		-		1

36	INSULATOR
	23161-14611	1.6L		-		1

37	INSULATOR
	23161-14611	1.6L (EXC EMISSION CONTROL)		-		1

38	INSULATOR
	23157-14610	1.6L (EXC EMISSION CONTROL)		-		1

39	WASHER-PLAIN
	22213-71311	1.6L		-		1

40	WASHER-PLAIN (ISO)
	22213-18010	1.6L (EXC EMISSION CONTROL)		-		3

41	TERMINAL ASSY E
	23158-21015	1.6L (EXC EMISSION CONTROL)		-		1

42	WASHER-SPRING
	22203-32210	1.6L (EXC EMISSION CONTROL)		-		5

43	NUT (ISO)
	23189-16715	1.6L (EXC EMISSION CONTROL)		-		2

44	BOLT-TERMINAL (E)
	23139-12210	1.6L		-		1

45	BOLT-TERMINAL (E) 5 X 8 (ISO)
	23139-16715	1.6L (EXC EMISSION CONTROL)		-		1

46	CONNECTOR G ASSY
	23136-14611	1.6L (EXC EMISSION CONTROL)		-		1

47	GROMMET
	23159-14610	1.6L		-		1

48	ASSY-WIRE LEAD
	23136-14610	1.6L (EXC EMISSION CONTROL)		-		1

49	CLIP
	23233-14610	1.6L		-		1

50	ASSY-COVER, ALTERNATOR FRONT
	23118-14610	1.6L		-		1

51	ASSY-COVER, ALTERNATOR FRONT (ISO)
	23118-14615	1.6L (EXC EMISSION CONTROL)		-		1

52	WASHER-SEAL
	23121-14610	1.6L (EXC EMISSION CONTROL)		-		1

53	BEARING-BALL
	23120-14611	1.6L (EXC EMISSION CONTROL)		-		1

54	RETAINER-BEARING
	23123-14610	1.6L (EXC EMISSION CONTROL)		-		1

55	SCREW
	23352-12210	1.6L		-		3

56	SCREW (ISO)
	23158-16715	1.6L (EXC EMISSION CONTROL)		-		3

57	ASSY-PULLEY
	23151-14610	1.6L (EXC EMISSION CONTROL)		-		1

58	WASHER-SPRING
	23152-12210	1.6L		-		1

59	NUT ASSY,PULLEY
	23153-14610	1.6L (EXC EMISSION CONTROL)		-		1

60	WASHER-SPRING (ISO)
	23152-35010	1.6L (EXC EMISSION CONTROL)		-		1

61	WASHER-PLAIN
	23162-12210	1.6L		-		1

62	NUT-PULLEY
	23153-21010	1.6L (EXC EMISSION CONTROL)		-		1

63	BOLT-ALTERNATOR TO BRACKET FIX
	23139-12900	1.6L		-	6702	1

64	BOLT-SETTING 8 X 25
	23164-12210	1.6L (EXC EMISSION CONTROL)		-		1

65	BOLT ALTERNATOR TO BRACKET FIX
	23139-18810	1.6L	6703	-		1

66	BOLT SETTING 8 X 25
	23164-12210	1.6L		-		1

67	WASHER-LOCK ALTERNATOR TO BRACKET FIX
	00915-11510	1.6L		-	6702	1

68	WASHER-SPRING ALTERNATOR TO BRACKET FIX
	08915-1381A	1.6L	6703	-		1

69	WASHER-SPRING
	23109-35010	1.6L		-		1

70	WASHER-PLAIN
	23160-16710	1.6L		-		1

71	NUT-ALTERNATOR TO BRACKET FIX
	00911-24510	1.6L		-	6702	1

72	NUT
	08911-60800	1.6L	6703	-		1

73	WASHER-PLAIN
	08915-4381A	1.6L	6703	-		1

74	BOLT-BRACKET TO CYLINDER BLOCK
	00134-62510	1.6L		-	6702	3

75	BOLT-BRACKET TO CYLINDER BLOCK
	08131-0251A	1.6L	6703	-		3

76	WASHER-SPRING
	00915-21610	1.6L		-	6702	3

77	WASHER-SPRING
	08915-2401A	1.6L	6703	-		3

78	NUT-ADJUST BAR TO CYLINDER HEAD
	00911-24610	1.6L		-	6702	1

79	NUT-ADJUST BAR TO CYLINDER HEAD
	08911-2401A	1.6L	6703	-		1

80	NUT-ADJUST BAR TO CYLINDER HEAD
	08911-2401A	1.6L	6703	-		1

81	WASHER-SPRING, ADJUST BAR TO HEAD
	00915-11610	1.6L		-	6702	1

82	WASHER-SPRING, ADJUST BAR TO HEAD
	08915-2401A	1.6L	6703	-		1

83	SCREW ASSY AE
	23158-14611	1.6L (EXC EMISSION CONTROL)		-		1

84	SCREW ASSY SETTING
	23115-66615	1.6L (EXC EMISSION CONTROL)		-		1

Datsun Fairlady illustration no. 019-1 Alternator (Mitsubishi) (1600) Exc. Emission Control

Alternator (Mitsubishi) (1600) Exc. Emission Control
