Datsun Fairlady 1600/2000 Electric Unit & Switch Parts

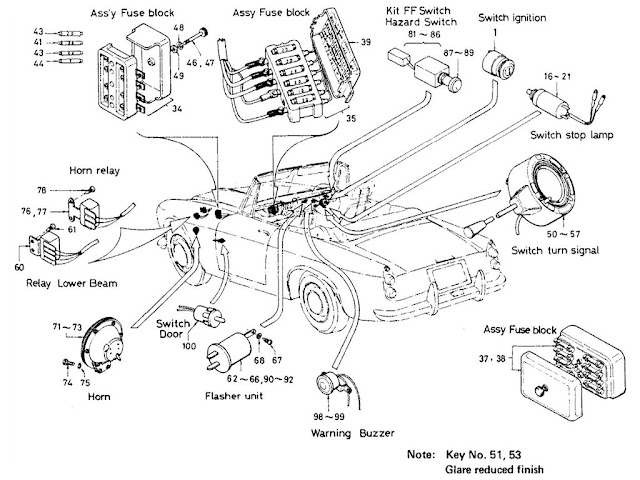

Datsun Fairlady Parts illustration no. 022A-1 Electric Unit

022A -1  Electric Unit
KeyPart No.ModelApplied DateQty
FromTo
1COMP-SWITCH, IGNITION WITH KEY
  25150-122001.6L   - 67021
2COMP-SWITCH, LIGHTING
  B5160-615001.6L   - 67021
3COMP-SWITCH, LIGHTING
  B5160-61500ALL6703 - 67091
4COMP-SWITCH, LIGHTING
  25160-A7400ALL6710 - 68091
5COMP-SWITCH, LIGHTING
  25160-A7400ALL6810 -   1
6COMP-SWITCH, LIGHTING
  25160-A7400ALL6907 -   1
7KNOB-LIGHTING SWITCH
  25165-A7400ALL6710 -   1
8KNOB-LIGHTING SWITCH
  25165-A7400ALL6907 -   1
9COMP-SWITCH, WIPER MOTOR
  B5160-615001.6L   - 67021
10SWITCH-WIPER & WASHER
  B5260-24100ALL6703 - 67091
11COMP-SWITCH, WIPER & WASHER
  25260-A7400ALL6710 -   1
12COMP-SWITCH, WIPER & WASHER
  25260-A7400ALL6907 -   1
13KNOB-WIPER & WASHER SWITCH
  25265-13200ALL   - 67091
14KNOB-WIPER & WASHER
  25265-A7400ALL6710 -   1
15KNOB-WIPER & WASHER
  25265-A7400ALL6907 -   1
16COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-89901 1.6L   -   1
17COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-899011.6L   -   1
18COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-H1000 ALL   -   1
19COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-H1000 ALL   -   1
20COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-H1000 ALL   -   1
21COMP-SWITCH, STOP LAMP FOR TANDEM BRAKE CYLINDER
  25320-H1000ALL   -   1
22COMP-SWITCH, FOG LAMP
  25370-61501OP 1.6L   -   1
23COMP-SWITCH, FOG LAMP
  25370-61501OP ALL6703 -   1
24ASSY-KNOB, CIGARETTE LIGHTER
  25330-10600ALL   - 67091
25ASSY-KNOB, CIGARETTE LIGHTER
  25330-A7400ALL6710 -   1
26ASSY-KNOB, CIGARETTE LIGHTER
  25330-A7400ALL6907 -   1
27ASSY-KNOB, CIGARETTE LIGHTER
  25330-10600ALL   - 67091
28ASSY-KNOB, CIGARETTE LIGHTER
  B5330-10602ALL   - 67091
29ASSY-KNOB, CIGARETTE LIGHTER
  25335-89950ALL6710 -   1
30ASSY-KNOB, CIGARETTE LIGHTER
  25335-89950ALL6907 -   1
31ASSY-KNOB, CIGARETTE LIGHTER
  25335-A7400ALL   -   1
32ASSY-KNOB, CIGARETTE LIGHTER
  25335-A7400ALL   -   1
33ASSY-KNOB, CIGARETTE LIGHTER
  25335-A7400ALL6907 -   1
34ASSY-BLOCK, FUSE
  25410-14600ALL   - 67091
35ASSY-BLOCK, FUSE
  25410-22000ALL6710 - 68091
36ASSY-BLOCK, FUSE
  25410-A3251 ALL6810 -   1
37ASSY-BLOCK, FUSE
  25410-A3251R DRIVE6810 -   1
38ASSY-BLOCK, FUSE
  25410-A3251L DRIVE6810 -   1
39COVER-FUSE BLOCK
  25415-22000ALL6710 -   1
40FUSE-30A
  25463-89901ALL   -   1
41FUSE-30A
  25463-89901ALL   -   1
42FUSE-20A
  08941-12000ALL   -   2
43FUSE-20A
  08941-12000ALL   -   2
44FUSE 20A
  08941-12000ALL   -   2
45FUSE-8A
  08941-10800ALL   -   1
46SCREW TO FIX FUSE BLOCK
  00314-02210ALL   - 68092
47SCREW TO FIX FUSE BLOCK
  00314-02510ALL6810 -   2
48WASHER-LOCK TO FIX FUSE BLOCK
  00915-11010ALL   - 68092
49WASHER-PLAIN TO FIX FUSE BLOCK
  00915-41010ALL   -   2
50SWITCH-TURN & DIMMER
  25540-12900SP, SR   - 66091
  B5540-12900SP, SR6610 - 67091
51SWITCH-TURN & DIMMER
  B5540-12900SP, SR6610 - 67091
52SWITCH-TURN & DIMMER
  B5540-13000SPL, SRL   - 67091
53SWITCH-TURN & DIMMER
  B5540-13000SPL, SRL6610 - 67091
54SWITCH-TURN & DIMMER
  25540-25900ALL (EXC EUROPE)6710 -   1
55SWITCH-TURN, DIMMER & PASSING SIGNAL
  25540-25901EUROPE6710 -   1
56SWITCH-TURN & DIMMER
  25540-25900ALL (EXC USA)6810 -   1
57SWITCH-TURN & DIMMER
  25540-A3200USA6810 -   1
58COMP-RELAY, LOWER BEAM
  B5230-28000 ALL   -   1
59COMP-RELAY, LOWER BEAM
  B5230-28000ALL   -   1
60COMP-RELAY, LOWER BEAM
  25230-89905ALL6810 -   1
61SCREW TO FIX RELAY
  00511-21010ALL   -   2
62ASSY-FLASHER UNIT (12V)
  B5520-89993ALL (EXC AUSTRALIA)   -   1
63ASSY-FLASHER UNIT (12V), AUDIBLE
  B5520-89993SP, SR (AUSTRALIA )   -   1
64ASSY FLASHER UNIT 4WAY
  25520-89911ALL (EXC USA & CANADA)6810 -   1
65ASSY FLASHER UNIT
  25520-B8060USA & CANADA6810 -   1
66ASSY FLASHER UNIT 4WAY
  25520-89910USA & CANADA6810 -   1
67SCREW TO FIX FLASHER UNIT
  00314-01010ALL   -   1
68WASHER-LOCK TO FIX FLASHER UNIT
  00915-11010ALL   -   1
69ASSY-HORN, HIGH
  26310-146011.6L   -   1
70ASSY-HORN, HIGH
  26310-14601ALL6703 -   1
71ASSY-HORN, LOW
  B6330-14602 1.6L   -   1
72ASSY-HORN, LOW
  B6330-14602 1.6L   -   1
73ASSY-HORN, LOW
  B6330-14602ALL6703 -   1
74BOLT TO FIX HORN
  00114-52210ALL   -   4
75WASHER-LOCK TO FIX HORN
  00915-11510ALL   -   4
76ASSY-RELAY, HORN
  26320-14800ALL   -   1
77ASSY-RELAY, HORN
  B5230-E4185ALL   -   1
78SCREW TO FIX RELAY
  00511-21010S.U.L.   -   2
79KIT-FLASHER 4WAY
  25595-14610OP SP, SR   -   1
80KIT-FLASHER 4 WAY
  25595-14611OP SP SR   -   1
81SWITCH-HAZARD WARNING
  B5910-A7500OP ALL   - 67091
82SWITCH-HAZARD WARNING
  B5910-A7500 OP ALL6710 - 68091
83SWITCH-HAZARD WARNING
  B5910-A7500 OP ALL (EXC USA & CANADA)6810 -   1
84SWITCH-HAZARD WARNING
  B5910-A7500OP ALL (EXC USA & CANADA)6907 -   1
85SWITCH-HAZARD WARNING
  25596-A7800USA & CANADA6810 -   1
  25596-A3300USA & CANADA6907 -   1
86SWITCH-HAZARD WARNING
  25596-A3300USA & CANADA6907 -   1
87KNOB-HAZARD WARNING SWITCH
  25165-25600OP ALL   - 67091
88KNOB-HAZARD WARNING SWITCH
  25595-B0100OP ALL6710 -   1
89KNOB-HAZARD WARNING SWITCH
  25595-B0100OP ALL6907 -   1
90ASSY-UNIT, FLASHER
  25520-89911OP SP, SR (EXC AUSTRALIA), SPL, SRL   -   1
91ASSY-UNIT, FLASHER
  25520-89911OP SP, SR (EXC AUSTRALIA), SPL, SRL   -   1
92ASSY-UNIT, FLASHER, AUDIBLE
  25520-74100OP AUSTRALIA ONLY   -   1
93HARNESS-HAZARD
  25597-14611OP SP SR   -   1
94SWITCH-BRAKE WARNING
  25810-25901ALL6710 -   1
95SWITCH-BRAKE WARNING
  25810-25901ALL   -   1
96SWITCH-BRAKE WARNING
  25810-25901ALL   -   1
97KNOB-BRAKE WARNING
  B5815-25900ALL6710 -   1
98WARNING-BUZZER DOOR
  24814-A7800USA & CANADA6907 -   1
99WARNING-BUZZER DOOR
  24814-A7801USA & CANADA   -   1
100SWITCH-DOOR
  25360-N4400USA & CANADA6907 -   1
