Datsun Fairlady 1600/2000 Head Lamp

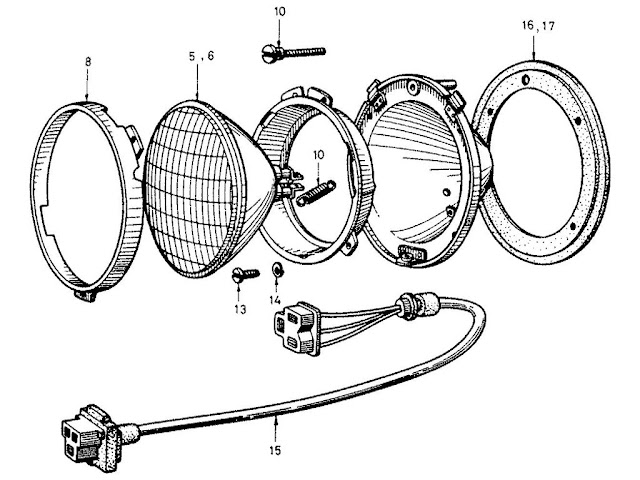

Datsun Fairlady Parts illustration no. 025-1 Head Lamp

025 -1  Head Lamp
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-LAMP, HEAD (ICHIKAWA)
  26010-14601SP, SR   -   2
2ASSY-LAMP, HEAD (ICHIKAWA)
  26010-14701SPL, SRL   -   2
3ASSY-LAMP, HEAD (KOITO)
  26010-A7400SP, SR   -   2
4ASSY-LAMP, HEAD (KOITO)
  26010-14701SPL, SRL   -   2
5UNIT-SEALED BEAM
  26705-04101SP   -   2
6UNIT-SEALED BEAM
  26705-89925SPL   -   2
7RING-RETAINING, LENS
  26023-89910 ALL   -   2
8RING-RETAINING, LENS
  26023-89910ALL   -   2
9RING-RETAINING, LENS
  26017-14801ALL   -   2
10SCREW ADJUSTING
  26022-19900ALL   -   2
11SPRING-TENSION
  26024-H1011ALL   -   2
12SPRING-TENSION
  26024-H1011ALL   -   2
13SCREW
  26022-04100ALL   -   2
14WASHER-LOCK
  00915-11010ALL   -   2
15ASSY-CABLE CONNECTOR HEAD LAMP
  26031-12900ALL   -   2
16SHEET-HEAD LAMP
  26027-14801ALL   -   2
17SHEET-HEAD LAMP
  26027-14801ALL   -   2
UNIT-SEALED BEAM RING-RETAINING, LENS SCREW ADJUSTING SCREW WASHER-LOCK SHEET-HEAD LAMP SCREW ADJUSTING ASSY-CABLE CONNECTOR HEAD LAMP
UNIT-SEALED BEAM RING-RETAINING, LENS SCREW ADJUSTING SCREW WASHER-LOCK SHEET-HEAD LAMP SCREW ADJUSTING ASSY-CABLE CONNECTOR HEAD LAMP
