Datsun 311 Index Electrical Meter, Tube & Oil Pressure Gauge
Login

Datsun Fairlady 1600/2000 Speedometer, Tachometer & Gauges

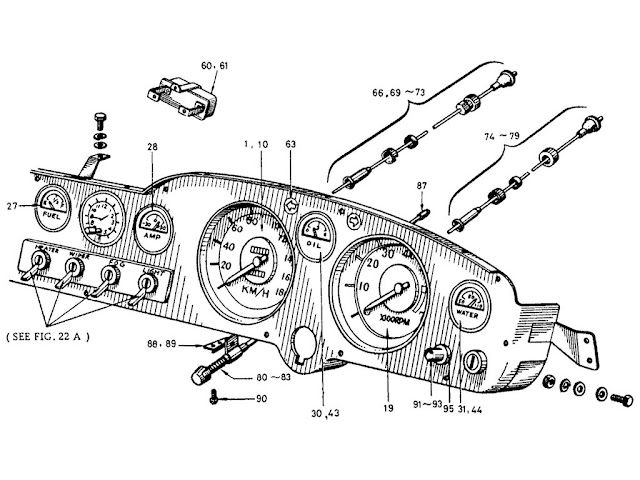

Datsun Fairlady Parts illustration no. 023-1 Meter (To 1967)

023 -1  Meter (To 1967)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-SPEEDOMETER (KM)
  25050-129001.6L (KM AREA)   - 67021
2ASSY-SPEEDOMETER (KM)
  25050-146111.6L (KM AREA)6703 - 67091
3ASSY-SPEEDOMETER (180 KM)
  25050-14612SP6710 - 68091
4ASSY-SPEEDOMETER (180 KM)
  25050-14712SPL6710 - 68091
5ASSY-SPEEDOMETER (240 KM)
  25050-255012L (KM AREA)6710 - 68091
6ASSY-SPEEDOMETER (240 KM)
  25050-25900SR6710 - 68091
7ASSY-SPEEDOMETER (240 KM)
  25050-A3303 SRL6710 -   1
8ASSY-SPEEDOMETER (240 KM)
  25050-A3303SP, SR6810 -   1
9ASSY-SPEEDOMETER (240 KM)
  25050-A3303SPL, SRL, SPLU, SRLU6810 -   1
10ASSY-SPEEDOMETER (MILES)
  25050-130001.6L (MILE AREA)   - 67021
11ASSY-SPEEDOMETER (MILES)
  25050-147111.6L (MILE AREA)6703 - 67091
12ASSY-SPEEDOMETER (120 MILES)
  25050-14613SP6710 -   1
13ASSY-SPEEDOMETER (120 MILES)
  25050-14713SPL, SPLU6710 -   1
14ASSY-SPEEDOMETER (MILES)
  25050-256012L (MILE AREA)   - 67091
15ASSY-SPEEDOMETER (160 MILES)
  25050-25901SR6710 -   1
16ASSY-SPEEDOMETER (160 MILES)
  25050-A3302 SRL, SRLU6710 -   1
17ASSY-SPEEDOMETER (140 MILES)
  25050-A3302SP, SR6810 -   1
18ASSY-SPEEDOMETER (140 MILES)
  25050-A3302SPL, SRL, SPLU, SRLU6810 -   1
19ASSY-TACHOMETER
  25052-146001.6L   - 67021
20ASSY-TACHOMETER
  25052-146111.6L6703 - 67091
21ASSY-TACHOMETER
  25052-A32031.6L6710 -   1
22ASSY-TACHOMETER
  25052-A32031.6L6810 -   1
23ASSY-TACHOMETER
  25052-255012L   - 67091
24ASSY-TACHOMETER
  25052-A32022L6710 -   1
25ASSY-TACHOMETER
  25052-A32022L6810 -   1
26BRACKET-METER MOUNTING
  25040-12900ALL   -   1
27GAUGE-FUEL DASH
  24860-146001.6L   - 67021
28ASSY-AMMETER
  25065-129001.6L   - 67021
29GAUGE-COMBI, FUEL & AMMETER
  25065-25500ALL6703 - 67091
30GAUGE-OIL PRESSURE, DASH
  25070-129001.6L (KM AREA)   - 67021
31GAUGE-WATER TEMP, DASH
  24880-146011.6L (KM AREA)   - 67021
32GAUGE-COMBI, OIL & WATER
  25070-25500ALL (KM AREA)6703 - 67091
33COMBINED GAUGES
  25070-A3202R DRIVE (KM AREA)6710 -   1
34COMBINED GAUGES
  25070-A3202R DRIVE (KM AREA)6810 -   1
35COMBINED GAUGES
  25070-A3303L DRIVE (KM AREA)6710 -   1
36COMBINED GAUGES
  25070-A3303L DRIVE (KM AREA)6810 -   1
37ASSY-AMMETER
  24845-25900ALL (KM AREA)6710 -   1
38GAUGE-FUEL DASH
  24860-25900ALL (KM AREA)6710 -   1
39GAUGE-OIL PRESSURE DASH
  24870-25900ALL (KM AREA)6710 -   1
40GAUGE-WATER TEMP, DASH
  25070-A3303 ALL (KM AREA)6710 -   1
41COMBINED GAUGES
  25070-A3303R DRIVE (KM AREA)6810 -   1
42COMBINED GAUGES
  25070-A3303L DRIVE (KM AREA)6810 -   1
43GAUGE-OIL PRESSURE, DASH
  25070-130001.6L (MILE AREA)   - 67021
44GAUGE-WATER TEMP, DASH
  24880-147011.6L (MILE AREA)   - 67021
45GAUGE-COMBI, OIL & WATER
  25070-25600ALL (MILE AREA)6703 - 67091
46COMBINED GAUGES
  25070-A3203R DRIVE (MILE AREA)6710 -   1
47COMBINED GAUGES
  25070-A3203R DRIVE (MILE AREA)6810 -   1
48COMBINED GAUGES
  25070-A3302L DRIVE (MILE AREA)6710 -   1
49COMBINED GAUGES
  25070-A3302L DRIVE (MILE AREA)6810 -   1
50ASSY-AMMETER
  24845-25900ALL (MILE AREA)6710 -   1
51GAUGE-FUEL DASH
  24860-25900ALL (MILE AREA)6710 -   1
52GAUGE-OIL PRESSURE
  24870-26000ALL (MILE AREA)6710 -   1
53GAUGE-WATER TEMP, DASH
  25070-A3302 ALL (MILE AREA)6710 -   1
54COMBINED GAUGES
  25070-A3302R DRIVE (MILE AREA)6810 -   1
55COMBINED GAUGES
  25070-A3302L DRIVE (MILE AREA)6810 -   1
56ASSY-GAUGE OIL PRESSURE, ENGINE STOP
  25078-32200ALL   -   1
57COMP-TRANSMITTER, THERMAL, ENGINE SIDE
  25080-62200ALL   -   1
58NUT-GRAND, THERMAL (SENDER)
  25251-301001.6L   -   1
59NUT-GRAND, THERMAL (SENDER)
  25251-37700ALL6703 -   1
60REGULATOR-VOLT, FUEL & WATER GAUGE
  25020-14600ALL   - 67091
61REGULATOR-VOLT, FUEL & WATER GAUGE
  25020-47600ALL6710 -   1
62BRACKET-GAUGE MOUNTING
  25041-129001.6L   - 67022
63ASSY-LAMP TURN WARNING
  26460-129001.6L   -   2
64ASSY-LAMP TURN WARNING
  26460-25500ALL6703 - 67092
65LENS-TURN WARNING LAMP
  26463-12900ALL   - 67092
66ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1600 M/M)
  B5050-Y5301 SP   -   1
67ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1600 M/M)
  B5050-Y5301SP6810 -   1
68CABLE INNER
  B5050-89916SP   -   1
69ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1700 M/M)
  25055-A3200SR   -   1
70ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1600 M/M)
  25055-A3200SR6810 -   1
71ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1800 M/M)
  B5050-Y7601SPL   - 68091
72ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1900 M/M)
  B5050-Y5301 SRL   -   1
73ASSY-SHAFT, FLEXIBLE, SPEEDOMETER (CABLE) (1900 M/M)
  B5050-Y5301L DRIVE6810 -   1
74ASSY-SHAFT, TACHOMETER (CABLE) (800 M/M)
  B5050-89988SP   - 67091
75ASSY-SHAFT, TACHOMETER (CABLE) (800 M/M)
  25055-A3202SR   -   1
76ASSY-SHAFT, TACHOMETER (CABLE) (800 M/M)
  25055-A3202R DRIVE   -   1
77ASSY-SHAFT, TACHOMETER (CABLE) (800 M/M)
  25055-A3202R DRIVE6810 -   1
78ASSY-SHAFT, TACHOMETER (CABLE) (1000 M/M)
  B5055-A3302 L DRIVE   -   1
79ASSY-SHAFT, TACHOMETER (CABLE) (1000 M/M)
  B5055-A3302L DRIVE6810 -   1
80ASSY-SHAFT, TRIP RESET (CABLE)
  25056-12900SP   - 67021
81ASSY-SHAFT, TRIP RESET (CABLE)
  25056-25500R DRIVE6703 - 67091
82ASSY-SHAFT, TRIP RESET (CABLE)
  25056-25901R DRIVE6710 -   1
83ASSY-SHAFT, TRIP RESET (CABLE)
  25056-12900SPL   - 67021
84ASSY-SHAFT, TRIP RESET (CABLE)
  25056-25600SPL, SRL6703 - 67091
85ASSY-SHAFT, TRIP RESET (CABLE)
  25056-26001L DRIVE6710 -   1
  25056-A3300L DRIVE6710 -   1
86ASSY-SHAFT, TRIP RESET (CABLE)
  25056-26001L DRIVE6710 -   1
87KNOB-RESET CABLE
  B5056-25901ALL6710 -   1
88BRACKET-RESET CABLE
  25048-12901SP   -   1
89BRACKET-RESET CABLE
  25048-12900SPL   -   1
90SCREW
  00513-61010ALL   -   2
91RESISTOR-LAMP CONTROL
  25950-129001.6L   - 67021
92RESISTOR-LAMP CONTROL
  25950-25500ALL6703 - 67091
93RESISTOR-LAMP CONTROL
  25950-A3200ALL6710 -   1
94RESISTOR-LAMP CONTROL
  25950-A3200ALL6710 -   1
95KNOB-RESET CABLE
  B5056-25901ALL   -   1
96KNOB-RESET CABLE
  B5056-25901ALL   -   1
97ESCUTCHEON-RHEOSTAT
  25954-12900ALL   -   1
98SPACER-RHEOSTAT
  25953-12900ALL   -   1
99SCREW TO FIX REGULATOR
  00314-01010ALL   -   2
100WASHER-LOCK TO FIX REGULATOR
  00915-11010ALL   -   2
101ASSY-LAMP BRAKE WARNING
  26420-A3200ALL6710 -   1
102ASSY-LAMP BRAKE WARNING
  26420-A3200ALL6810 -   1
103TUBE-OIL PRESSURE GAUGE
  25079-25900ALL6710 -   1
104TUBE-OIL PRESSURE GAUGE (NOT ADOPTED)
  25075-25902SP, SR   -   1
105TUBE-OIL PRESSURE GAUGE
  25075-25902SP, SR   -   1
106TUBE-OIL PRESSURE GAUGE
  25075-25902SP, SR   -   1
107TUBE-OIL PRESSURE GAUGE
  25076-26001L DRIVE6710 -   1
108SPRING-LOCK HOSE (BRAKE)
  46201-69010 ALL6710 -   1
109SPRING-LOCK HOSE (BRAKE)
  46201-69010ALL6710 -   1
110PLATE-LOCK HOSE
  46205-61000ALL6710 -   1
111BRACKET-OIL PRESSURE HOSE
  25077-25900ALL6710 -   1
