Datsun Fairlady 1600/2000 Rear Lamps (1965-1969)

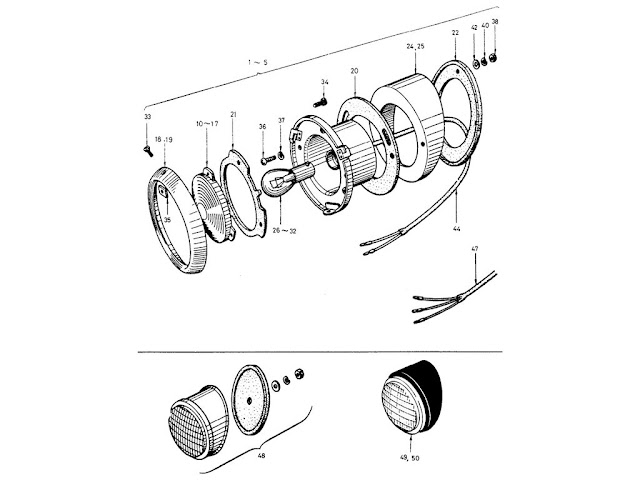

Datsun Fairlady Parts illustration no. 027-1 Rear Lamps (To June 1969)

027 -1  Rear Lamps (To June 1969)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-LAMP, TURN SIGNAL (AMBER)
  26520-10400ALL (EXC USA)   - 67092
2ASSY-LAMP, TURN SIGNAL (RED)
  26520-10500USA   - 67092
3ASSY-LAMP, TURN SIGNAL (RED)
  26520-10400ALL (EXC AUSTRALIA)   - 68092
4ASSY-LAMP, TURN SIGNAL (AMBER)
  26520-10400AUSTRALIA   - 68092
5ASSY-LAMP, TURN SIGNAL (AMBER)
  26550-A3300ALL (EXC USA & CANADA)6810 -   2
6ASSY-LAMP, TAIL STOP & TURN (RED)
  26550-A3300USA & CANADA6810 -   2
7ASSY-LAMP, TAIL STOP & TURN (RED)
  26550-A3300ALL   -   2
8ASSY-LAMP, TAIL STOP & TURN (RED) (26530-10400-01)
  26550-A3300ALL   -   2
9ASSY-LAMP, TAIL STOP & TURN (RED)
  26550-A3300ALL6810 -   2
10LENS (AMBER) (FOR 26520-10400)
  26521-09700ALL (EXC USA)   - 67092
11LENS (RED) (FOR 26520-10500)
  26551-A3300USA   - 67092
12LENS (RED) (FOR 26520-25900)
  26521-09700ALL (EXC AUSTRALIA)6710 - 68092
13LENS (AMBER) (FOR 26520-10400)
  26521-09700AUSTRALIA6710 - 68092
14LENS (AMBER) (FOR 26520-10400)
  26521-09700ALL (EXC USA & CANADA)6810 -   2
15LENS (RED) (FOR 26550-A3300)
  26551-A3300USA & CANADA6810 -   2
16LENS (RED) (FOR 26530-10400)
  26551-A3300ALL   - 68092
17LENS (RED) (FOR 26550-A3300)
  26551-A3300ALL6810 -   2
18RIM-COMB LAMP
  26552-A3300ALL   -   4
19RIM-COMB LAMP (FOR 26550-A3300)
  26552-A3300ALL   -   4
20SEAT-RUBBER (LAMP BODY TO ADAPTER)
  26523-09700ALL   -   4
21SEAT-RUBBER (LENS TO LAMP BODY)
  26528-A7500ALL   -   4
22SEAT-RUBBER (ADAPTER TO BODY)
  26528-10400ALL   -   4
23ASSY-ADAPTER, TURN SIGNAL LAMP, REAR
  26529-A7500ALL   -   4
24ASSY-ADAPTER, TURN SIGNAL LAMP, REAR
  26529-A7500ALL   -   4
25ASSY-ADAPTER, TURN SIGNAL LAMP, REAR (FOR 26550-A3300)
  26529-A7500ALL   -   4
26BULB-TURN SIGNAL LAMP (12V-25W)
  26716-89911ALL   - 68092
27BULB-TURN SIGNAL LAMP (12V-25W)
  26716-89911ALL   - 68092
28BULB-TURN SIGNAL LAMP (12V-25W)
  26716-07300ALL (EXC USA & CANADA)6810 -   2
29BULB-STOP & TAIL LAMP (12V-25/8W)
  26717-89920ALL   - 68092
30BULB-STOP & TAIL LAMP (12V-25/8W)
  26717-89920ALL   - 68092
31BULB-STOP & TAIL LAMP (12V-25/8W)
  26715-04200ALL (EXC USA & CANADA)6810 -   2
32BULB-STOP & TAIL LAMP (12V-25/8W)
  26715-04200USA & CANADA6810 -   4
33SCREW (RIM TO LAMP BODY)
  00320-60810ALL   -   4
34SCREW TO FIX LENS TO LAMP BODY
  00320-60810ALL   -   12
35NUT-SQUARE TO FIX LENS TO LAMP BODY
  00913-10810ALL   -   12
36SCREW TO FIX LAMP BODY TO ADAPTER
  00314-01210ALL   -   8
37WASHER-LOCK TO FIX LAMP BODY TO ADAPTER
  00915-11010ALL   -   8
38NUT TO FIX ADAPTER TO LAMP BODY
  00999-20310ALL   -   8
39NUT TO FIX ADAPTER TO LAMP BODY (FOR 26550-A3300)
  08911-1062AALL   -   8
40WASHER-LOCK TO FIX ADAPTER TO LAMP BODY
  00999-90310ALL   -   8
41WASHER-LOCK TO FIX ADAPTER TO LAMP BODY (FOR 26550-A3300)
  08915-1361AALL   -   8
42WASHER-PLAIN TO FIX ADAPTER TO LAMP BODY
  08911-10637ALL   -   8
43WASHER-PLAIN TO FIX ADAPTER TO LAMP BODY (FOR 26550-A3300)
  08915-4361AALL   -   8
44ASSY-CABLE TURN SIGNAL
  26529-09700ALL   - 67092
45ASSY-CABLE TURN SIGNAL
  26529-25900AUSTRALIA6710 -   2
46ASSY-CABLE STOP & TAIL LAMP
  26539-A7800ALL   - 67092
47ASSY-CABLE STOP & TAIL LAMP
  26539-A7800ALL   - 67092
48ASSY-REFLECTOR
  26560-10400ALL (EXC FRANCE)   -   2
49ASSY-REFLEX REFLECTOR RH
  26560-A3201FRANCE   -   1
50ASSY-REFLEX REFLECTOR LH
  26565-A3201FRANCE   -   1
ASSY-LAMP, TURN SIGNAL (AMBER) SCREW (RIM TO LAMP BODY) RIM-COMB LAMP / RIM-COMB LAMP (FOR 26550-A3300) LENS (AMBER) (FOR 26520-10400) / LENS (RED) (FOR 26550-A3300) SEAT-RUBBER (LENS TO LAMP BODY) SCREW TO FIX LAMP BODY TO ADAPTER WASHER-LOCK TO FIX LAMP BODY TO ADAPTER ASSY-ADAPTER, TURN SIGNAL LAMP, REAR / ASSY-ADAPTER, TURN SIGNAL LAMP, REAR (FOR 26550-A3300) SEAT-RUBBER (ADAPTER TO BODY) WASHER-LOCK TO FIX ADAPTER TO LAMP BODY ASSY-CABLE STOP & TAIL LAMP BULB-TURN SIGNAL LAMP (12V-25W) / BULB-STOP & TAIL LAMP (12V-25/8W) SCREW TO FIX LENS TO LAMP BODY SEAT-RUBBER (LAMP BODY TO ADAPTER) WASHER-PLAIN TO FIX ADAPTER TO LAMP BODY NUT TO FIX ADAPTER TO LAMP BODY ASSY-CABLE TURN SIGNAL ASSY-REFLECTOR ASSY-REFLEX REFLECTOR LH ASSY-REFLEX REFLECTOR RH
