Datsun Fairlady 1600/2000 Rear Lamps (1970)

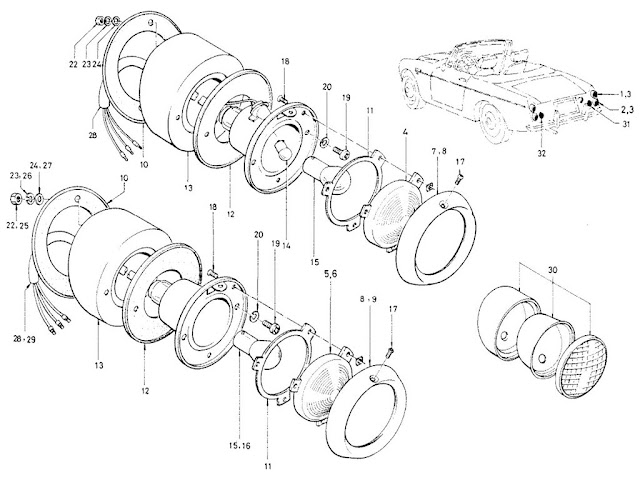

Datsun Fairlady Parts illustration no. 027A-1 Rear Lamps (From Jul.-'69)

027A -1  Rear Lamps (From Jul.-'69)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-LAMP, TURN SIGNAL REAR (AMBER)
  26520-A7500ALL (EXC USA & CANADA)   -   2
2ASSY-LAMP, COMBINATION REAR (RED)
  26550-A7800ALL (EXC USA & CANADA)   -   2
3ASSY-LAMP, COMBINATION REAR (RED)
  26550-A7800USA & CANADA   -   4
4LENS-TURN SIGNAL REAR (AMBER)
  26521-A7500ALL (EXC USA & CANADA)   -   2
5LENS-COMBINATION LAMP REAR (RED)
  26551-A7800ALL (EXC USA & CANADA)   -   2
6LENS-COMBINATION LAMP REAR (RED)
  26551-A7800USA & CANADA   -   4
7RIM-COMBINATION LAMP
  26552-A3300ALL (EXC USA & CANADA)   -   2
8RIM-COMBINATION LAMP
  26552-A3300ALL (EXC USA & CANADA)   -   2
9RIM-COMBINATION LAMP
  26552-A3300USA & CANADA   -   4
10SEAT-RUBBER (BODY TO ADAPTOR)
  26523-09700ALL   -   4
11PACKING-LAMP REAR
  26528-A7500ALL   -   4
12SHEET COMBINATION LAMP
  26528-10400ALL   -   8
13ASSY-ADAPTER, TURN SIGNAL LAMP REAR
  26529-A7500ALL   -   4
14BULB TURN SIGNAL REAR (12V-23W)
  26717-89900ALL (EXC USA & CANADA)   -   2
15BULB COMBINATION LAMP REAR (12V-23-7W)
  26717-89920ALL (EXC USA & CANADA)   -   2
16BULB COMBINATION LAMP REAR (12V-23-7W)
  26717-89920USA & CANADA   -   4
17SCREW (RIM TO LAMP BODY)
  00320-60810ALL (EXC USA & CANADA)   -   2
18PH CROSS SCREW M3X5
  08310-30812ALL (EXC USA & CANADA)   -   8
19SCREW (LAMP BODY TO ADAPTOR)
  00314-01210ALL (EXC USA & CANADA)   -   4
20WASHER-SPRING (LAMP BODY TO ADAPTOR)
  00915-11010ALL (EXC USA & CANADA)   -   4
21PH SCREW 6 P 10
  00998-11210ALL (EXC USA & CANADA)   -   4
22NUT HEX (ADAPTOR TO LAMP BODY)
  08911-1062AALL (EXC USA & CANADA)   -   4
23WASHER-SPRING (ADAPTOR TO LAMP BODY)
  08915-1361AALL (EXC USA & CANADA)   -   4
24WASHER-PLAIN (ADAPTOR TO LAMP BODY)
  08915-4361AALL (EXC USA & CANADA)   -   4
25NUT-HEX (ADAPTOR TO LAMP BODY)
  08911-1062AUSA & CANADA   -   8
26WASHER-SPRING (ADAPTOR TO LAMP BODY)
  08915-1361AUSA & CANADA   -   8
27WASHER-PLAIN (ADAPTOR TO LAMP BODY)
  08915-4361AUSA & CANADA   -   8
28ASSY-CABLE, COMBINATION LAMP REAR
  26539-A7800ALL (EXC USA & CANADA)   -   2
29ASSY-CABLE, COMBINATION LAMP REAR
  26539-A7800USA & CANADA   -   4
30ASSY-REFLEX REFLECTOR
  26560-10400ALL (EXC USA, CANADA & FRANCE)   -   2
31ASSY-REFLEX REFLECTOR RH
  26560-A3201USA, CANADA & FRANCE   -   1
32ASSY-REFLEX REFLECTOR LH
  26565-A3201USA, CANADA & FRANCE   -   1
