Datsun Fairlady 1600 Starter Motor (Hitachi)

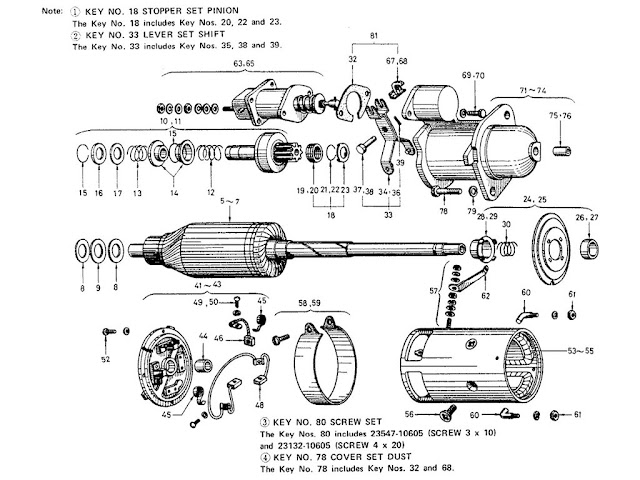

Datsun Fairlady Parts illustration no. 020-1 Starter Motor 1.6 (R16) (Hitachi)

020 -1  Starter Motor 1.6 (R16) (Hitachi)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-MOTOR, STARTER
  23300-369011.6L   -   1
2ASSY-MOTOR, STARTER (5114-91A)
  23300-369011.6L   -   1
3ASSY-MOTOR, STARTER (5114-91)
  B3300-15805 1.6L   -   1
4ASSY-MOTOR, STARTER (ISO)
  B3300-158051.6L   -   1
5ASSY-ARMATURE
  23310-369001.6L   -   1
6ASSY-ARMATURE
  23310-158011.6L   -   1
7ASSY-ARMATURE
  23310-158011.6L   -   1
8WASHER-THRUST
  23321-099001.6L   -   3
9WASHER-THRUST
  23339-095001.6L   -   1
10ASSY-PINION & CLUTCH
  23312-610001.6L   -   1
11ASSY-PINION & CLUTCH
  23312-E3000 1.6L   -   1
12SPRING-PINION SLEEVE (N0.1)
  23442-096001.6L   -   1
13SPRING-PINION SLEEVE (N0.2)
  23443-096001.6L   -   1
14SLEEVE-PINION
  23374-095001.6L   -   2
15CLIP-SLEEVE PINION
  23372-096001.6L   -   2
16STOPPER-SPRING SLEEVE
  23444-096001.6L   -   1
17WASHER-PINION
  23351-096001.6L   -   1
18STOPPER SET PINION
  23465-E68001.6L   -   1
19STOPPER-PINION
  23369-436001.6L   -   1
20STOPPER-PINION
  23465-E68001.6L   -   1
21CLIP-STOPPER, PINION
  23373-436001.6L   -   1
22CLIP-STOPPER, PINION
  23353-106001.6L   -   1
23WASHER-STOPPER, PINION
  23370-096001.6L   -   1
24ASSY-BEARING, CENTER
  23383-095001.6L   -   1
25ASSY-BEARING, CENTER
  23383-106011.6L   -   1
26METAL-BEARING, CENTER
  23441-095001.6L   -   1
27METAL-BEARING, CENTER
  23441-106001.6L   -   1
28BRAKE
  23450-095001.6L   -   1
29BRAKE
  23450-106001.6L   -   1
30SPRING-BRAKE
  23453-095001.6L   -   1
31COVER-DUST
  23446-369001.6L   -   1
32GASKET
  23446-158001.6L   -   1
33LEVER-SET SHIFT
  23322-106011.6L   -   1
34ASSY-LEVER, PINION SHAFT
  23322-095001.6L   -   1
35ASSY-LEVER, PINION SHAFT
  23322-106011.6L   -   1
36ASSY-LEVER, PINION SHAFT
  23322-106011.6L   -   1
37PIN-SHIFT LEVER
  23323-095001.6L   -   1
38PIN-SHIFT LEVER
  23323-106001.6L   -   1
39PIN-COTTER
  23391-433001.6L   -   1
40ASSY-COVER, REAR
  23337-095011.6L   -   1
41ASSY-COVER, REAR
  23337-095011.6L   -   1
42ASSY-COVER, REAR
  23337-106001.6L   -   1
43ASSY-COVER, REAR (ISO)
  23337-106051.6L   -   1
44BEARING-METAL (BUSHING)
  23338-099001.6L   -   1
45SPRING-BRUSH (INC 23547-10605)
  23333-210011.6L   -   4
46BRUSH (-)
  23380-106001.6L   -   2
47BRUSH (+)
  23380-106001.6L   -   1
48BRUSH (+)
  23380-106001.6L   -   1
49SCREW (3)
  23547-256601.6L   -   2
50SCREW (3) (ISO)
  23547-106051.6L   -   2
51SCREW (4)
  22103-500001.6L   -   4
52BOLT (ISO)
  23340-158051.6L   -   2
53ASSY-COIL, FIELD
  23306-369001.6L   -   1
54ASSY-COIL, FIELD
  23306-158011.6L   -   1
55ASSY-COIL, FIELD
  23306-158011.6L   -   1
56SCREW-SET, POLE CORE
  23305-095001.6L   -   4
57ASSY-TERMINAL
  23384-096011.6L   -   1
58ASSY-COVER, BRUSH
  23342-099011.6L   -   1
59ASSY-COVER, BRUSH (ISO)
  23309-158051.6L   -   1
60BOLT-JOINT
  23352-096001.6L   -   2
61NUT
  23393-099001.6L   -   2
62PLATE-CONNECTING
  23447-369001.6L   -   1
63ASSY-SWITCH, MAGNETIC
  23343-369001.6L   -   1
64ASSY-SWITCH, MAGNETIC
  23343-158011.6L   -   1
65SWITCH-MAGNETIC
  23343-158011.6L   -   1
66ASSY-SWITCH, MAGNETIC (ISO)
  B3343-158051.6L   -   1
67COVER-DUST
  23445-369001.6L   -   1
68COVER-DUST
  23445-158001.6L   -   1
69BOLT (5)
  22201-096001.6L   -   2
70BOLT (5)
  22201-106001.6L   -   2
71ASSY-CASE, GEAR
  23318-369001.6L   -   1
72ASSY-CASE, GEAR
  23318-369011.6L   -   1
73ASSY-CASE, GEAR AL
  23318-106001.6L   -   1
74ASSY-CASE, GEAR (ISO)
  23318-158051.6L   -   1
75BEARING-METAL
  23319-096001.6L   -   1
76BEARING-METAL
  23319-106001.6L   -   1
77BOLT 50 (ISO)
  23390-180051.6L   -   2
78BOLT TO FIX STARTER TO MOTOR
  00124-635101.6L   -   2
79WASHER-LOCK TO FIX STARTER MOTOR
  00915-216101.6L   -   2
80SCREW-SET
  23480-M01001.6L   -   1
81COVER SET DUST
  23470-158001.6L   -   1
