Datsun Fairlady 2000 Starter Motor (Mitsubishii)

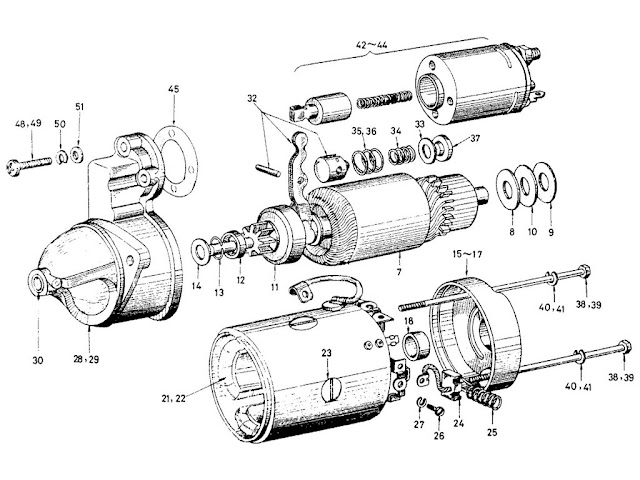

Datsun Fairlady Parts illustration no. 020A-1 Starter Motor 2000 (U20) (Mitsubishi)

020A -1  Starter Motor 2000 (U20) (Mitsubishi)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-STARTER MOTOR (MITSUBISHI)
  23300-A3210 2L   -   1
2ASSY-STARTER MOTOR (MITSUBISHI) (ISO)
  23300-A32102L   -   1
3ASSY-STARTER MOTOR (MITSUBISHI) (ISO)
  23300-A32102L   -   1
4BOLT-HEXAGON HEAD M10 X 1.5 X 35 TO ATTACH STARTER MOTOR TO ENGINE
  08121-0351F2L   -   2
5WASHER-SPRING M10 TO ATTACH STARTER MOTOR TO ENGINE
  08915-2401A2L   -   2
6WASHER-PLAIN M10 TO ATTACH STARTER MOTOR TO ENGINE
  08915-4405A2L   -   2
7ASSY-ARMATURE
  23310-158112L   -   1
8WASHER
  23326-158102L   -   1
9WASHER-INSULATOR
  23339-158102L   -   1
10WASHER-THRUST
  23321-158102L   -   1
11ASSY-PINION & CLUTCH
  23312-158102L   -   1
12SET-STOPPER, PINION
  23465-180102L   -   1
13CLIP-PINION STOPPER
  23373-096102L   -   1
14WASHER-THRUST
  23320-096102L   -   1
15ASSY-COVER, REAR
  23337-210122L   -   1
16ASSY-COVER, REAR
  23337-210122Y   -   1
17ASSY-COVER, REAR
  23337-A32102L   -   1
18METAL BEARING
  23338-210122L   -   1
19METAL BEARING
  23338-210122L   -   1
20METAL BEARING
  23338-210112L   -   1
21ASSY-COIL, FIELD
  23306-158112L   -   1
22ASSY-COIL, FIELD
  23306-A32102L   -   1
23SCREW-SET, POLE CORE
  23305-210102L   -   4
24ASSY-BRUSH
  23380-210102L   -   4
25SPRING-BRUSH
  23333-210102L   -   4
26SCREW
  23350-096102L   -   4
27WASHER
  23339-369102L   -   4
28ASSY-COVER, FRONT
  23318-158112L   -   1
29ASSY-COVER, FRONT
  23318-A32102L   -   1
30BUSHING-CASE
  23319-096122L   -   1
31PLATE
  23324-210102L   -   1
32ASSY-LEVER, PINION SHAFT
  23322-158102L   -   1
33WASHER
  23296-158102L   -   1
34SPRING-LEVER A
  23475-158102L   -   1
35SPRING-LEVER B
  23327-158112L   -   1
36SPRING-LEVER B (ISO)
  23327-158122L   -   1
37RETAINER-SPRING
  23328-210102L   -   1
38BOLT-THROUGH
  23340-158112L   -   2
39BOLT-THROUGH
  23340-A32102L   -   2
40WASHER-SPRING
  22203-013022L   -   2
41WASHER-SPRING
  22203-A32102L   -   2
42ASSY-SWITCH
  23343-158112L   -   1
43ASSY-SWITCH (ISO)
  23343-158152L   -   1
44ASSY-SWITCH
  23343-158152L   -   1
45GASKET
  23457-158102L   -   1
46SHIM (T-0.5)
  23345-158102L   -   1
47SHIM (T-1.0)
  23345-158112L   -   1
48SCREW
  23344-158102L   -   3
49SCREW
  23344-A32102L   -   3
50WASHER-SPRING
  22203-013022L   -   3
51WASHER
  23349-158102L   -   3
52BOLT TO FIX STARTER MOTOR
  00124-635102L   -   2
53WASHER-LOCK TO FIX STARTER MOTOR
  00915-216102L   -   2
54WASHER-PLAIN TO FIX STARTER MOTOR
  00915-416102L   -   2
55ASSY-BAND SET
  23497-A32102L   -   1
56SCREW
  23498-A32102L   -   2
57WASHER-SPRING
  22203-322102L   -   2
