Datsun Fairlady 1600 (R16) Camshaft & Valve Train

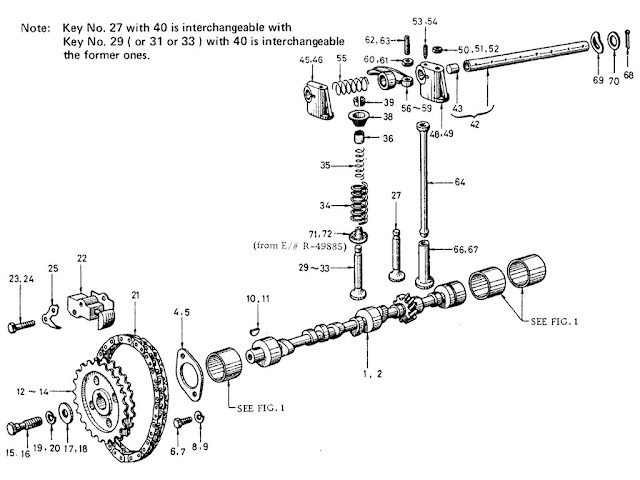

Datsun Fairlady Parts illustration no. 004-1 Camshaft & Valve Mechanism 1600 (R16)

004 -1  Camshaft & Valve Mechanism 1600 (R16)
KeyPart No.ModelApplied DateQty
FromTo
1CAMSHAFT
  13001-712001.6L   - 67021
2CAMSHAFT
  13001-188101.6L6703 -   1
3PLATE-LOCATING, CAMSHAFT
  13010-76203 1.6L   - 67021
4PLATE-LOCATING, CAMSHAFT
  13010-76203 1.6L   - 67021
5PLATE-LOCATING, CAMSHAFT
  13010-782011.6L6703 -   1
6SCREW-SET (BOLT)
  00111-418001.6L   - 67022
7SCREW-SET (BOLT)
  08120-618101.6L6703 -   2
8WASHER-LOCK
  00915-114101.6L   - 67022
9WASHER-LOCK
  08915-1361A1.6L6703 -   2
10KEY-CAMSHAFT
  13032-300001.6L   - 67021
11KEY-CAMSHAFT
  00926-416101.6L6703 -   1
12CAMSHAFT GEAR
  13024-322001.6L   -   1
13CAMSHAFT GEAR
  A3024-736001.6L   -   1
14CAMSHAFT GEAR
  13024-782001.6L6703 -   1
15BOLT-CAMSHAFT GEAR
  13082-080001.6L   - 67021
16BOLT-CAMSHAFT GEAR
  13012-782001.6L6703 -   1
17WASHER-CAMSHAFT GEAR
  13030-080001.6L   - 67021
18WASHER-CAMSHAFT GEAR
  13013-782001.6L6703 -   1
19WASHER-LOCK
  00915-116101.6L   - 67021
20WASHER-LOCK
  08915-2401A1.6L6703 -   1
21TIMING CHAIN
  13028-322001.6L   -   1
22CHAIN TENSIONER
  13070-322001.6L   -   1
23SET-SCREW, CHAIN TENSIONER (BOLT)
  00111-438001.6L   - 67022
24SET-SCREW, CHAIN TENSIONER (BOLT)
  08120-640101.6L6703 -   2
25WASHER-LOCK
  13078-322001.6L   -   1
26VALVE-INTAKE (STD. SIZE)
  13201-129001.6L   -   4
  13201-F1800 1.6L   -   4
27VALVE-INTAKE (STD. SIZE)
  13201-F1800 1.6L   -   4
28VALVE-INTAKE (STD. SIZE)
  13201-F18001.6L   -   4
29VALVE-EXHAUST (STD. SIZE)
  13202-P51001.6L   -   4
30VALVE-EXHAUST (STD. SIZE)
  13202-P51001.6L   -   4
31VALVE EXHAUST (0.2M/M OVER SIZE)
  13202-667011.6L   -   4
32VALVE EXHAUST (0.2M/M OVER SIZE)
  13202-667011.6L   -   4
33VALVE EXHAUST (0.4M/M OVER SIZE)
  13202-667021.6L   -   4
34SPRING VALVE, OUTER
  13203-T72001.6L   -   8
35SPRING-VALVE, INNER
  13204-081001.6L   -   8
36RING-RUBBER, VALVE (SEAL VALVE)
  13207-122001.6L   -   8
37RETAINER-VALVE SPRING
  13209-782001.6L   -   8
38RETAINER-VALVE SPRING
  13209-782001.6L   -   8
39VALVE COLLET
  13210-122001.6L   -   16
40SEAT-VALVE, SPRING OUTER
  13205-D02001.6L   -   8
41SEAT-VALVE, SPRING INNER
  13206-146001.6L   -   8
42ASSY-SHAFT, ROCKER
  13252-122001.6L   -   1
43PLUG-EXPANSION ROCKER SHAFT
  13254-580001.6L   -   2
44BRACKET-ROCKER SHAFT
  13222-387001.6L   - 67023
45BRACKET-ROCKER SHAFT
  13222-387001.6L   - 67023
46BRACKET-ROCKER SHAFT
  13222-188101.6L6703 -   3
47BRACKET-ROCKER SHAFT
  13223-122011.6L   -   1
48BRACKET-ROCKER SHAFT
  13223-122011.6L   - 67021
49BRACKET-ROCKER SHAFT
  13223-188101.6L6703 -   1
50NUT-ROCKER BRACKET
  00911-247101.6L   - 67024
51NUT-ROCKER BRACKET
  08911-2401A 1.6L   -   4
52NUT-ROCKER BRACKET
  08911-2401A1.6L   -   4
53SCREW-SET, ROCKER SHAFT
  13226-580001.6L   - 67021
54SCREW-SET, ROCKER SHAFT
  13226-782001.6L6703 -   1
55SPRING-INSIDE, VALVE ROCKER
  13256-W04001.6L   -   3
56ROCKER-VALVE RH
  13258-122001.6L   - 67024
57ROCKER-VALVE RH
  13258-782011.6L6703 -   4
58ROCKER-VALVE LH
  13259-122001.6L   - 67024
59ROCKER-VALVE LH
  13259-782011.6L6703 -   4
60NUT-VALVE ROCKER
  13288-580001.6L   - 67028
61NUT-VALVE ROCKER
  13235-782001.6L6703 -   8
62SCREW-ADJUST, VALVE ROCKER
  13287-580001.6L   - 67028
63SCREW-ADJUST, VALVE ROCKER
  13234-782001.6L6703 -   8
64ROD-PUSH (PUSHROD)
  13238-122001.6L   -   8
65LIFTER-VALVE
  13231-78200 1.6L   -   8
66LIFTER-VALVE
  13231-78200 1.6L   -   8
67LIFTER-VALVE
  13231-782001.6L   -   8
68PIN-SPLIT, VALVE ROCKER SHAFT (COTTER PIN)
  00921-2252A1.6L   -   2
69SPRING-OUTSIDE, VALVE ROCKER
  13255-580001.6L   -   2
70WASHER-ROCKER SHAFT
  13289-580001.6L   -   2
71SEAL LIP-VALVE (VALVE SEAL)
  13207-129101.6L   -   8
72SEAL LIP-VALVE (VALVE SEAL) (NOK)
  13207-667001.6L   -   8
73SEAL LIP-VALVE (VALVE SEAL) (NOK)
  13207-667001.6L   -
