Datsun Fairlady 1600 (R16) Cylinder Block

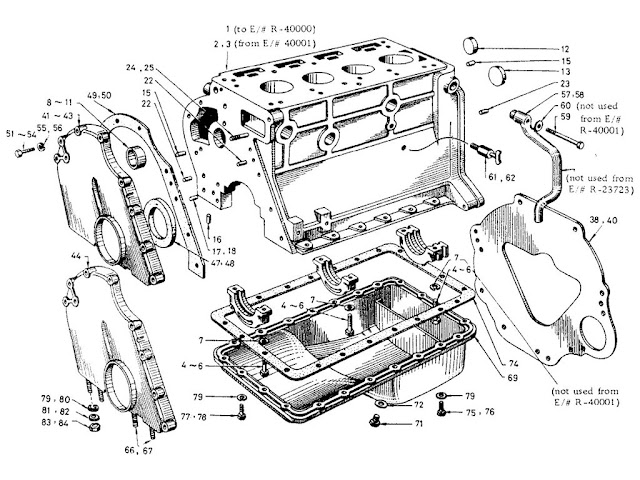

Datsun Fairlady Parts illustration no. 001-1 Cylinder Block 1600 (R16) [1]

001 -1  Cylinder Block 1600 (R16) [1]
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-BLOCK,CYLINDER W/PLUGS
  11010-146001.6L   - 67021
2ASSY-BLOCK,CYLINDER W/PLUGS
  11010-Y4450 1.6L   -   1
3ASSY-BLOCK CYLINDER W/PLUGS
  11010-Y44501.6L   -   1
4BOLT TO FIX BEARING CAP
  00131-880101.6L   - 67026
5BOLT TO FIX BEARING CAP
  12294-782001.6L6703 -   6
6BOLT TO FIX BEARING CAP
  12293-P05001.6L6703 -   6
7WASHER-LOCK TO FIX BEARING CAP (NOT USED FROM E/# R-40001)
  00915-218101.6L6703 -   6
8SET-BUSHING, CAM SHAFT (STANDARD SIZE)
  13002-712041.6L   -   1
9SET-BUSHING, CAM SHAFT (0.25 UNDER SIZE)
  13003-322001.6L   -   1
10SET-BUSHING, CAM SHAFT (0.50 UNDER SIZE)
  13004-322001.6L   -   1
11SET-BUSHING, CAM SHAFT (0.75 UNDER SIZE)
  13004-322011.6L   -   1
12PLUG-TAPER (35)
  00933-1355A1.6L   -   6
13PLUG-TAPER (44,425)
  11019-322011.6L   -   1
14PLUG-OIL GALLERY, CRANK CASE (BRASS)
  11024-K01001.6L   -   2
15PLUG-OIL GALLERY, CRANK CASE (BRASS)
  11024-K01001.6L   -   2
16PLUG-BLIND (6,5)
  11024-032001.6L   -   1
17JET-OIL CHAIN TENSIONER
  13081-322011.6L   - 67021
18JET-OIL CHAIN TENSIONER
  13081-782001.6L6703 -   1
19PLUG (FOR OIL GALLERY)
  00931-302101.6L   - 67022
20PLUG (FOR OIL GALLERY)
  08931-3021A1.6L6703 -   2
21DOWEL-TIMING CHAIN CASE
  11046-734021.6L   -   2
22DOWEL-TIMING CHAIN CASE
  11046-734021.6L   -   2
23DOWEL
  30412-850601.6L   -   2
24STUD (TO FIX WATER PUMP)
  00214-650101.6L   - 67021
25STUD (TO FIX WATER PUMP)
  08227-040101.6L6703 -   1
26BUSHING-DRIVING SPINDLE, OIL PUMP
  15042-322001.6L   -   1
27STUD (TO FIX FUEL PUMP)
  00214-525101.6L   - 67022
28STUD 25 M/M (TO FIX FUEL PUMP)
  08223-825101.6L6703 -   2
29STUD 32M/M (TO FIX FUEL PUMP)
  08223-832101.6L   -   2
30STUD (TO FIX OIL FILTER)
  00214-622101.6L   - 67022
31STUD (TO FIX OIL FILTER)
  08227-022101.6L6703 -   2
32GUIDE-DIPSTICK (OIL LEVEL GAUGE)
  15146-122011.6L (EXC EVAPO)   -   1
33GUIDE-DIPSTICK (OIL LEVEL GAUGE)
  15146-A77001.6L EVAPO   -   1
34SEAL-OIL, REAR BEARING CAP SIDE (RUBBER)
  12289-146001.6L   -   2
35SEAL-OIL, REAR BEARING CAP SIDE (RUBBER)
  12289-146001.6L   -   2
36SEAL-OIl, CRANK SHAFT
  12279-322001.6L   - 67022
37SEAL-OIl, CRANK SHAFT
  12279-322001.6L6703 -   2
38PLATE-REAR, ENGINE
  30411-387021.6L   - 67021
39PLATE-REAR, ENGINE
  30411-782021.6L   -   1
40PLATE-REAR, ENGINE
  30411-782021.6L   -   1
41ASSY-COVER,TIMING CHAIN, WITH SEAL
  13036-61050SPL   -   1
42ASSY-COVER,TIMING CHAIN, WITH SEAL
  13035-15800SP   - 67021
  13035-38700SP   -   1
43ASSY-COVER,TIMING CHAIN, WITH SEAL
  13035-158001.6L   - 67021
44ASSY-COVER,TIMING CHAIN, WITH SEAL
  13500-666001.6L6703 -   1
  13500-666011.6L6703 -   1
45ASSY-COVER,TIMING CHAIN
  13500-666001.6L6703 -   1
46INDICATOR-TIMING
  13515-14700SPLU6710 -   1
47SEAL-OIL, TIMING CHAIN COVER
  13510-E0700 1.6L   -   1
48SEAL-OIL, TIMING CHAIN COVER
  13510-E07001.6L   -   1
49GASKET, TIMING CHAIN COVER
  13044-322001.6L   -   1
50GASKET, TIMING CHAIN COVER
  13044-322001.6L   -   1
51BOLT-FIX TIMING CHAIN COVER
  00111-410101.6L   - 67029
52BOLT-FIX TIMING CHAIN COVER
  08120-845101.6L6703 -   9
53BOLT-FIX TIMING CHAIN COVER
  08120-840101.6L6703 -   9
54BOLT-FIX TIMING CHAIN COVER
  13541-666001.6L6703 -   9
55WASHER-SPRING TO FIX TIMING CHAIN COVER
  00915-114101.6L   - 67029
56WASHER-SPRING TO FIX TIMING CHAIN COVER
  08915-1381A1.6L6703 -   9
57TUBE-BREATHER
  15262-12200SP   -   1
58TUBE-BREATHER
  15262-387001.6L   -   1
59BOLT
  00111-575101.6L   -   1
60WASHER (NOT USED FROM E/# R-40001)
  11035-300001.6L   - 67021
61PLUG-DRAIN
  21211-734001.6L   - 67021
62PLUG-DRAIN
  21211-180001.6L6703 -   1
63ASSY-GAUGE,OIL LEVEL (DIPSTICK)
  15140-122001.6L (EXC USA)   -   1
64ASSY-GAUGE,OIL LEVEL (DIPSTICK)
  15140-122011.6L   -   1
65ASSY-GAUGE,OIL LEVEL (DIPSTICK)
  15140-122011.6L (USA ONLY)   -   1
66STUD-FRONT COVER TO OIL PAN
  00224-416101.6L   - 67024
67STUD-FRONT COVER TO OIL PAN
  08226-616101.6L6703 -   4
68STUD-WATER PUMP
  08227-045101.6L6703 -   1
69OIL PAN
  11110-122001.6L   -   1
70PLUG-DRAIN,OIL PAN
  11128-U8000 1.6L   -   1
71PLUG-DRAIN,OIL PAN
  11128-U80001.6L   -   1
72WASHER-DRAIN PLUG
  11026-610001.6L   -   1
73GASKET-OIL PAN TO CYLINDER BLOCK
  11121-E07001.6L   -   1
74GASKET-OIL PAN TO CYLINDER BLOCK
  11121-E07001.6L   -   1
75BOLT TO FIX OIL PAN
  00111-416101.6L   - 670220
76BOLT TO FIX OIL PAN
  08120-616101.6L6703 -   15
77BOLT TO FIX OIL PAN
  00111-422101.6L   - 67022
78BOLT TO FIX OIL PAN
  08120-622101.6L6703 -   3
79WASHER-LOCK TO FIX OIL PAN
  00915-114101.6L   - 670222
80WASHER-SPRING TO FIX OIL PAN
  08915-1361A1.6L6703 -   22
81WASHER-PLAIN
  08911-106371.6L   - 67024
82WASHER-PLAIN
  08915-4361A1.6L6703 -   4
83NUT TO FIX OIL PAN
  00911-244101.6L   - 67024
84NUT TO FIX OIL PAN
  08911-1062A1.6L6703 -   4
85HELI-SERT 3/8-19 PS TO FIX OIL PAN
  11160-734001.6L   -   1
86ASSY GAUGE-OIL PRESSURE, ENGINE SIDE
  25078-32200ALL   - 67091
