Datsun Fairlady 1600 (R16) Cylinder Head

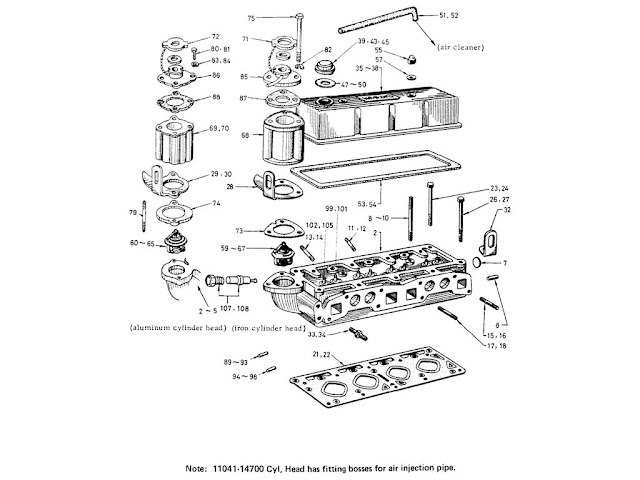

Datsun Fairlady Parts illustration no. 002-1 Cylinder Head 1600 (R16)

002 -1  Cylinder Head 1600 (R16)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-HEAD,CYLINDER, IRON
  11041-146031.6L   -   1
2ASSY-HEAD CYLINDER, ALUMINIUM
  11041-146031.6L   - 67021
3ASSY-HEAD,CYLINDER, ALUMINIUM
  11041-188101.6L6703 -   1
4ASSY-HEAD,CYLINDER, ALUMINIUM
  11041-147001.6L   -   1
  11041-188111.6L   -   1
5ASSY-HEAD CYLINDER, ALUMINIUM
  11041-147001.6L   -   1
6BOLT H14X1, 5X20L
  08114-420101.6L   -   1
7PLUG-TAPER (35)
  00933-1355A1.6L   -   1
8STUD-ROCKER COVER
  11063-322001.6L   -   2
9STUD-ROCKER COVER
  11063-782011.6L6703 -   2
10STUD-ROCKER COVER
  11063-782011.6L6703 -   2
11STUD-ROCKER BRACKET
  00264-770001.6L   - 67021
12STUD-ROCKER BRACKET
  13224-782001.6L6703 -   1
13STUD-ADJUSTING BAR
  00214-618101.6L   - 67021
14STUD-ADJUSTING BAR
  08227-022101.6L6703 -   1
15STUD
  00224-528101.6L   - 67024
16STUD
  08223-828101.6L6703 -   4
17STUD-MANIFOLD MOUNTING, CENTER
  00224-532001.6L   - 67022
18STUD-MANIFOLD MOUNTING, CENTER
  08223-832101.6L6703 -   2
19PLUG-OIL HOLE (BRASS)
  11065-300001.6L   -   2
20GASKET-CYLINDER HEAD (COMRESSION RATIO 8.0:1)
  11044-L1100 1.6L   -   1
21GASKET-CYLINDER HEAD (COMRESSION RATIO 8.0:1)
  11044-L1100 1.6L   -   1
22GASKET-CYLINDER HEAD (COMRESSION RATIO 8.0:1)
  11044-L11001.6L   -   1
23BOLT-CYLINDER HEAD
  11056-782001.6L   -   9
24BOLT-CYLINDER HEAD
  11056-782001.6L6703 -   9
25WASHER-CYLINDER BOLT T3,2
  11058-188101.6L   -   9
26BOLT-CYLINDER HEAD
  11057-322001.6L   - 67021
27BOLT-CYLINDER HEAD
  11057-782001.6L6703 -   1
28SLINGER-ENGINE, FRONT
  10005-146001.6L   -   1
29SLINGER-ENGINE, FRONT
  10004-734001.6L   -   1
30SLINGER-ENGINE, FRONT (INCH)
  10004-734001.6L   -   1
31SLINGER-ENGINE, FRONT (METRIC)
  10004-146001.6L   -   1
32SLINGER-ENGINE, REAR
  10006-322011.6L   -   1
33CONNECTOR-CYLINDER HEAD
  14057-122001.6L   - 67021
34CONNECTOR-CYLINDER HEAD
  14059-146001.6L   -   1
35ASSY-COVER,ROCKER,FOR ANTI-AIR POLLUTION
  13264-123001.6L USA   -   1
36ASSY-COVER,ROCKER,FOR ANTI-AIR POLLUTION
  13264-160001.6L USA   -   1
37ASSY-COVER,ROCKER
  13265-122001.6L (EXC USA)   -   1
38ASSY-COVER,ROCKER,FOR ANTI-AIR POLLUTION
  13264-160001.6L (EXC USA)   -   1
39ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15254-123001.6L USA   -   1
40ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15255-B3430 1.6L USA   -   1
41ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15255-B3430 1.6L USA   -   1
42ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15255-B34301.6L USA   -   1
43ASSY-FILLER, OIL (OIL CAP)
  15255-03W501.6L (EXC USA)   -   1
44ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15255-B3430 1.6L (EXC USA)   -   1
45ASSY-FILLER,OIL FOR ANTI-AIR POLLUTION (OIL CAP)
  15255-B34301.6L   -   1
46PACKING-OIL FILLER
  15270-B34001.6L (EXC USA)   -   1
47PACKING-OIL FILLER
  15270-B34001.6L   -   1
48PACKING-OIL FILLER
  15270-B34001.6L   -   1
49PACKING-OIL FILLER
  15270-B34001.6L (EXC USA)   -   1
50PACKING-OIL FILLER
  15270-B34001.6L   -   1
51ASSY-HOSE, ROCKER COVER TO AIR-CLEANER
  16571-147001.6L USA   -   1
52ASSY-HOSE, ROCKER COVER TO AIR-CLEANER
  16571-147001.6L   -   1
53GASKET-ROCKER COVER
  13270-367001.6L   -   1
54GASKET-ROCKER COVER
  13270-367001.6L   -   1
55NUT-CAP
  13239-104001.6L   - 67022
56NUT-CAP
  01217-000521.6L6703 -   2
57WASHER-CAP NUT
  13275-F10001.6L   -   2
58WASHER-CAP NUT
  13275-F10001.6L   -   2
59ASSY-THERMOSTAT (76.5 DEGREES)
  21200-785021.6L   -   1
60ASSY-THERMOSTAT (76.5 DEGREES)
  21200-785021.6L   -   1
61ASSY-THERMOSTAT (FOR WINTER) (82 DEGREES)
  21200-785001.6L   -   1
62ASSY-THERMOSTAT (FOR WINTER) (82 DEGREES)
  21200-785001.6L   -   1
63ASSY-THERMOSTAT (FOR COLD AREA) (88 DEGREES)
  21200-78506 1.6L   -   1
64ASSY-THERMOSTAT (FOR COLD AREA) (88 DEGREES)
  21200-78506 1.6L   -   1
65ASSY-THERMOSTAT (FOR COLD AREA) (88 DEGREES)
  21200-78506 1.6L   -   1
66ASSY-THERMOSTAT (FOR COLD AREA) (88 DEGREES)
  21200-785061.6L   -   1
67ASSY-THERMOSTAT (FOR COLD AREA) (88 DEGREES)
  21200-785061.6L   -   1
68ELBOW WATER OUTLET (3 HOLES)
  11060-146021.6L   -   1
69ELBOW WATER OUTLET (4 HOLES)
  11060-146011.6L   -   1
70ELBOW WATER OUTLET
  11060-14700SPLU6710 -   1
71ASSY-CAP, RADIATOR
  21430-146031.6L   -   1
72ASSY-CAP, RADIATOR
  21430-146031.6L   -   1
73WASHER-JOINT, WATER OUTLET ELBOW (3 HOLES)
  11062-146001.6L   -   1
74WASHER-JOINT, WATER OUTLET ELBOW (2 HOLES)
  11062-146001.6L   -   1
75BOLT TO FIX ELBOW TO CYLINDER HEAD
  15037-094001.6L   -   3
76BOLT-STUD
  11050-146021.6L   - 67022
77BOLT-STUD
  11050-146021.6L   - 67022
78BOLT-STUD
  11050-146031.6L6703 -   2
79BOLT-STUD
  11050-14700SPLU6710 -   2
80BOLT
  00114-414101.6L   - 67022
81BOLT
  08120-614101.6L6703 -   2
82WASHER-LOCK TO FIX ELBOW TO CYLINDER HEAD
  00915-115101.6L   -   3
83WASHER-SPRING
  00915-114101.6L   - 67022
84WASHER-SPRING
  08915-1361A1.6L6703 -   2
85ASSY NECK-RADIATOR
  B1430-146011.6L   -   1
86ASSY NECK-RADIATOR
  21411-146031.6L   -   1
87GASKET-FILLER NECK, 3 HOLES
  11062-300001.6L   -   1
88GASKET-FILLER NECK, 4 HOLES
  21412-146001.6L   -   1
89PLUG-BLIND, STEEL
  00933-1251A1.6L   -   1
90PLUG-BLIND, ALUMINUM
  11048-14604 1.6L   -   1
91PLUG-BLIND
  11048-14604 1.6L   -   1
92PLUG-BLIND
  11048-146041.6L   -   1
93PLUG-BLIND
  11048-146041.6L   -   3
94PLUG-TAPER, STEEL
  11049-146021.6L   -   1
95PLUG-TAPER, ALMINUM
  11049-146021.6L   -   1
96PLUG-TAPER, ALMINUM
  11049-146021.6L   -   1
97GUIDE-VALVE, INTAKE
  13212-18815 1.6L   -   1
98GUIDE-VALVE, INTAKE
  13212-188151.6L   -   4
99GUIDE-VALVE, INTAKE
  13212-188151.6L   -   4
100GUIDE-VALVE, INTAKE
  13212-188151.6L   -   4
101GUIDE-VALVE, INTAKE
  13212-188151.6L   -   4
102GUIDE-VALVE, EXHAUST
  13213-146151.6L   -   4
103GUIDE-VALVE, EXHAUST
  13213-146151.6L   -   4
104GUIDE-VALVE, EXHAUST
  13213-188151.6L   -   4
105GUIDE-VALVE, EXHAUST
  13213-188151.6L   -   4
106COMP-TRANSMITTER, THERMAL, ENGINE SIDE
  25080-62200ALL   -   1
107NUT-GRAND, THERMAL (SENDER)
  25251-301001.6L   - 67021
108NUT-GRAND, THERMAL (SENDER)
  25251-37700ALL6703 -   1
