Datsun Fairlady 1600 (R16) Water Pump & Fan

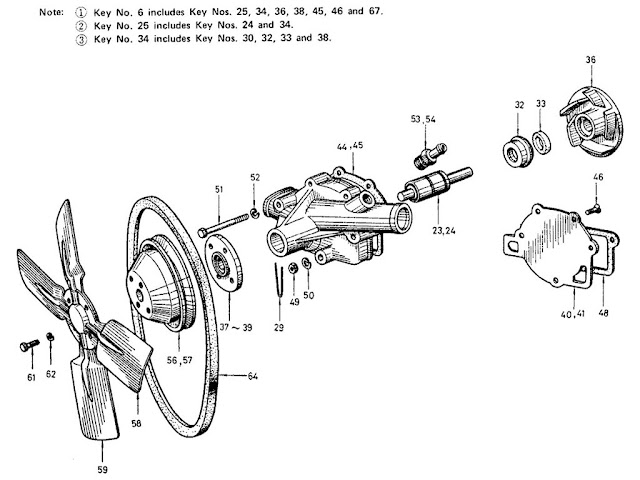

Datsun Fairlady Parts illustration no. 015-1 Water Pump & Fan 1600 (R16) (Exc. SPLU)

015 -1  Water Pump & Fan 1600 (R16) (Exc. SPLU)
KeyPart No.ModelApplied DateQty
FromTo
1WATER PUMP W/FAN CLUTCH & GASKET (INCH)
  21010-660011.6L (EXC SPLU)   -   1
2WATER PUMP W/FAN CLUTCH & GASKET (INCH)
  21010-660011.6L (EXC SPLU)   -   1
3WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-78226 1.6L (EXC SPLU)   -   1
4WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-782261.6L (EXC SPLU)   -   1
5WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-78226 1.6L (EXC SPLU)   -   1
6WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-782261.6L (EXC SPLU)   -   1
7WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-782261.6L (EXC SPLU)   -   1
8WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725SPLU   -   1
9WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725 SPLU   -   1
10WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725SPLU   -   1
11WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725SPLU   -   1
12WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725 SPLU   -   1
  21010-14701SPLU6710 -   1
13WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725 SPLU   -   1
  21010-14701SPLU6710 -   1
14WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725 SPLU   -   1
15WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725SPLU   -   1
16WATER PUMP W/FAN CLUTCH & GASKET (METRIC)
  21010-14725SPLU   -   1
17ASSY-FAN CLUTCH W/HUB PULLEY
  21095-25600SPLU6710 -   1
18FAN CLUTCH
  21150-25600SPLU6710 -   1
19BOLT-HEX M6
  08130-61610SPLU6710 -   4
20WASHER-LOCK
  08915-1361ASPLU6710 -   4
21BOLT BEARING
  21040-25600SPLU6710 -   1
22KIT-SEALS, WATER PUMP REPAIR
  21026-622251.6L   -   1
23BEARING-WATER PUMP
  21035-146001.6L   -   1
24BEARING-WATER PUMP
  21035-660011.6L (EXC SPLU)   -   1
25BEARING & SEAL SET
  21046-782001.6L (EXC SPLU)   -   1
26BEARING-WATER PUMP
  21035-14701SPLU   -   1
27BEARING-WATER PUMP
  21035-14701SPLU   -   1
28BEARING & SEAL SET
  21046-14700SPLU   -   1
29WIRE-LOCK
  21043-730001.6L   -   1
30WIRE-LOCK
  21043-730001.6L   -   1
31ASSY-SEAL, WATER PUMP
  21026-146001.6L   -   1
32ASSY-SEAL, WATER PUMP
  21026-850001.6L   -   1
33ASSY-SEAL, WATER PUMP
  21027-622001.6L   -   1
34SEAL & WIRE SET
  21047-Y7000 1.6L   -   1
35SEAL & WIRE SET
  21047-Y70001.6L   -   1
36VANE-WATER PUMP
  21022-622001.6L   -   1
37HUB WATER PUMP PULLEY
  21054-146001.6L (EXC SPLU)   -   1
38HUB WATER PUMP PULLEY
  21054-782001.6L (EXC SPLU)   -   1
39HUB WATER PUMP PULLEY
  21054-25500SPLU6710 -   1
40COVER-WATER PUMP
  21013-660011.6L   -   1
41COVER-WATER PUMP
  21013-660011.6L   -   1
42COVER-WATER PUMP
  21013-78202SPLU   -   1
43GASKET-WATER PUMP COVER
  21014-660011.6L   -   1
44GASKET-WATER PUMP COVER
  21014-660011.6L   -   1
45GASKET-WATER PUMP COVER
  21014-782021.6L   -   1
46SCREW MACHINE
  21012-013001.6L   -   2
47GASKET-WATER PUMP,BLOCK SIDE
  21074-692001.6L   -   1
48GASKET-WATER PUMP,BLOCK SIDE
  21074-692001.6L   -   1
49NUT TO FIX WATER PUMP
  00911-246101.6L   -   1
50WASHER-LOCK TO FIX WATER PUMP
  00915-116101.6L   -   1
51BOLT TO FIX WATER PUMP
  00111-560101.6L   -   2
52WASHER-LOCK TO FIX WATER PUMP
  00915-416101.6L   -   2
53CONNECTOR-CYLINDER HEAD TO WATER PUMP
  14059-146001.6L   - 67021
54CONNECTOR-CYLINDER HEAD TO WATER PUMP
  14507-146011.6L6703 -   1
55PLUG-TAPER
  08931-306101.6L   -   1
56PULLEY-FAN & WATER PUMP
  21051-122001.6L   -   1
57PULLEY WATER PUMP
  21051-25600SPLU6710 -   1
58BLADE-FAN, FRONT
  21061-322001.6L (EXC SPLU)   -   1
59BLADE-FAN, REAR
  21062-322001.6L (EXC SPLU)   -   1
60ASSY-FAN PLASTIC (7 BLADES)
  21060-25600SPLU   -   1
61BOLT
  00114-422101.6L   -   2
62WASHER-LOCK
  00915-214101.6L   -   2
63BELT-FAN
  21067-388001.6L   - 67021
64BELT-FAN
  21067-108001.6L (EXC SPLU)6703 -   1
65BELT-FAN
  11720-25604SPLU6703 -   1
66BELT-FAN
  21067-10600OP 1.6L   -   1
67PLUG WATER PUMP
  00933-1181A1.6L   -   1
68SPACER WATER PUMP
  21036-14700SPLU   -   1
