Datsun Fairlady 2000 (U20) Piston & Crankshaft

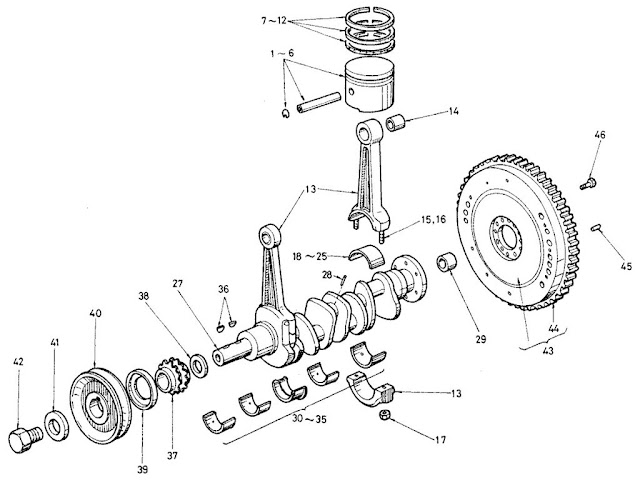

Datsun Fairlady Parts illustration no. 003A-1 Piston & Crankshaft 2000 (U20)

003A -1  Piston & Crankshaft 2000 (U20)
KeyPart No.ModelApplied DateQty
FromTo
1SET-PISTON W/PIN STD. SIZE
  12010-255112L   -   4
2SET-PISTON W/PIN OVER SIZE 0.25 M/M, 0.010 INCH
  12010-255122L   -   4
3SET-PISTON W/PIN OVER SIZE 0.50 M/M, 0.020 INCH
  12010-255132L   -   4
4SET-PISTON W/PIN OVER SIZE 0.75 M/M, 0.030 INCH
  12010-255142L   -   4
5SET-PISTON W/PIN OVER SIZE 1.00 M/M, 0.040 INCH
  12010-255152L   -   4
6SET-PISTON W/PIN OVER SIZE 1.50 M/M, 0.060 INCH
  12010-255172L   -   4
7SET-RING STD. SIZE (PISTON RINGS)
  12033-255022L   -   1
8SET-RING OVER SIZE 0.25 M/M, 0.010 INCH (PISTON RINGS)
  12035-255012L   -   1
9SET-RING OVER SIZE 0.50 M/M, 0.020 INCH (PISTON RINGS)
  12036-255012L   -   1
10SET-RING OVER SIZE 0.75 M/M, 0.030 INCH (PISTON RINGS)
  12037-255012L   -   1
11SET-RING OVER SIZE 1.00 M/M, 0.040 INCH (PISTON RINGS)
  12038-N85202L   -   1
12SET-RING OVER SIZE 1.50 M/M, 0.060 INCH (PISTON RINGS)
  12040-255012L   -   1
13ASSY-ROD, CONNECTING
  12100-255102L   -   4
14PISTON PIN
  12030-322002L   -   4
15BOLT-CONNECTING ROD (10,5T)
  12109-255002L   -   8
  12109-A74002L   -   8
16BOLT CONNECTING ROD (12T)
  12109-255002L   -   8
17NUT-CONNECTING ROD
  12113-255002L   -   8
18BUSHING-CONNECTING ROD (STANDARD) F770 (ROD BEARING)
  12111-P51002L   -   8
19BUSHING-CONNECTING ROD (STANDARD) F770 (ROD BEARING)
  12111-25510OP 2L   -   8
20BUSHING-CONNECTING ROD (0.06 M/M UNDER SIZE) F770 (ROD BEARING)
  12121-122102L   -   8
21BUSHING-CONNECTING ROD (0.12 M/M UNDER SIZE) F770 (ROD BEARING)
  12122-122102L   -   8
22BUSHING-CONNECTING ROD (0.25 M/M, 0.010 INCH UNDER SIZE) F770 (ROD BEARING)
  12117-P51002L   -   8
23BUSHING-CONNECTING ROD (0.50 M/M, 0.020 INCH UNDER SIZE) F770 (ROD BEARING)
  12118-P51122L   -   8
24BUSHING-CONNECTING ROD (0.75 M/M, 0.030 INCH UNDER SIZE) F770 (ROD BEARING)
  12119-P51122L   -   8
25BUSHING-CONNECTING ROD (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (ROD BEARING)
  12120-P51122L   -   8
26ASSY-SHAFT, CRANK (CRANKSHAFT)
  12200-A74002L   -   1
27ASSY-SHAFT, CRANK (CRANKSHAFT)
  12200-A74002L   -   1
28PLUG-OIL GALLERY
  00931-206102L   -   4
29BUSHING-PILOT BEARING
  32202-B95002L   -   1
30SET-BUSHING, CRANK SHAFT (STANDARD) F770 (MAIN BEARING)
  12207-E07022L   -   1
31SET-BUSHING, CRANK SHAFT (STANDARD) F770 (MAIN BEARING)
  12207-E0702OP 2L   -   1
32SET-BUSHING, CRANK SHAFT (0.25 M/M, 0.010 INCH UNDER SIZE) F770 (MAIN BEARING)
  12209-E07022L   -   1
33SET-BUSHING, CRANK SHAFT (0.50 M/M, 0.020 INCH UNDER SIZE) F770 (MAIN BEARING)
  12210-E07022L   -   1
34SET-BUSHING, CRANK SHAFT (0.75 M/M, 0.030 INCH UNDER SIZE) F770 (MAIN BEARING)
  12211-784002L   -   1
35SET-BUSHING, CRANK SHAFT (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (MAIN BEARING)
  12212-784002L   -   1
36KEY-WOODRUFF 5 X 16
  00926-516002L   -   2
37GEAR-CRANK (CRANKSHAFT GEAR)
  13021-201002L   -   2
38SHIM-CRANK GEAR (SHIM-CRANKSHAFT
  12299-322002L   -
39THROWER-OIL CRANK (SLINGER-OIL)
  12302-201002L   -   1
40ASSY-PULLEY WITH DAMPER (PULLEY-CRANK)
  12303-255002L   -   1
41WASHER-CRANK PULLEY
  12308-650002L   -   1
42BOLT-PULLEY
  12309-666002L   -   1
43ASSY-FLYWHEEL
  12310-255002L   -   1
44GEAR-RING, FLYWHEEL
  12312-19G002L   -   1
45DOWELL-FLYWHEEL TO CLUTCH
  12313-106002L   -   3
46BOLT-SOCKET HEAD (FLYWHEEL)
  12315-255002L   -   12
SET-PISTON W/PIN STD. SIZE / SET-PISTON W/PIN OVER SIZE 1.50 M/M, 0.060 INCH SET-RING STD. SIZE (PISTON RINGS) / SET-RING OVER SIZE 1.50 M/M, 0.060 INCH (PISTON RINGS) ASSY-ROD, CONNECTING NUT-CONNECTING ROD BUSHING-CONNECTING ROD (STANDARD) F770 (ROD BEARING) / BUSHING-CONNECTING ROD (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (ROD BEARING) PLUG-OIL GALLERY BUSHING-PILOT BEARING ASSY-SHAFT, CRANK (CRANKSHAFT) GEAR-CRANK (CRANKSHAFT GEAR) SHIM-CRANK GEAR (SHIM-CRANKSHAFT THROWER-OIL CRANK (SLINGER-OIL) WASHER-CRANK PULLEY BOLT-PULLEY ASSY-FLYWHEEL BOLT-SOCKET HEAD (FLYWHEEL) ASSY-ROD, CONNECTING PISTON PIN BOLT-CONNECTING ROD (10,5T) / BOLT CONNECTING ROD (12T) SET-BUSHING, CRANK SHAFT (STANDARD) F770 (MAIN BEARING) / SET-BUSHING, CRANK SHAFT (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (MAIN BEARING) KEY-WOODRUFF 5 X 16 ASSY-PULLEY WITH DAMPER (PULLEY-CRANK) GEAR-RING, FLYWHEEL DOWELL-FLYWHEEL TO CLUTCH
SET-PISTON W/PIN STD. SIZE / SET-PISTON W/PIN OVER SIZE 1.50 M/M, 0.060 INCH SET-RING STD. SIZE (PISTON RINGS) / SET-RING OVER SIZE 1.50 M/M, 0.060 INCH (PISTON RINGS) ASSY-ROD, CONNECTING NUT-CONNECTING ROD BUSHING-CONNECTING ROD (STANDARD) F770 (ROD BEARING) / BUSHING-CONNECTING ROD (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (ROD BEARING) PLUG-OIL GALLERY BUSHING-PILOT BEARING ASSY-SHAFT, CRANK (CRANKSHAFT) GEAR-CRANK (CRANKSHAFT GEAR) SHIM-CRANK GEAR (SHIM-CRANKSHAFT THROWER-OIL CRANK (SLINGER-OIL) WASHER-CRANK PULLEY BOLT-PULLEY ASSY-FLYWHEEL BOLT-SOCKET HEAD (FLYWHEEL) ASSY-ROD, CONNECTING PISTON PIN BOLT-CONNECTING ROD (10,5T) / BOLT CONNECTING ROD (12T) SET-BUSHING, CRANK SHAFT (STANDARD) F770 (MAIN BEARING) / SET-BUSHING, CRANK SHAFT (1.00 M/M, 0.040 INCH UNDER SIZE) F770 (MAIN BEARING) KEY-WOODRUFF 5 X 16 ASSY-PULLEY WITH DAMPER (PULLEY-CRANK) GEAR-RING, FLYWHEEL DOWELL-FLYWHEEL TO CLUTCH
