Datsun Fairlady 1600/2000 Exhaust Tube & Muffler (1965-1967.5)

To C/# SP311-03000, SPL311-17000, SR311-00007, SRL311-00069

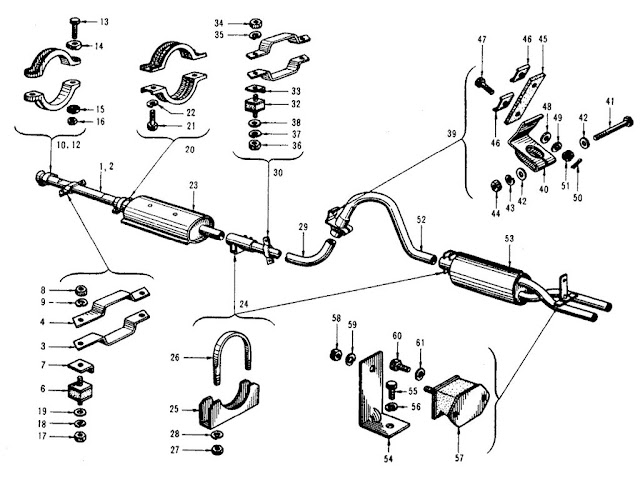

Datsun Fairlady Parts illustration no. 014-1 Exhaust Tube & Muffler (1965-1967.5) (To C/# SP311-03000, SPL311-17000, SR311-00007, SRL311-00069)

014 -1  Exhaust Tube & Muffler (1965-1967.5) (To C/# SP311-03000, SPL311-17000, SR311-00007, SRL311-00069)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-TUBE, EXHAUST FRONT, WITH CLAMP
  20011-163501.6L   -   1
2ASSY-TUBE, EXHAUST FRONT, WITH CLAMP
  20011-255502L   -   1
3CLAMP-EXHAUST TUBE
  20611-12200ALL   -   1
4CLAMP-EXHAUST TUBE
  20612-12200ALL   -   1
5MOUNTING-RUBBER, EXHAUST TUBE
  20220-14600ALL   -   2
6MOUNTING-RUBBER, EXHAUST TUBE
  20220-14600ALL   -   2
7INSULATOR-MOUNTING EXHAUST
  20613-12200ALL   -   2
8NUT TO FIX CLAMP
  00911-24510ALL   -   2
9WASHER-LOCK TO FIX CLAMP
  00915-11510ALL   -   2
10ASSY-CLAMP, EXHAUST FRONT TUBE, FRONT
  20013-322501.6L   -   1
11CLAMP-MUFFLER, FRONT LOWER
  20013-255012L   -   2
12CLAMP-MUFFLER, FRONT LOWER
  20013-255012L   -   2
13BOLT
  00114-55010ALL   -   2
14SEAT-EXHAUST TUBE CLAMP
  20014-04100ALL   -   2
15SEAT-EXHAUST TUBE CLAMP
  20015-04100ALL   -   2
16NUT
  14039-30000ALL   -   2
17NUT-TO FIX EXHAUST TUBE TO FRAME
  00911-24510ALL   -   2
18WASHER-LOCK TO FIX EXHAUST TUBE TO FRAME
  00915-11510ALL   -   2
19WASHER-PLAIN TO FIX EXHAUST TUBE TO FRAME
  00915-41500ALL   -   2
20ASSY-CLAMP, MUFFLER TO FRONT TUBE
  20132-32251ALL   -   1
21BOLT
  00114-52210ALL   -   2
22WASHER-LOCK
  00915-11510ALL   -   2
23ASSY-MUFFLER
  20101-16300ALL   -   1
24ASSY-CLAMP, EXHAUST TUBE, "U" BOLT
  20023-04550ALL   -   2
25CLAMP-EXHAUST TUBE FRONT
  20023-04550ALL   -   2
26"U" BOLT-EXHAUST TUBE CLAMP
  20031-04500ALL   -   2
27NUT
  00911-24510ALL   -   4
28WASHER-LOCK
  00915-11510ALL   -   4
29TUBE-EXHAUST CENTER
  20201-10400ALL   -   1
30ASSY-CLAMP, EXHAUST TUBE, 2ND
  20023-10451ALL   -   1
31MOUNTING-RUBBER, EXHAUST TUBE
  20220-14600ALL   -   2
32MOUNTING-RUBBER, EXHAUST TUBE
  20220-14600ALL   -   2
33INSULATOR-MOUNTING, EXHAUST
  20613-12200ALL   -   2
34NUT-TO FIX CLAMP TO MOUNTING RUBBER
  00911-24510ALL   -   2
35WASHER-LOCK TO FIX CLAMP TO MOUNTING RUBBER
  00915-11510ALL   -   2
36NUT-TO FIX MOUNTING RUBBER TO BRACKET
  00911-24510ALL   -   2
37WASHER-LOCK TO FIX MOUNTING RUBBER TO BRACKET
  00915-11510ALL   -   2
38WASHER-PLAIN TO FIX MOUNTING RUBBER TO BRACKET
  00915-41500ALL   -   2
39ASSY-CLAMP, EXHAUST TUBE, CENTER
  20641-10451ALL   -   1
40CLAMP-EXHAUST TUBE
  20641-10400ALL   -   1
41BOLT
  00114-56510ALL   -   1
42WASHER-PLAIN
  00915-41500ALL   -   1
43WASHER-LOCK
  00915-11510ALL   -   1
44NUT
  00911-24510ALL   -   1
45STRAP-EXHAUST HANGER
  20632-10600     -   1
46WASHER-STRAP
  20622-10600ALL   -   2
47BOLT TO FIX REAR TUBE TO CENTER TUBE
  00114-52210ALL   -   2
48WASHER-PLAIN TO FIX REAR TUBE TO CENTER TUBE
  00915-41500ALL   -   2
49WASHER-LOCK TO FIX REAR TUBE TO CENTER TUBE
  00915-11510ALL   -   2
50COTTER-PIN TO FIX REAR TUBE TO CENTER TUBE
  00921-11810ALL   -   2
51NUT TO FIX REAR TUBE TO CENTER TUBE
  00911-74510ALL   -   2
52TUBE-EXHAUST, REAR
  20211-10401ALL   -   1
53ASSY-BOOSTER, WITH TAIL PIPE CLAMP
  20300-10450ALL   -   1
54HANGER-EXHAUST TUBE, REAR
  20216-10401ALL   -   1
55BOLT
  00114-51610ALL   -   1
56WASHER-LOCK
  00915-11510ALL   -   1
57COMP-MOUNTING
  11328-30001ALL   -   1
58NUT
  00911-24510ALL   -   1
59WASHER-LOCK
  00915-11510ALL   -   1
60BOLT
  00114-51610ALL   -   2
61WASHER-LOCK
  00915-11510ALL   -   2
BOLT ASSY-TUBE, EXHAUST FRONT, WITH CLAMP WASHER-LOCK TO FIX CLAMP TO MOUNTING RUBBER MOUNTING-RUBBER, EXHAUST TUBE WASHER-LOCK BOLT ASSY-CLAMP, MUFFLER TO FRONT TUBE ASSY-MUFFLER WASHER-LOCK TO FIX MOUNTING RUBBER TO BRACKET ASSY-CLAMP, EXHAUST TUBE, CENTER BOLT TO FIX REAR TUBE TO CENTER TUBE STRAP-EXHAUST HANGER ASSY-CLAMP, EXHAUST TUBE, "U" BOLT BOLT WASHER-LOCK TO FIX REAR TUBE TO CENTER TUBE COTTER-PIN TO FIX REAR TUBE TO CENTER TUBE SEAT-EXHAUST TUBE CLAMP SEAT-EXHAUST TUBE CLAMP NUT ASSY-CLAMP, EXHAUST FRONT TUBE, FRONT CLAMP-MUFFLER, FRONT LOWER NUT-TO FIX CLAMP TO MOUNTING RUBBER INSULATOR-MOUNTING, EXHAUST ASSY-CLAMP, EXHAUST TUBE, 2ND WASHER-PLAIN TO FIX MOUNTING RUBBER TO BRACKET NUT-TO FIX MOUNTING RUBBER TO BRACKET WASHER-STRAP WASHER-STRAP TUBE-EXHAUST CENTER WASHER-PLAIN TO FIX REAR TUBE TO CENTER TUBE WASHER-PLAIN CLAMP-EXHAUST TUBE NUT ASSY-BOOSTER, WITH TAIL PIPE CLAMP TUBE-EXHAUST, REAR COMP-MOUNTING BOLT WASHER-LOCK "U" BOLT-EXHAUST TUBE CLAMP CLAMP-EXHAUST TUBE FRONT WASHER-LOCK NUT NUT TO FIX CLAMP WASHER-LOCK TO FIX CLAMP CLAMP-EXHAUST TUBE NUT-TO FIX EXHAUST TUBE TO FRAME WASHER-PLAIN TO FIX EXHAUST TUBE TO FRAME NUT TO FIX REAR TUBE TO CENTER TUBE WASHER-PLAIN WASHER-LOCK HANGER-EXHAUST TUBE, REAR WASHER-LOCK WASHER-LOCK BOLT NUT CLAMP-EXHAUST TUBE INSULATOR-MOUNTING EXHAUST MOUNTING-RUBBER, EXHAUST TUBE WASHER-LOCK TO FIX EXHAUST TUBE TO FRAME
