Datsun Fairlady 1600/2000 Exhaust Tube & Muffler (1967.5-1970)

From C/# SP311-03001, SPL311-17001, SR311-00008, SRL311-00070

From C/# SP311-03001, SPL311-17001, SR311-00008, SRL311-00070

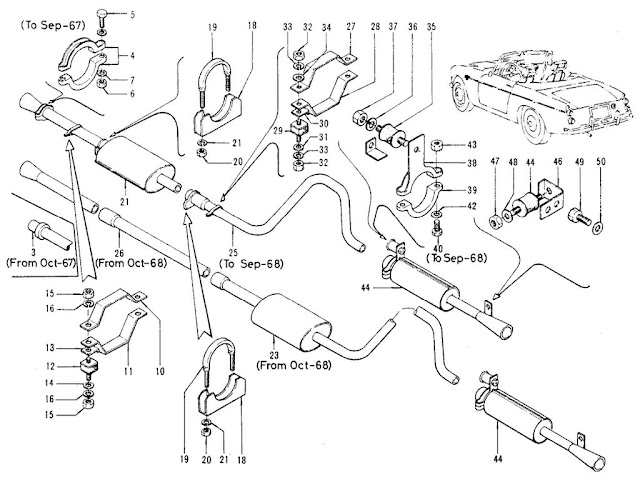

Datsun Fairlady Parts illustration no. 014A-1 Exhaust Tube & Muffler (1967.5-1970) (From C/# SP311-03001, SPL311-17001, SR311-00008, SRL311-00070)

014A -1  Exhaust Tube & Muffler (1967.5-1970) (From C/# SP311-03001, SPL311-17001, SR311-00008, SRL311-00070)
KeyPart No.ModelApplied DateQty
FromTo
1TUBE-FRONT W/CLAMP
  20011-163501.6L   - 67091
2TUBE-FRONT W/CLAMP
  20011-255512L   - 67091
3TUBE-FRONT W/CLAMP
  20010-25950ALL6710 -   1
4CLAMP TO EXHAUST
  20013-255012L   -   2
5BOLT
  00114-528102L   - 67092
6NUT
  14039-300002L   - 67092
7WASHER
  00915-115102L   - 67092
8PLATE-TUBE END
  20601-25900ALL6710 -   1
9NUT-MANIFOLD TO TUBE
  20650-37700ALL6710 -   1
10CLAMP-UPPER
  20665-25500ALL   -   1
11CLAMP-LOWER
  20666-25500ALL   -   1
12MOUNT-RUBBER
  20220-25500ALL   -   2
13INSULATOR
  20613-12200ALL   -   2
14SHIM-EXHAUST
  20614-14600ALL   -   2
15NUT
  00911-24510ALL   -   4
16WASHER-LOCK
  00915-11510ALL   -   4
17WASHER-PLAIN
  00915-41500ALL   -   2
18CLAMP-EXHAUST PIPE
  20102-25500ALL   -   2
19U BOLT-EXHAUST PIPE
  20103-25500ALL   -   2
20NUT
  00911-24510ALL   -   4
21WASHER
  00915-11510ALL   -   4
22ASSY-MUFFLER
  20101-25500ALL   - 68091
23ASSY-MUFFLER
  20101-A3200ALL6810 -   1
24ASSY-TUBE EXHAUST W/CENTER CLAMP
  20201-25551ALL   -   1
25ASSY-TUBE EXHAUST W/CENTER CLAMP
  20201-25551ALL   - 68091
26ASSY-TUBE EXHAUST W/CENTER CLAMP
  20201-A3250ALL6810 -   1
27CLAMP-UPPER
  20667-25500ALL   -   1
28CLAMP-LOWER
  20668-25500ALL   -   1
29MOUNT-RUBBER
  20220-25500ALL   -   2
30INSULATOR
  20613-12200ALL   -   2
31SHIM-EXHAUST
  20614-14600ALL   -   2
32NUT
  00911-24510ALL   -   4
33WASHER-LOCK
  00915-11510ALL   -   4
34WASHER-PLAIN
  00915-41500ALL   -   2
35RUBBER-MOUNTING
  20303-25500ALL   -   1
36WASHER
  00915-11510ALL   -   2
37NUT
  00911-24510ALL   -   2
38CLAMP-UPPER
  20202-25500ALL   -   1
39CLAMP-LOWER
  20661-73201ALL   -   1
40BOLT
  00114-52210ALL   - 68092
41BOLT-HEX
  00114-52810ALL6810 -   2
42WASHER
  00915-11510ALL   -   2
43NUT
  00911-24510ALL   -   2
44ASSY-BOOSTER
  20300-25500ALL   -   1
45RUBBER-MOUNTING
  20303-25500ALL   -   1
46BRACKET
  20304-25500ALL   -   1
47NUT
  00911-24510ALL   -   2
48WASHER
  00915-11510ALL   -   2
49BOLT
  00114-51610ALL   -   2
50WASHER
  00915-11510ALL   -   2
