Fuel Piping

Datsun Fairlady 1600/2000 Fuel Piping

Datsun Fairlady Parts illustration no. 011A-1 Fuel Piping To Sep.-'67

011A -1 Fuel Piping To Sep.-'67

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	FUEL HOSE, STRAINER TO PUMP
	17518-08800	1.6L		-	6709	1

2	FUEL HOSE, STRAINER TO PUMP
	17518-14600	1.6L (EXC SPLU)	6710	-		1

3	FUEL HOSE, STRAINER TO PUMP
	17518-25500	2L		-	6709	1

4	FUEL HOSE, STRAINER TO PUMP
	17519-25901	2L & SPLU	6710	-		2

5	CLAMP-TUBE, FLEXIBLE
	00721-17310	1.6L		-		2

6	CLAMP-TUBE, FLEXIBLE
	01555-00411	2L		-		2

7	CLAMP-TUBE, FLEXIBLE
	01555-00181	ALL		-		2

8	TUBE-FUEL PUMP TO CARBURETOR
	17522-14601	1.6L		-	6702	1

9	TUBE-FUEL PUMP TO CARBURETOR
	17522-14603	1.6L	6703	-		1

10	TUBE-FUEL PUMP TO CARBURETOR (L-190)
	17526-H0100	1.6L (EXC SPLU)		-		1

11	TUBE-FUEL PUMP TO CARBURETOR (L-210)
	17526-14605	1.6L (EXC SPLU)		-		1

12	TUBE-FUEL FRONT
	17524-14700	SPLU	6710	-		1

13	TUBE-FUEL REAR
	17526-H0100	SPLU		-		1

14	TUBE-FUEL REAR (L-100)
	17526-H0100	SPLU		-		1

15	TUBE-FUEL PUMP TO CARBURETOR
	17522-14701	SPLU		-		1

16	TUBE-FUEL PUMP TO CARBURETOR (L-810)
	17522-14701	SPLU		-		1

17	CLAMP FUEL TUBE (150)
	16439-22100	ALL		-		4

18	CLAMP FUEL PIPE
	17105-14701	SPLU		-		1

19	STAY-TUBE, PUMP TO CARBURETOR
	17107-14602	1.6L		-		1

20	BOLT
	00111-51210	1.6L		-		2

21	WASHER-LOCK
	00915-11510	1.6L		-		2

22	ASSY-TUBE, FUEL PUMP TO CONNECTOR 640MM FOR SOLEX & SU
	A8742-20020	2L		-		1

23	ASSY-TUBE, FUEL PUMP TO CONNECTOR 640MM FOR SOLEX & SU
	A8742-20020	2L (EXC SRLU SU)		-		1

24	ASSY-TUBE, FUEL PUMP TO CONNECTOR 640MM FOR SOLEX & SU
	A8742-20020	2L (EXC SRLU SU)		-		1

25	ASSY-TUBE, CONNECTOR TO CARBURETOR FRONT 150MM
	17524-25500	2L SOLEX		-		1

26	ASSY-TUBE, CONNECTOR TO CARBURETOR FRONT
	17524-25502	2L SOLEX		-		1

27	ASSY-TUBE, CONNECTOR TO CARBURETOR FRONT (L-165)
	17524-25502	2L SOLEX		-		1

28	ASSY-TUBE, CONNECTOR TO CARBURETOR 310MM
	17526-25602	2L SOLEX		-		1

29	ASSY-TUBE, CONNECTOR TO CARBURETOR 310MM
	17526-25602	2L SOLEX		-		1

30	ASSY-TUBE, CONNECTOR TO CARBURETOR 310MM
	17526-25602	2L SOLEX		-		1

31	TUBE-CONNECTOR TO CARBURETOR REAR
	17526-25502	2L SOLEX		-		1

32	TUBE-CONNECTOR TO CARBURETOR REAR (L-360)
	17526-25502	2L SOLEX		-		1

33	CONNECTOR 3 WAY
	17107-25500	2L SOLEX		-		1

34	CONNECTOR 4-WAY
	17107-25501	2L SOLEX		-		1

35	TUBE FUEL COOLING
	17527-25500	2L SOLEX		-		1

36	CLAMP TUBE FUEL FRONT
	17106-25502	2L SOLEX		-		1

37	TUBE FUEL COOLING
	17527-25503	2L SOLEX		-		1

38	TUBE FUEL COOLING CENTER
	17527-25503	2L SOLEX		-		1

39	TUBE FUEL COOLING CENTER
	17527-25502	2L SOLEX		-		1

40	TUBE FUEL COOLING REAR (120)
	17106-73400	2L SOLEX		-		1

41	TUBE FUEL COOLING REAR (150)
	17107-25500	2L SOLEX		-		1

42	ASSY-TUBE, CONN TO CARBURETOR FRONT 240MM
	17524-25601	2L SU EXC SRLU		-		1

43	ASSY-TUBE, CONN TO CARBURETOR FRONT 240MM
	17524-25601	2L SU EXC SRLU		-		1

44	TUBE-FUEL PUMP TO CARBURETOR
	17522-25603	SRLU (SU)		-		1

45	TUBE-FUEL PUMP TO CARBURETOR (L-1010)
	17522-25603	SRLU (SU)		-		1

46	ASSY-TUBE, CONN TO CARBURETOR REAR 290MM
	17526-25602	2L SU EXC SRLU		-		1

47	ASSY-TUBE, CONN TO CARBURETOR REAR 290MM
	17526-25602	2L SU EXC SRLU		-		1

48	TUBE-FUEL REAR
	17526-25603	SRLU (SU)		-		1

49	TUBE-FUEL REAR (L-55)
	17526-25603	SRLU (SU)		-		1

50	CONNECTOR-3 WAY
	17107-20101	2L SU		-		1

51	CONNECTOR-3 WAY
	17107-20101	2L SU		-		1

52	TUBE-FUEL RETURN
	17527-73401	SPLU, SRLU	6710	-		1

53	CLAMP-FUEL PIPE
	17105-14701	SPLU		-		1

	CLAMP-FUEL PIPE
	17105-14700	SPLU	6710	-		1

54	CLAMP-FUEL PIPE
	17106-25500	SRLU	6710	-		1

55	TUBE-CONNECTOR TO STRAINER
	17502-14600	1.6L		-	6702	1

56	TUBE-CONNECTOR TO STRAINER
	17502-25500	ALL	6703	-	6709	1

57	TUBE-CONNECTOR TO STRAINER
	16409-25900	ALL	6710	-		1

58	TUBE-CONNECTOR TO STRAINER
	17504-25902	ALL	6710	-		1

59	CONNECTOR-FUEL TUBE
	17512-09100	ALL		-		1

60	TUBE-TANK TO CONNECTOR
	17503-14600	ALL		-	6709	1

61	TUBE-TANK TO CONNECTOR
	17505-25901	ALL	6710	-		1

62	TUBE-CONNECTOR TO CARBURETOR
	17504-26000	EMISSION CONTROL	6710	-		1

63	TUBE-CONNECTOR TO CONNECTOR
	17502-26000	EMISSION CONTROL	6710	-		1

64	CONNECTOR-FUEL TUBE
	17512-26000	EMISSION CONTROL		-		2

65	TUBE-CONNECTOR TO TANK
	17503-26000	USA	6710	-	6809	1

66	TUBE-CONNECTOR TO TANK
	17503-A3300	EMISSION CONTROL	6810	-		1

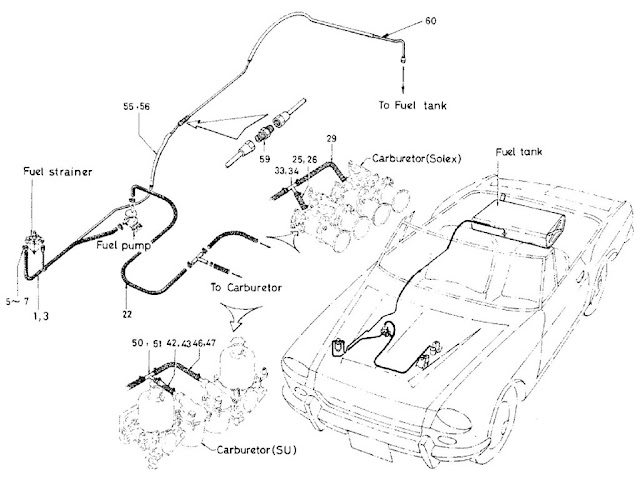

Datsun Fairlady illustration no. 011A-1 Fuel Piping To Sep.-'67

Fuel Piping To Sep.-'67

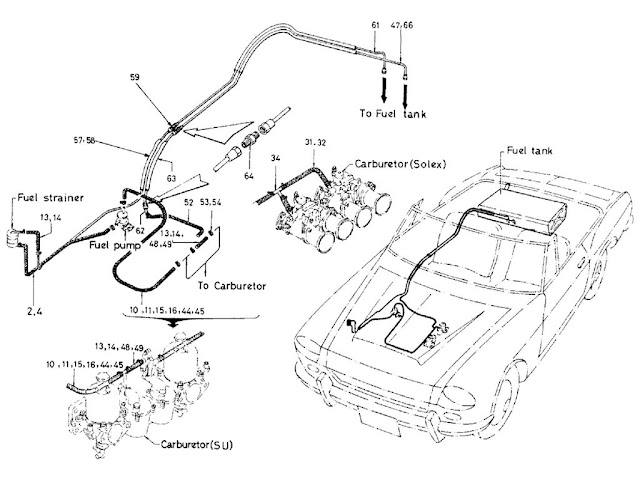

Datsun Fairlady illustration no. 011A-2 Fuel Piping From Oct.-'67

Fuel Piping From Oct.-'67
