Datsun Fairlady 1600/2000 Fuel Tank (Evapo)

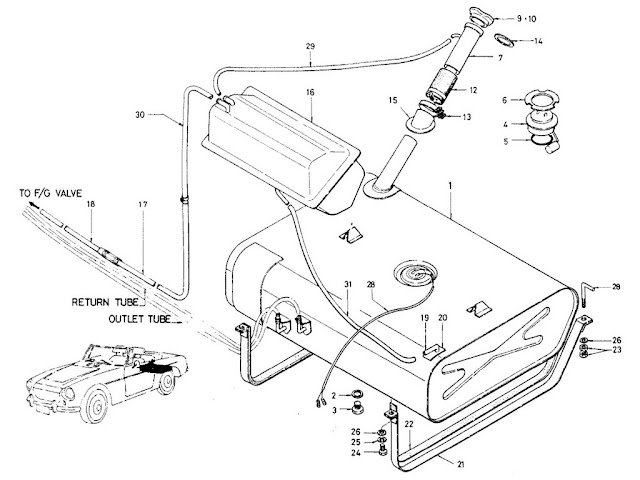

Datsun Fairlady Parts illustration no. 010A-1 Fuel Tank (Evapo)

010A -1  Fuel Tank (Evapo)
KeyPart No.ModelApplied DateQty
FromTo
1ASSU-TANK, FUEL
  17201-A7800EVAPO   -   1
2GASKET-DRAIN, SEAL
  A7312-B3000EVAPO   -   1
3PLUG-DRAIN, FUEL TANK
  00931-44810EVAPO   -   1
4GAUGE-FUEL TANK (SENDER)
  25060-14601EVAPO   -   1
5O-RING FUEL GAUGE
  17342-18000EVAPO   -   1
6PLATE-LOCK FUEL GAUGE
  17343-14801EVAPO   -   1
7ASSY-TUBE INLET FUEL TANK
  17218-A7800EVAPO   -   1
8TUBE INLET TUBE TO RESERVOIR TANK (NOT ADOPTED)
  17220-A7800EVAPO   -   1
9ASSY CAP FILLER
  17251-A7801EVAPO   -   1
10ASSY CAP FILLER
  17251-A7801EVAPO   -   1
11HOSE FUEL TANK
  17229-08000EVAPO   -   1
12HOSE FUEL TANK
  17229-08000EVAPO   -   1
13CLAMP-HOSE
  21505-19900EVAPO   -   2
14GROMMET RUBBER
  17455-25760EVAPO   -   1
15GROMMET RUBBER
  17456-25900EVAPO   -   1
16ASSY-TANK, RESERVOIR
  17350-A7800EVAPO   -   1
17ASSY-TUBE, AIR SUPPLIER FRONT
  17508-A7800EVAPO   -   1
18ASSY-TUBE, AIR SUPPLIER REAR
  17509-A7800EVAPO   -   1
19ASSY-TUBE, VENTILATION (NOT FOR SALE)
  17225-A7800EVAPO   -   1
20PLATE VENTILATION TUBE (NOT FOR SALE)
  17227-A7800EVAPO   -   1
21ASSY-BAND, FUEL TANK MOUNTING
  17406-25900EVAPO   -   2
22PAD FUEL TANK MOUNTING
  17416-10400EVAPO   -   4
23NUT
  00911-34510EVAPO   -   4
24BOLT
  00114-51810EVAPO   -   2
25WASHER-LOCK
  00915-11510EVAPO   -   2
26WASHER-PLAIN
  00915-41500EVAPO   -   4
27BOLT-BAND, GAS TANK
  17425-14600EVAPO   -   2
28ASSY-CABLE, FUEL GAUGE
  24017-25900EVAPO   -   1
29TUBE FLEXIBLE RUBBER (L-1650)
  17518-A7800EVAPO   -   1
30TUBE FLEXIBLE RUBBER (L-630)
  17519-A7800EVAPO   -   1
31TUBE FLEXIBLE RUBBER
  17518-14600EVAPO   -   1
32HOSE CLAMP
  16439-N210AEVAPO   -   4
33CLIP
  24210-89920EVAPO   -   3
