Datsun Fairlady 1600/2000 Fuel Tank (Exc. Evapo)

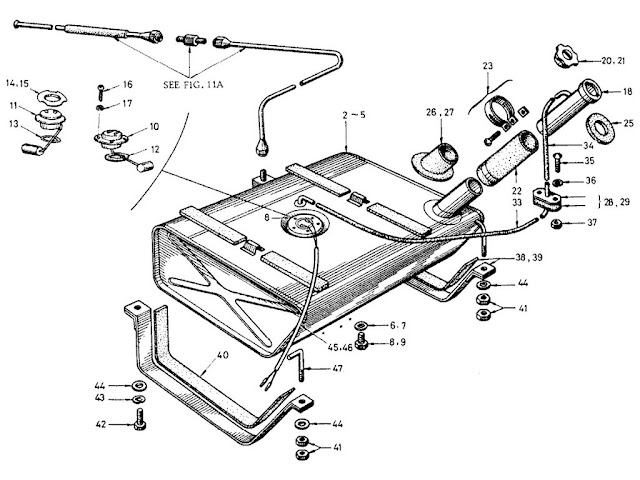

Datsun Fairlady Parts illustration no. 011-1 Fuel Tank (Exc. Evapo)

011 -1  Fuel Tank (Exc. Evapo)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-TANK,FUEL
  17201-146021.6L (EXC EVAPO)   - 67091
2ASSY-TANK,FUEL
  17201-14602ALL (EXC EVAPO)6703 - 67091
3ASSY-TANK,FUEL
  17201-25900ALL (EXC USA)6710 -   1
4ASSY-TANK,FUEL
  17201-A3300USA (EXC EVAPO)   -   1
5ASSY-TANK,FUEL
  17201-A3300USA (EXC EVAPO)   -   1
6GASKET-DRAIN SEAT
  A7312-B3000 1.6L (EXC EVAPO)   -   1
7GASKET-DRAIN SEAT
  A7312-B3000ALL (EXC EVAPO)6703 -   1
8PLUG-DRAIN, FUEL TANK
  00931-448101.6L (EXC EVAPO)   -   1
9PLUG-DRAIN, FUEL TANK
  00931-44810ALL (EXC EVAPO)6703 -   1
10GAUGE-FUEL TANK (SENDER)
  25060-14600ALL (EXC EVAPO)   - 67021
11GAUGE-FUEL TANK (SENDER)
  25060-14601ALL (EXC EVAPO)6703 -   1
12GASKET-GAUGE
  17293-10900ALL (EXC EVAPO)   - 67091
13O-RING-FUEL GAUGE
  17342-18000ALL (EXC EVAPO)6703 -   1
14PLATE-LOCK FUEL GAUGE
  17343-14801ALL (EXC EVAPO)6703 -   1
15PLATE-LOCK FUEL GAUGE
  17343-14801ALL (EXC EVAPO)6703 -   1
16SCREW-GAUGE
  00310-81210ALL (EXC EVAPO)   - 67095
17WASHER-GAUGE
  00915-10810ALL (EXC EVAPO)   - 67095
18ASSY-TUBE, INLET, FUEL TANK
  17218-10400ALL (EXC EVAPO)   -   1
19ASSY-CAP, FILLER
  17251-095011.6L (EXC EVAPO)   -   1
20ASSY-CAP, FILLER
  17251-095011.6L (EXC EVAPO)   - 67021
21ASSY-CAP, FILLER
  17251-25500ALL (EXC EVAPO)6703 -   1
22HOSE-FUEL TANK (INLET TUBE TO FILLER)
  17229-08000ALL (EXC EVAPO)   -   1
23CLAMP HOSE
  21505-19900ALL (EXC EVAPO)   -   1
24CLAMP-HOSE
  21505-19900ALL (EXC EVAPO)   -   2
25GROMMET-RUBBER
  17455-25760ALL (EXC EVAPO)   -   1
26GROMMET-RUBBER
  17456-10400ALL (EXC EVAPO)   - 67091
27GROMMET-RUBBER
  17456-25900ALL (EXC EVAPO)6710 -   1
28ASSY-TUBE, VENTILATION, MIDDLE
  17234-10401ALL (EXC EVAPO)   -   1
29ASSY-TUBE, VENTILATION, MIDDLE
  17234-10401ALL (EXC EVAPO)   -   1
30CLAMP-HOSE
  01555-00181ALL (EXC EVAPO)   -   4
31CLAMP-HOSE
  16439-22100ALL (EXC EVAPO)   -   1
32GASKET-VENTILATION, TUBE
  17227-10400ALL (EXC EVAPO)   -   1
33HOSE-VENTILATION TUBE, LOWER
  17231-10400ALL (EXC EVAPO)   -   1
34HOSE-VENTILATION TUBE, UPPER
  17232-14600ALL (EXC EVAPO)   -   1
35SCREW
  00314-01210ALL (EXC EVAPO)   -   2
36WASHER-LOCK
  00915-11010ALL (EXC EVAPO)   -   2
37NUT
  00911-14010ALL (EXC EVAPO)   -   2
38ASSY-BAND, FUEL TANK MOUNTING
  17406-14600ALL (EXC EVAPO)   - 67092
39ASSY-BAND, FUEL TANK MOUNTING
  17406-25900ALL (EXC EVAPO)6710 -   2
40PAD FUEL TANK MOUNTING
  17416-10400ALL (EXC EVAPO)   -   4
41NUT
  00911-34510ALL (EXC EVAPO)   -   4
42BOLT
  00114-51810ALL (EXC EVAPO)   -   2
43WASHER-LOCK
  00915-11510ALL (EXC EVAPO)   -   2
44WASHER-PLAIN
  00915-41500ALL (EXC EVAPO)   -   4
45ASSY-CABLE, FUEL GAUGE
  24017-14600ALL (EXC EVAPO)   - 67091
46ASSY-CABLE, FUEL GAUGE
  24017-25900ALL (EXC EVAPO)6710 -   1
47BOLT-BAND, GAS TANK
  17425-14600ALL (EXC EVAPO)   -   2
48JOINT TUBE
  17299-76500USA (EXC EVAPO)6710 -   1
ASSY-TANK,FUEL GAUGE-FUEL TANK (SENDER) GASKET-GAUGE O-RING-FUEL GAUGE WASHER-GAUGE ASSY-TUBE, INLET, FUEL TANK PLUG-DRAIN, FUEL TANK ASSY-CAP, FILLER CLAMP HOSE GROMMET-RUBBER HOSE-VENTILATION TUBE, LOWER SCREW NUT NUT BOLT-BAND, GAS TANK GASKET-DRAIN SEAT PLUG-DRAIN, FUEL TANK GAUGE-FUEL TANK (SENDER) PLATE-LOCK FUEL GAUGE SCREW-GAUGE HOSE-FUEL TANK (INLET TUBE TO FILLER) GROMMET-RUBBER ASSY-TUBE, VENTILATION, MIDDLE HOSE-VENTILATION TUBE, UPPER WASHER-LOCK ASSY-BAND, FUEL TANK MOUNTING PAD FUEL TANK MOUNTING BOLT WASHER-LOCK WASHER-PLAIN WASHER-PLAIN WASHER-PLAIN NUT ASSY-CABLE, FUEL GAUGE
