Datsun Fairlady 1600/2000 Clutch

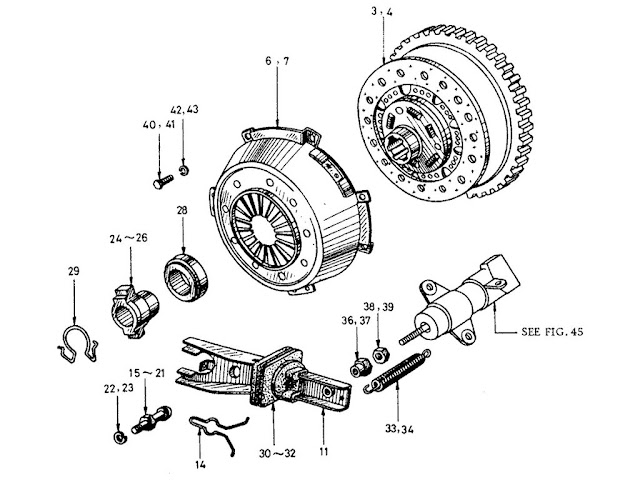

Datsun Fairlady Parts illustration no. 029-1 Clutch

029 -1  Clutch
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-DISC, CLUTCH
  30100-N8488 ALL   -   1
2ASSY-DISC, CLUTCH
  30100-N8488ALL   -   1
3ASSY-DISC, CLUTCH (HT50S-17)
  30100-N8488 ALL   -   1
4ASSY-DISC, CLUTCH
  30100-N8488ALL   -   1
5ASSY-COVER, CLUTCH (465KG)
  30210-230001.6L   -   1
6ASSY-COVER, CLUTCH (600KG)
  30210-20111ALL   -   1
7ASSY-COVER, CLUTCH (650KG)
  30210-20111OP ALL   -   1
8CAP-SCREW CLUTCH COVER TO FLYWHEEL
  30223-E4100ALL   -   6
9WASHER-LOCK
  08915-2381AALL   -   6
10LEVER-CLUTCH WITHDRAWAL
  30531-146021.6L   -   1
11LEVER-CLUTCH WITHDRAWAL
  30531-780552L   -   1
12SPRING RETAINER WITHDRAWAL LEVER
  30534-E90001.6L   -   1
13SPRING RETAINER WITHDRAWAL LEVER
  30534-E9000 ALL   -   1
14SPRING RETAINER WITHDRAWAL LEVER
  30534-E9000ALL   -   1
15PIN-BALL, WITHDRAWAL LEVER
  30537-146001.6L   - 67091
16PIN BALL W/DRAWAL LEVER
  30537-210001.6L6710 -   1
17PIN-BALL, WITHDRAWAL LEVER
  30537-210101.6L   -   1
18PIN-BALL, WITHDRAWAL LEVER
  30537-210101.6L   -   1
19PIN-BALL, WITHDRAWAL LEVER
  30537-E32002L   -   1
20PIN-BALL, WITHDRAWAL LEVER
  30537-E32002L   -   1
21PIN-BALL, WITHDRAWAL LEVER
  30537-E32002L   -   1
22WASHER-LOCK
  00915-116101.6L   -   1
23WASHER-LOCK
  08915-2401A2L   -   1
24SLEEVE-BEARING, CLUTCH RELEASE
  30501-14601ALL   - 67091
25SLEEVE-BEARING, CLUTCH RELEASE
  30501-N1604 1.6L6710 -   1
26SLEEVE-BEARING, CLUTCH RELEASE
  30501-N16042L6710 -   1
27BEARING-CLUTCH RELEASE
  30502-146011.6L   -   1
28BEARING-CLUTCH RELEASE
  30502-14601ALL   -   1
29SPRING-HOLDER, BEARING SLEEVE
  30514-14600ALL   -   1
30COVER-DUST, CLUTCH WITHDRAWAL LEVER
  30542-146011.6L   - 67091
31COVER-DUST, CLUTCH WITHDRAWAL LEVER
  30542-146021.6L6710 -   1
32COVER-DUST, CLUTCH WITHDRAWAL LEVER
  30542-780012L   -   1
33SPRING-RETURN
  30533-76001ALL   -   1
34SPRING-RETURN
  30533-76001ALL   -   1
35NUT-PUSH, WITHDRAWAL LEVER
  30547-78001 1.6L   -   1
36NUT-PUSH, WITHDRAWAL LEVER
  30547-780011.6L6703 -   1
37NUT-PUSH, WITHDRAWAL LEVER
  30547-780012L   -   1
38NUT-PAL
  00911-34510ALL   -   1
39NUT-PAL
  00911-345101.6L   -   1
40BOLT
  00124-522101.6L   - 67026
41BOLT
  08120-8201EALL6703 -   6
42WASHER-LOCK
  00915-215101.6L   - 67026
43WASHER-LOCK
  08915-2381AALL6703 -   6
