Datsun Fairlady 1600/2000 Clutch Master Cylinder

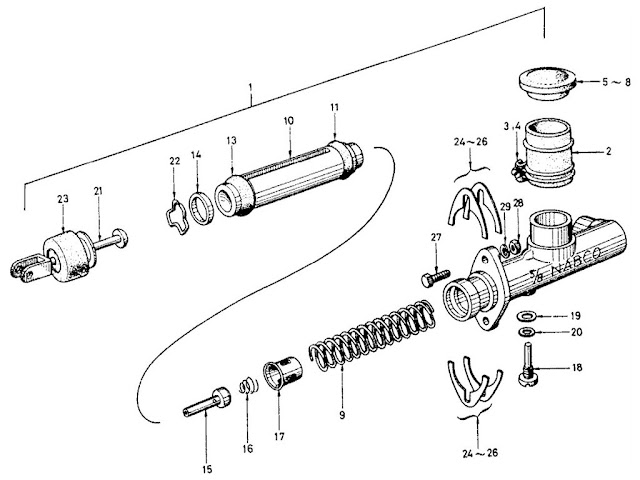

Datsun Fairlady Parts illustration no. 045-1 Clutch Master Cylinder

045 -1  Clutch Master Cylinder
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CYLINDER, CLUTCH MASTER (5/8" NABCO)
  30610-12900ALL   -   1
2RESERVOIR-BRAKE OIL
  30617-Q2101ALL   -   1
3ASSY-BAND, OIL RESERVOIR
  46016-W0400ALL   -   1
4ASSY-BAND, OIL RESERVOIR
  46016-W0400ALL   -   1
5SET-CAP,OIL RESERVOIR
  46020-N6000ALL   -   1
6SET-CAP,OIL RESERVOIR
  46020-N6000 ALL   -   1
7SET-CAP,OIL RESERVOIR (NOT FOR SALE)
  46020-N6000ALL   -   1
8SET-CAP,OIL RESERVOIR
  46020-N6000ALL   -   1
9SPRING-PISTON
  46061-30000ALL   -   1
10ASSY-PISTON, CLUTCH MASTER
  46076-08700ALL   -   1
11CUP-PISTON (P)
  46064-30002ALL   -   1
12CUP-PISTON (S)
  46046-H5800ALL   -   1
13CUP-PISTON (S)
  46046-H5800ALL   -   1
14RING-PISTON CUP (S)
  46069-30000ALL   -   1
15ASSY-VALVE, INLET
  46073-30800ALL   -   1
16SPRING-VALVE, INLET
  46056-27260ALL   -   1
17RETAINER-SPRING
  46076-30800ALL   -   1
18SCREW-STOPPER
  46032-27260ALL   -   1
19GASKET
  46043-27260ALL   -   1
20RING-O
  46079-27260ALL   -   1
21ASSY-ROD, PUSH
  46081-12900ALL   -   1
22RING-SNAP
  46070-27260ALL   -   1
23COVER-DUST
  46100-27260ALL   -   1
24SHIM-MASTER CYLINDER (1.6T)
  30611-27260ALL   -
25SHIM-MASTER CYLINDER (0.8T)
  30612-27260ALL   -
26SHIM-MASTER CYLINDER (0.5T)
  30613-27260ALL   -
27BOLT TO FIX CLUTCH MASTER CYLINDER
  30614-01300ALL   -   2
28NUT TO FIX CLUTCH MASTER CYLINDER
  00911-24510ALL   -   2
29WASHER-LOCK TO FIX CLUTCH MASTER CYLINDER
  00915-21500ALL   -   2
30KIT-A, CLUTCH MASTER REPAIR
  30610-10625ALL   -   1
31KIT-B, CLUTCH MASTER REPAIR
  C0611-10625ALL   -   1
