Datsun 311 Index

Clutch Cylinders

Slave

Datsun Fairlady 1600/2000 Clutch Slave Cylinder

Datsun Fairlady Parts illustration no. 046-1 Clutch Operating Cylinder (To C/# SP311-04000, SPL311-21954, SR311-01890, SRL311-04879)

046 -1 Clutch Operating Cylinder (To C/# SP311-04000, SPL311-21954, SR311-01890, SRL311-04879)

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	ASSY-CYLINDER, CLUTCH SLAVE
	30620-14601	1.6L		-	6709	1

2	ASSY-CYLINDER, CLUTCH SLAVE
	30620-25501	2L		-		1

3	ASSY-CYLINDER, CLUTCH SLAVE (NABACO & TOKICO)
	30620-25501	ALL		-		1

4	ASSY-CYLINDER, CLUTCH SLAVE (NABACO & TOKICO)
	30620-25501	ALL		-		1

5	PISTON-CLUTCH SLAVE CYLINDER (NABACO & TOKICO)
	30625-27260	ALL		-		1

6	SPRING-RETURN, PISTON (ONLY FOR 30620-14601)
	30622-36900	ALL		-		1

7	CUP-PISTON (SYNTHETIC RUBBER) (NABACO)
	30624-21000	ALL		-		1
	30624-30002	ALL		-		1

8	CUP-PISTON (NABCO)
	30624-30002	ALL		-		1

9	CUP-PISTON (TOKICO)
	30624-30002	ALL		-		1

10	STOPPER-PISTON (NABCO)
	30626-30001	ALL		-		1

11	STOPPER-PISTON (NABCO)
	30626-78000	ALL		-		1

12	STOPPER-PISTON (TOKICO)
	30626-25510	ALL	6710	-		1

13	COVER-CLUTCH SLAVE CYLINDER (NABCO)
	30627-32200	ALL		-		1

14	COVER-CLUCTH SLAVE CYLINDER (NABCO)
	30627-16E00	ALL		-		1

15	COVER-DUST (TOKICO)
	28286-0401P	ALL		-		1

16	COVER-CLUTCH SLAVE CYLINDER (TOKICO)
	30627-25510	ALL		-		1

17	ROD-PUSH, CLUTCH SLAVE CYLINDER
	30628-38700	1.6L		-		1

18	ROD-PUSH, CLUTCH SLAVE CYLINDER
	30628-38700	1.6L		-		1

19	ROD-PUSH, CLUTCH SLAVE CYLINDER
	30628-25501	2L		-		1

20	ROD-PUSH, CLUTCH SLAVE CYLINDER (NABCO)
	30628-25501	1.6L		-		1

21	ROD-PUSH, CLUTCH SLAVE CYLINDER (NABCO)
	30628-25501	2L		-		1

22	ROD-PUSH, CLUTCH SLAVE CYLINDER (NABCO)
	30628-25502	ALL		-		1

23	ROD-PUSH, CLUTCH SLAVE CYLINDER (TOKICO)
	30628-25510	ALL		-		1

24	ROD-PUSH, CLUTCH SLAVE CYLINDER (TOKICO)
	30628-25511	ALL		-		1

25	SCREW-BLEEDER (NABCO & TOKICO)
	41128-30001	ALL		-		1

26	CAP-BLEEDER SCREW (NABCO & TOKICO)
	41129-40F00	ALL		-		1

27	CAP BLEEDER SCREW
	41129-40F00	ALL		-		1

28	BOLT TO ATTACH CLUTCH SLAVE CYLINDER
	00124-63010	1.6L		-		2

29	BOLT TO ATTACH CLUTCH SLAVE CYLINDER
	08121-03065	2L		-		2

30	WASHER TO ATTACH CLUTCH SLAVE CYLINDER
	00915-21610	1.6L		-		2

31	WASHER TO ATTACH CLUTCH SLAVE CYLINDER
	00915-21610	1.6L		-		2

32	WASHER TO ATTACH CLUTCH SLAVE CYLINDER
	08915-2401A	2L		-		2

33	ASSY-TUBE, CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-14700	SPL		-		1

34	ASSY-TUBE, CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-25600	SPL, SRL	6703	-		1

35	TUBE-CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-A3300	SPL, SRL		-		1
	30650-26000	SPL, SRL	6703	-		1

36	TUBE-CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-A3300	SPL, SRL		-		1

37	ASSY-TUBE, CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-14600	SP		-		1

38	ASSY-TUBE, CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-25500	SP, SR	6703	-		1

39	TUBE-CLUTCH MASTER CYLINDER TO CLUTCH HOSE
	30650-25900	SP, SR	6703	-		1

40	ASSY-HOSE, CLUTCH
	46212-30000	ALL		-		1

41	GASKET-CLUTCH HOSE TO SLAVE CYLINDER
	46237-F0800	ALL		-		1

42	GASKET-CLUTCH HOSE TO SLAVE CYLINDER
	46237-F0800	ALL		-		1

43	WASHER-LOCK, INTERNAL TOOTH
	00916-11610	ALL		-		1

44	NUT
	00911-34610	ALL		-		1

45	KIT-A, CLUTCH SLAVE CYLINDER REPAIR
	30620-08027	ALL		-		1

46	KIT-B, CLUTCH SLAVE CYLINDER REPAIR
	30620-15826	ALL		-		1

47	KIT-A, CLUTCH SLAVE CYLINDER REPAIR (NABCO)
	30620-25525	ALL		-		1

48	KIT-B, CLUTCH SLAVE CYLINDER REPAIR (NABCO)
	30621-25526	ALL		-		1

49	KIT-A, CLUTCH SLAVE CYLINDER REPAIR (TOKICO)
	30621-25526	ALL		-		1

50	KIT-B, CLUTCH SLAVE CYLINDER REPAIR (TOKICO)
	30621-25526	ALL		-		1

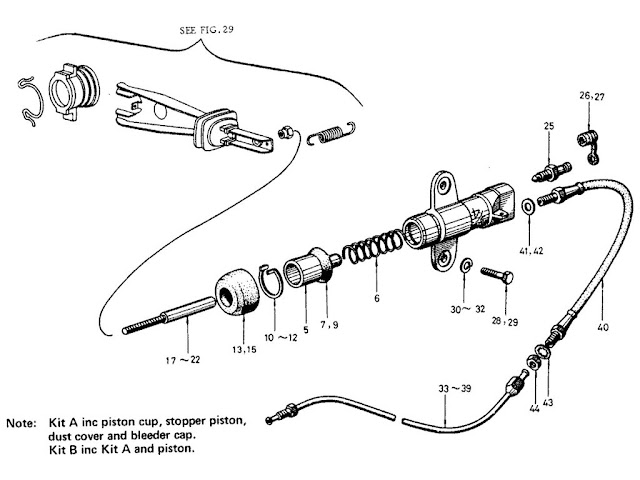

Datsun Fairlady illustration no. 046-1 Clutch Operating Cylinder (To C/# SP311-04000, SPL311-21954, SR311-01890, SRL311-04879)

Clutch Operating Cylinder (To C/# SP311-04000, SPL311-21954, SR311-01890, SRL311-04879)

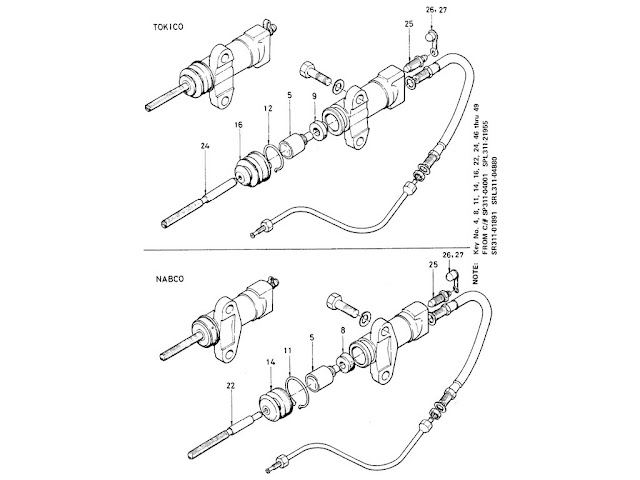

Datsun Fairlady illustration no. 046-2 Clutch Operating Cylinder (From C/# SP311-04001, SPL311-21955, SR311-01891, SRL311-04880)

Clutch Operating Cylinder (From C/# SP311-04001, SPL311-21955, SR311-01891, SRL311-04880)
