Datsun Fairlady 1600/2000 Differential

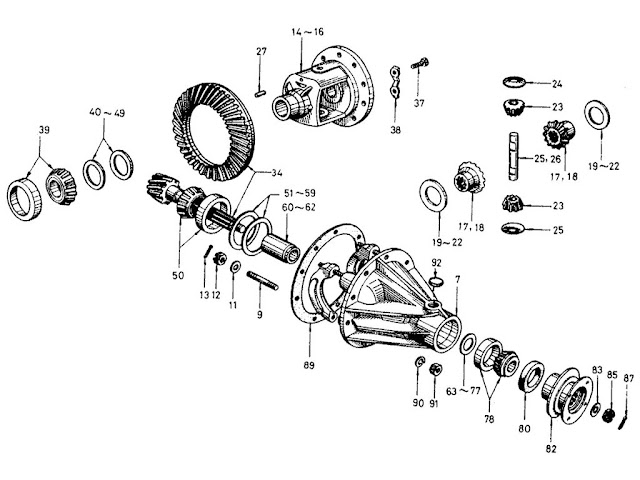

Datsun Fairlady Parts illustration no. 037-1 Gear Carrier & Gear

037 -1  Gear Carrier & Gear
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CARRIER-WITH GEAR (35/9)
  38300-A5306 1.6L   -   1
2ASSY-CARRIER-WITH GEAR (35/9) NON-SLIP DIFFERENTIAL
  38300-14625OP 1.6L   -   1
3ASSY-CARRIER-WITH GEAR (35/9) NON-SLIP DIFFERENTIAL
  38300-14625OP 1.6L   -   1
4ASSY-CARRIER-WITH GEAR (37/10)
  38300-V7101 2L   -   1
5ASSY-CARRIER-WITH GEAR (37/10)
  38300-V71012L   -   1
6ASSY-CARRIER-WITH GEAR (37/10) NON-SLIP DIFFERENTIAL
  38300-25510OP 2L   -   1
7ASSY-CARRIER, GEAR
  38310-A3000ALL   -   1
8ASSY-CARRIER, GEAR
  38310-A3000ALL   -   1
9STUD-DIFFERENTIAL BEARING CAP
  38315-13200ALL   -   4
10WASHER-PLAIN
  00915-41610ALL   -   4
11WASHER-PLAIN
  00915-41610ALL   -   4
12NUT
  00912-84600ALL   -   4
13COTTER PIN
  00921-2182AALL   -   4
14CASE-DIFFERENTIAL GEAR
  38421-07200ALL   -   1
15CASE-DIFFERENTIAL GEAR NON-SLIP DIFFERENTIAL
  38421-16300OP ALL   -   1
16CASE-DIFFERENTIAL GEAR NON-SLIP DIFFERENTIAL
  38422-16300OP ALL   -   1
17GEAR-SIDE DIFF
  38423-14600ALL   -   2
18GEAR-SIDE DIFF FOR NON-SLIP DIFFERENTIAL
  38423-16300OP ALL   -   2
19WASHER-THRUST, SIDE GEAR (T=0, 76-0, 81)
  38424-25660ALL   -   2
20WASHER-THRUST, SIDE GEAR (T=0, 81-0, 86)
  38424-32201ALL   -   2
21WASHER-THRUST, SIDE GEAR (T=0, 86-0, 91)
  38424-32201ALL   -   2
22WASHER-THRUST, SIDE GEAR (T=1, 01-1, 06)
  38424-32202ALL   -   2
23GEAR-PINION MATE
  38425-71200ALL   -   2
24WASHER-THRUST, PINION MATE
  38426-32200ALL   -   2
25SHAFT-PINION MATE
  38427-25661ALL   -   1
26SHAFT-PINION MATE FOR NON-SLIP DIFFERENTIAL
  38427-16300OP ALL   -   1
27PIN-PINION MATE
  38428-P0100ALL   -   1
28RING-PRESSURE DIFFERENTIAL BEVEL FOR NON-SLIP DIFFERENTIAL GEAR
  38431-16300OP ALL   -   2
29PLATE-FRICTION GEAR SIDE FOR NON-SLIP DIFFERENTIAL GEAR
  38432-16300OP ALL   -   4
30DISC-FRICTION FOR NON-SLIP DIFFERENTIAL GEAR
  38433-16300OP ALL   -   4
31DISC-FRICTION FOR NON-SLIP DIFFERENTIAL GEAR
  38433-16301OP ALL   -   4
32SCREW-COUPLE FOR NON-SLIP DIFFERENTIAL GEAR
  38434-16300OP ALL   -   2
33SET-GEAR HYPOID DRIVE (35/9)
  38100-A53001.6L   -   1
34SET-GEAR HYPOID DRIVE (35/9)
  38100-A53001.6L   -   1
35SET-GEAR HYPOID DRIVE (35/9)
  38100-A53001.6L   -   1
36SET-GEAR HYPOID DRIVE (37/10)
  38100-777002L   -   1
37BOLT-DRIVE GEAR
  38102-01300ALL   -   8
38STRAP-LOCK BOLT
  38103-01300ALL   -   4
39BEARING-SIDE
  40210-85000ALL   -   2
40SHIM-ADJUSTING, DRIVE GEAR (0.75T) (INCH)
  38457-61200ALL   -
41SHIM-ADJUSTING, DRIVE GEAR (0.50T) (MM)
  38457-61200ALL   -
42SHIM-ADJUSTING, DRIVE GEAR (0.25T) (INCH)
  38154-27160ALL   -
  38456-61200ALL   -
43SHIM-ADJUSTING, DRIVE GEAR (0.25T) (INCH)
  38154-27160ALL   -
44SHIM-ADJUSTING, DRIVE GEAR (0.125T) (INCH)
  38455-61200ALL   -
45SHIM-ADJUSTING, DRIVE GEAR (0.10T) (MM)
  38455-61200ALL   -
46SHIM-ADJUSTING, DRIVE GEAR (0.75T) (INCH)
  38156-27160ALL   -
  38454-61200ALL   -
47SHIM-ADJUSTING, DRIVE GEAR (0.07T) (MM)
  38156-27160ALL   -
48SHIM-ADJUSTING, DRIVE GEAR (0.05T) (INCH)
  38161-27160ALL   -
  38453-61200ALL   -
49SHIM-ADJUSTING, DRIVE GEAR (0.05T) (MM)
  38161-27160ALL   -
50BEARING-DRIVE PINION, REAR
  38120-61000ALL   -
51SHIM-ADJUSTING, DRIVE PINION (0.75T) (INCH)
  38157-61200ALL   -
52SHIM-ADJUSTING, DRIVE PINION (0.50T) (MM)
  38157-61200ALL   -
53SHIM-ADJUSTING, DRIVE PINION (0.125T) (INCH)
  38156-61200ALL   -
54SHIM-ADJUSTING, DRIVE PINION (0.20T) (MM)
  38156-61200ALL   -
55SHIM-ADJUSTING, DRIVE PINION (0.125T) (INCH)
  38155-61200ALL   -
56SHIM-ADJUSTING, DRIVE PINION (0.10T) (MM)
  38155-61200ALL   -
57SHIM-ADJUSTING, DRIVE PINION (0.075T) (INCH)
  38153-61200ALL   -
58SHIM-ADJUSTING, DRIVE PINION (0.07T) (MM)
  38153-61200ALL   -
59SHIM-ADJUSTING, DRIVE PINION (0.05T) (MM)
  38153-61200ALL   -
60SPACER-DRIVE PINION BEARING (59.25 M/M)
  38165-61001ALL   -   1
61SPACER-DRIVE PINION BEARING (59.50 M/M)
  38166-61001ALL   -   1
62SPACER-DRIVE PINION BEARING (59.75 M/M)
  38167-61001ALL   -   1
63WASHER-ADJUST, DRIVE PINION BEARING
  38125-61001ALL   -   1
64WASHER-ADJUST, DRIVE PINION BEARING
  38126-61001ALL   -   1
65WASHER-ADJUST, DRIVE PINION BEARING
  38127-61001ALL   -   1
66WASHER-ADJUST, DRIVE PINION BEARING
  38128-61001ALL   -   1
67WASHER-ADJUST, DRIVE PINION BEARING
  38129-61001ALL   -   1
68WASHER-ADJUST, DRIVE PINION BEARING
  38130-61001ALL   -   1
69WASHER-ADJUST, DRIVE PINION BEARING
  38131-61001ALL   -   1
70WASHER-ADJUST, DRIVE PINION BEARING
  38132-61001ALL   -   1
71WASHER-ADJUST, DRIVE PINION BEARING
  38133-61001ALL   -   1
72WASHER-ADJUST, DRIVE PINION BEARING
  38134-61001ALL   -   1
73WASHER-ADJUST, DRIVE PINION BEARING
  38135-61001ALL   -   1
74WASHER-ADJUST, DRIVE PINION BEARING
  38136-61001ALL   -   1
75WASHER-ADJUST, DRIVE PINION BEARING
  38137-61001ALL   -   1
76WASHER-ADJUST, DRIVE PINION BEARING
  38138-61001ALL   -   1
77WASHER-ADJUST, DRIVE PINION BEARING
  38139-61001ALL   -   1
78BEARING-DRIVE PINION, FRONT
  38140-61000ALL   -   1
79SEAL-OIL, DRIVE PINION
  38189-P0101 ALL   -   1
80SEAL-OIL, DRIVE PINION
  38189-P0101ALL   -   1
81ASSY-FLANGE, COMPANION
  38210-73001ALL   -   1
82ASSY-FLANGE, COMPANION
  38210-73001ALL   -   1
83WASHER-PLAIN
  38215-61000ALL   -   1
84NUT-DRIVE PINION
  38216-132001.6L   -   1
85NUT-DRIVE PINION
  38216-13200ALL6703 -   1
86COTTER PIN
  00921-4302A ALL   -   1
87COTTER PIN
  00921-4302AALL   -   1
88GASKET-GEAR CARRIER
  38320-B3002 ALL   -   1
89GASKET-GEAR CARRIER
  38320-B3002ALL   -   1
90WASHER-LOCK
  00915-11510ALL   -   8
91NUT
  00911-24510ALL   -   8
92PLUG-DIFFERENTIAL GEAR HOUSING
  00933-1221A1.6L   -   1
CASE-DIFFERENTIAL GEAR / CASE-DIFFERENTIAL GEAR NON-SLIP DIFFERENTIAL STRAP-LOCK BOLT BOLT-DRIVE GEAR BEARING-SIDE WASHER-THRUST, PINION MATE GEAR-PINION MATE WASHER-THRUST, SIDE GEAR (T=0, 76-0, 81) / WASHER-THRUST, SIDE GEAR (T=1, 01-1, 06) GEAR-SIDE DIFF / GEAR-SIDE DIFF FOR NON-SLIP DIFFERENTIAL SET-GEAR HYPOID DRIVE (35/9) WASHER-THRUST, SIDE GEAR (T=0, 76-0, 81) / WASHER-THRUST, SIDE GEAR (T=1, 01-1, 06) PLUG-DIFFERENTIAL GEAR HOUSING COTTER PIN STUD-DIFFERENTIAL BEARING CAP NUT COTTER PIN WASHER-LOCK WASHER-ADJUST, DRIVE PINION BEARING ASSY-FLANGE, COMPANION PIN-PINION MATE SHIM-ADJUSTING, DRIVE GEAR (0.75T) (INCH) / SHIM-ADJUSTING, DRIVE GEAR (0.05T) (MM) SHAFT-PINION MATE / SHAFT-PINION MATE FOR NON-SLIP DIFFERENTIAL GEAR-PINION MATE SHAFT-PINION MATE SHIM-ADJUSTING, DRIVE PINION (0.75T) (INCH) / SHIM-ADJUSTING, DRIVE PINION (0.05T) (MM) SPACER-DRIVE PINION BEARING (59.25 M/M) / SPACER-DRIVE PINION BEARING (59.75 M/M) BEARING-DRIVE PINION, REAR GEAR-SIDE DIFF / GEAR-SIDE DIFF FOR NON-SLIP DIFFERENTIAL ASSY-CARRIER, GEAR WASHER-PLAIN NUT-DRIVE PINION GASKET-GEAR CARRIER WASHER-PLAIN NUT BEARING-DRIVE PINION, FRONT SEAL-OIL, DRIVE PINION
