Datsun Fairlady 2000 Transmission Case (5-Speed)

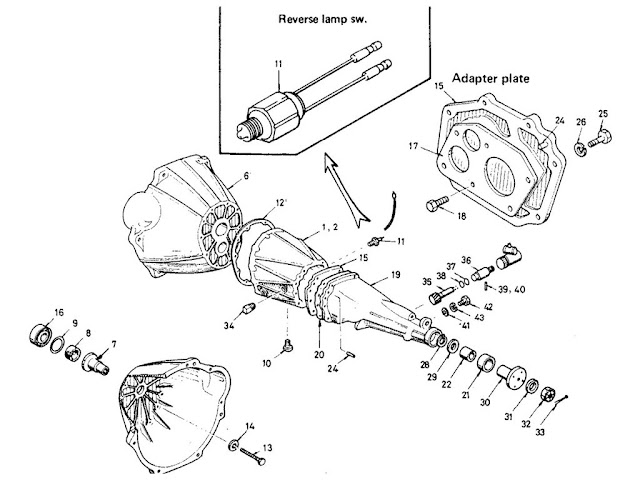

Datsun Fairlady Parts illustration no. 031A-1 Transmission Case 2000 (U20)

031A -1  Transmission Case 2000 (U20)
KeyPart No.ModelApplied DateQty
FromTo
1CASE-TRANSMISSION
  32101-P0700 2L   -   1
2CASE-TRANSMISSION
  32101-P07002L   -   1
3CASE-TRANSMISSION
  32101-P07002L   -   1
4CASE-TRANSMISSION
  32101-P0701 2L   -   1
5CASE-TRANSMISSION
  32101-P0701 2L   -   1
6HOUSING-CLUTCH
  30401-782012L   -   1
7COVER-TRANSMISSION FRONT
  32110-780002L   -   1
8SEAL-OIL, FRONT COVER
  32114-Y40002L   -   1
9RING-O, FRONT COVER
  32115-201002L   -   1
10PLUG-DRAIN
  32103-U840A2L   -   1
11ASSY-SWTCH, REVERSE LAMP
  32005-K102A2L   -   1
12GASKET-TRANSMISSION CASE TO CLUTCH HOUSING
  32118-780002L   -   1
13BOLT-M8 X 1.25 TRANSMISSION CASE TO CLUTCH HOUSING
  08120-8321A2L   -   10
14WASHER-SPRING TRANSMISSION CASE TO CLUTCH HOUSING
  08915-2381A2L   -   10
15PLATE-ADAPTER
  32138-780002L   -   1
16BEARING-MAIN SHAFT
  32273-041002L   -   1
17RETAINER-BEARING
  32139-201002L   -   1
18SCREW-MACHINE X 1.25
  08320-820122L   -   6
19ASSY-EXTENSION, REAR
  32130-255002L   -   1
20GASKET REAR EXTENSION
  32134-780002L   -   1
21SEAL-OIL, REAR EXTENSION
  32136-201002L   -   1
22BEARING, REAR EXTENSION
  32203-143602L   -   1
23ASSY-BREATHER, REAR EXTENSION
  38322-780002L   -   1
24DOWEL-TRANSMISSION ADAPTER AND REAR EXTENSION
  32106-201002L   -   2
25BOLT REAR EXTENSION TO TRANSMISSION CASE
  08120-850102L   -   8
26WASHER-SPRING REAR EXTENSION TO TRANSMISSION CASE
  08915-2381A2L   -   8
27RING-SNAP
  32228-201032L   -   1
  32228-201042L   -   1
28RING-SNAP
  32228-201032L   -   1
29SPACER
  32144-255002L   -   1
30FLANGE-COMPANION
  32140-201002L   -   1
31WASHER-PLAIN
  32248-255002L   -   1
32NUT
  08911-050102L   -   1
33COTTER PIN
  00921-435102L   -   1
34PLUG-LEVER & FILLER
  38357-E46002L   -   1
35ASSY-PINION, SPEEDOMETER (18T)
  32703-781022L   -   1
36ASSY-SLEEVE, SPEEDOMETER
  32707-780002L   -   1
37SEAL-OIL 10 X 16 X 4
  32709-146002L   -   1
38"O"RING-PINION SLEEVE
  32710-146002L   -   1
39PIN-RETAINING, SPEEDOMETER
  32873-146002L   -   1
40PIN-RETAINING, SPEEDOMETER
  32873-146002L   -   1
41PLATE-LOCK, SPEEDOMETER
  32718-146012L   -   1
42BOLT-PLATE LOCK M6
  08110-6121A2L   -   1
43WASHER-SPRING
  08915-1361A2L   -   1
44GEAR-DRIVE, MAIN SHAFT (6T)
  32701-E98002L   -   1
45BALL-STEEL 1/4
  32720-369002L   -   1
46RING-SNAP
  32228-201012L   -   2
CASE-TRANSMISSION ASSY-SWTCH, REVERSE LAMP ASSY-SWTCH, REVERSE LAMP RETAINER-BEARING PLATE-ADAPTER DOWEL-TRANSMISSION ADAPTER AND REAR EXTENSION WASHER-SPRING REAR EXTENSION TO TRANSMISSION CASE ASSY-PINION, SPEEDOMETER (18T) ASSY-SLEEVE, SPEEDOMETER "O"RING-PINION SLEEVE WASHER-SPRING PLUG-DRAIN GASKET REAR EXTENSION RING-O, FRONT COVER SEAL-OIL, FRONT COVER COVER-TRANSMISSION FRONT BOLT-M8 X 1.25 TRANSMISSION CASE TO CLUTCH HOUSING RING-SNAP SPACER BEARING, REAR EXTENSION SEAL-OIL, REAR EXTENSION WASHER-PLAIN NUT HOUSING-CLUTCH GASKET-TRANSMISSION CASE TO CLUTCH HOUSING PLATE-ADAPTER ASSY-EXTENSION, REAR SCREW-MACHINE X 1.25 BOLT REAR EXTENSION TO TRANSMISSION CASE SEAL-OIL 10 X 16 X 4 PIN-RETAINING, SPEEDOMETER PLATE-LOCK, SPEEDOMETER BOLT-PLATE LOCK M6 PLUG-LEVER & FILLER DOWEL-TRANSMISSION ADAPTER AND REAR EXTENSION BEARING-MAIN SHAFT WASHER-SPRING TRANSMISSION CASE TO CLUTCH HOUSING FLANGE-COMPANION COTTER PIN
