Datsun Fairlady 1600/2000 Transmission Control

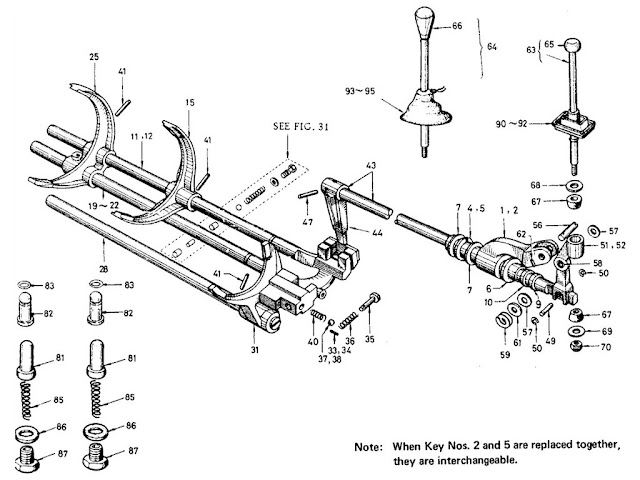

Datsun Fairlady Parts illustration no. 033-1 Transmission Control 4 Speed

033 -1  Transmission Control 4 Speed
KeyPart No.ModelApplied DateQty
FromTo
1ARM-CONTROL
  32844-146001.6L   -   1
  32844-188001.6L   -   1
2ARM-CONTROL
  32844-188001.6L   -   1
3ARM-CONTROL
  32844-255002L   -   1
4SPRING-STRIKER
  32852-146001.6L   -   1
5RING-O CONTROL ARM
  32845-18800ALL   -   1
6WASHER-THRUST, CONTROL ARM
  32875-146001.6L   -   1
7WASHER-THRUST, CONTROL ARM
  32876-146001.6L   -   2
8BUSHING-STRIKING ROD
  32887-18800ALL   -   1
9CAP-O RING
  32857-14600ALL   -   1
10RING-O, STRIKING ROD
  32858-14600ALL   -   1
11COMP-ROD, FORK 1ST & 2ND
  32801-146001.6L SERVO   -   1
12COMP-ROD, FORK 1ST & 2ND
  32801-165111.6L WARNER   -   1
13COMP-ROD, FORK 1ST & 2ND
  32801-255002L SERVO   -   1
14COMP-ROD, FORK 1ST & 2ND
  32801-A01002L WARNER   -   1
15FORK-SHIFT, 1ST & 2ND
  32805-146011.6L   -   1
16FORK-SHIFT, 1ST & 2ND
  32811-780002L   -   1
17FORK-SHIFT, 1ST & 2ND
  32811-780002L   -   1
18ROD-FORK, 3RD & 4TH
  32809-220001.6L   -   1
19ROD-FORK, 3RD & 4TH
  32809-220001.6L SERVO (EXC EMISSION CONTROL)   -   1
20ROD-FORK, 3RD & 4TH
  32809-211001.6L WARNER (EXC EMISSION CONTROL)   -   1
21ROD-FORK, 3RD & 4TH
  32809-A77021.6L SERVO EMISSION CONTROL   -   1
22ROD-FORK, 3RD & 4TH
  32809-A77001.6L WARNER EMISSION CONTROL   -   1
23ROD-FORK, 3RD & 4TH
  32809-255002L SERVO   -   1
24ROD-FORK, 3RD & 4TH
  32809-A01002L WARNER   -   1
25FORK-SHIFT, 3RD & 4TH
  32811-146011.6L   -   1
26FORK-SHIFT, 3RD & 4TH
  32811-780002L   -   1
27FORK-SHIFT, 3RD & 4TH
  32811-780002L   -   1
28ROD-FORK, REVERSE
  32816-732001.6L   -   1
29ROD-FORK, REVERSE & OVER DRIVE
  32816-255002L   -   1
30FORK-SHIFT, REVERSE
  32819-146501.6L   -   1
31FORK-SHIFT, REVERSE
  32819-146501.6L   -   1
32FORK-SHIFT, REVERSE & OVER DRIVE
  32819-201002L   -   1
33PIN RETAINING SPEEDOMETER SLEEVE
  32873-14600ALL   -   1
34PIN RETAINING SPEEDOMETER SLEEVE
  32873-14600ALL   -   1
35PIN-REVERSE FORK
  32823-14600ALL   -   1
36SPRING-RETURN, REVERSE PIN
  32824-09600ALL   -   1
37BALL-CHECK, REVERSE FORK
  32720-369001.6L   -   1
38BALL-CHECK, REVERSE FORK
  32720-369001.6L   -   1
39BALL-CHECK, REVERSE FORK
  32829-267602L   -   1
40SPRING-CHECK, REVERSE FORK
  32825-14600ALL   -   1
41PIN-RETAINING
  32292-146001.6L   -   3
42PIN-RETAINING
  32292-369002L   -   5
43ASSY-ROD, STRIKING W/LEVER
  32890-255001.6L   -   1
44ASSY-ROD, STRIKING W/LEVER
  32890-255002L   -   1
45ROD-STRIKING
  32890-255002L   -   1
46LEVER-STRIKING ROD
  32890-255002L   -   1
47PIN-RETAINING
  32292-146001.6L   -   1
48PIN-RETAINING
  32292-369002L   -   1
49PIN-STRIKING ROD
  32877-14600ALL   -   1
50RING-O, STRIKING PIN
  32878-14600ALL   -   2
51BRACKET-LEVER, CONTROL
  32843-R3250 1.6L   -   1
52BRACKET-LEVER, CONTROL
  32843-R32501.6L   -   1
53BRACKET-LEVER, CONTROL
  32843-E4150 2L   -   1
54BRACKET-LEVER, CONTROL
  32843-E41502L   -   1
55BRACKET-LEVER, CONTROL
  32843-E41502L   -   1
56PIN-CONTROL ARM
  32849-14600ALL   -   1
57WASHER-CONTROL PIN
  32888-14600ALL   -   2
58BUSHING-CONTROL PIN
  32889-14600ALL   -   1
59SPRING-CONTROL
  32851-14600ALL   -   1
60WASHER-THRUST, CONTROL PIN
  08915-4405AALL   -   1
61WASHER-THRUST, CONTROL PIN
  08915-4405AALL   -   1
62PIN-RETAINING
  32873-14600ALL   -   1
63ASSY-LEVER, CONTROL
  32841-146521.6L   - 67021
64ASSY-LEVER, CONTROL
  32841-25500ALL6703 -   1
65KNOB-CONTROL LEVER
  32865-V2400 1.6L   -   1
66KNOB-CONTROL LEVER
  32865-V2400ALL6703 -   1
67RUBBER-CONTROL LEVER
  32853-22000ALL   -   2
68WASHER-CONTROL LEVER, UPPER
  32885-22001ALL   -   1
69WASHER-CONTROL LEVER, LOWER
  32886-22000ALL   -   1
70NUT-SELF LOCKING
  00912-646101.6L   -   1
71NUT-SELF LOCKING
  08915-5401A 2L   -   1
72NUT-SELF LOCKING
  08915-5401A2L   -   1
73PLUG-CHECK BALL 11MM
  32835-780002L   -   1
74PLUG-CHECK BALL 17.5MM
  32834-780002L   -   2
75RING-SNAP E TYPE
  32803-780012L   -   2
76SPRING-CHECK BALL
  32830-201002L   -   3
77BALL-CHECK
  32829-267602L   -   3
78BALL-INTER LOCK
  32720-369002L   -   4
79BRACKET-REVERSE & OVER DRIVE ROD
  32382-201002L   -   1
80BRACKET-3RD & 4TH ROD
  32813-201002L   -   1
81PIN-SELECT
  32861-201002L   -   2
  32861-A01002L   -   2
  32864-A01002L   -   2
82PIN-SELECT
  32861-A01002L   -   2
  32864-A01002L   -   2
83RING-O, SELECT PIN
  32864-A01002L   -   2
84SPRING-SELECT, 1ST & 2ND
  32845-A01002L   -   1
85SPRING-SELECT, 1ST & 2ND
  32845-A01002L   -   1
86GASKET-SELECT SPRING PLUG
  32863-201002L   -   2
87PLUG-SELECT SPRING
  32862-255002L   -   2
88SPRING-SELECT, OVER DRIVE & REVERSE
  32846-A01002L   -   1
89SPRING-SELECT, OVER DRIVE & REVERSE
  32846-A01002L   -   1
90SHIELD-DUST, CHANGE LEVER
  32869-255001.6L   -   1
91SHIELD-DUST, CHANGE LEVER
  32869-25500ALL6703 - 67091
92SHIELD-DUST, CHANGE LEVER
  32869-25902ALL6710 -   1
93BOOT RUBBER
  75150-25500ALL   - 67091
94BOOT RUBBER
  75151-259001.6L6710 -   1
95BOOT-RUBBER
  75151-259012L6710 -   1
96RETAINER-BOOT
  68645-259001.6L6710 -   1
97RETAINER-BOOT
  68645-259012L6710 -   1
ASSY-LEVER, CONTROL ASSY-LEVER, CONTROL ASSY-ROD, STRIKING W/LEVER RUBBER-CONTROL LEVER PIN-CONTROL ARM WASHER-CONTROL PIN BUSHING-CONTROL PIN ARM-CONTROL PIN-RETAINING SPRING-CONTROL RING-O, STRIKING PIN WASHER-THRUST, CONTROL PIN WASHER-CONTROL PIN SPRING-STRIKER PIN-RETAINING COMP-ROD, FORK 1ST & 2ND FORK-SHIFT, 1ST & 2ND FORK-SHIFT, REVERSE PIN-REVERSE FORK CAP-O RING ROD-FORK, REVERSE PIN-SELECT PIN-SELECT SPRING-SELECT, 1ST & 2ND KNOB-CONTROL LEVER KNOB-CONTROL LEVER SHIELD-DUST, CHANGE LEVER BOOT RUBBER / BOOT-RUBBER ASSY-ROD, STRIKING W/LEVER PIN-RETAINING WASHER-CONTROL LEVER, UPPER BRACKET-LEVER, CONTROL RING-O, STRIKING PIN RUBBER-CONTROL LEVER WASHER-CONTROL LEVER, LOWER NUT-SELF LOCKING PIN-STRIKING ROD RING-O, STRIKING ROD WASHER-THRUST, CONTROL ARM WASHER-THRUST, CONTROL ARM WASHER-THRUST, CONTROL ARM RING-O CONTROL ARM FORK-SHIFT, 3RD & 4TH PIN-RETAINING ROD-FORK, 3RD & 4TH PIN-RETAINING PIN RETAINING SPEEDOMETER SLEEVE SPRING-RETURN, REVERSE PIN BALL-CHECK, REVERSE FORK SPRING-CHECK, REVERSE FORK PIN-SELECT PIN-SELECT RING-O, SELECT PIN RING-O, SELECT PIN SPRING-SELECT, 1ST & 2ND GASKET-SELECT SPRING PLUG GASKET-SELECT SPRING PLUG PLUG-SELECT SPRING PLUG-SELECT SPRING KNOB-CONTROL LEVER ASSY-LEVER, CONTROL SHIELD-DUST, CHANGE LEVER PIN-RETAINING PIN-RETAINING ASSY-ROD, STRIKING W/LEVER ROD-STRIKING RING-O CONTROL ARM ARM-CONTROL WASHER-CONTROL LEVER, UPPER RUBBER-CONTROL LEVER PIN-CONTROL ARM WASHER-THRUST, CONTROL ARM WASHER-CONTROL LEVER, LOWER RING-O, SELECT PIN PIN-SELECT PIN-SELECT PIN-SELECT PIN-SELECT GASKET-SELECT SPRING PLUG SPRING-CHECK, REVERSE FORK BALL-CHECK, REVERSE FORK PIN RETAINING SPEEDOMETER SLEEVE WASHER-THRUST, CONTROL PIN WASHER-CONTROL PIN PIN-RETAINING PIN-RETAINING PLUG-CHECK BALL 17.5MM SPRING-CHECK BALL SPRING-CHECK BALL PLUG-CHECK BALL 11MM BALL-CHECK BRACKET-3RD & 4TH ROD BRACKET-REVERSE & OVER DRIVE ROD RING-O, STRIKING ROD BOOT RUBBER / BOOT-RUBBER KNOB-CONTROL LEVER ASSY-LEVER, CONTROL FORK-SHIFT, 3RD & 4TH FORK-SHIFT, 1ST & 2ND COMP-ROD, FORK 1ST & 2ND PIN-RETAINING PIN-RETAINING BUSHING-CONTROL PIN BRACKET-LEVER, CONTROL WASHER-CONTROL PIN WASHER-THRUST, CONTROL ARM RING-O, STRIKING ROD RUBBER-CONTROL LEVER NUT-SELF LOCKING ROD-FORK, 3RD & 4TH PIN-RETAINING ROD-FORK, REVERSE & OVER DRIVE RING-O, SELECT PIN SPRING-SELECT, 1ST & 2ND SPRING-SELECT, 1ST & 2ND GASKET-SELECT SPRING PLUG PLUG-SELECT SPRING PLUG-SELECT SPRING FORK-SHIFT, REVERSE & OVER DRIVE PIN-REVERSE FORK SPRING-RETURN, REVERSE PIN SPRING-CONTROL CAP-O RING PIN-STRIKING ROD RING-O, STRIKING PIN PLUG-CHECK BALL 17.5MM BALL-CHECK BALL-CHECK PIN-RETAINING PIN-RETAINING SPRING-CHECK BALL BALL-INTER LOCK BRACKET-REVERSE & OVER DRIVE ROD
