Datsun Fairlady 1600 Transmission Shaft & Gear (4-spd Servo Synchro)

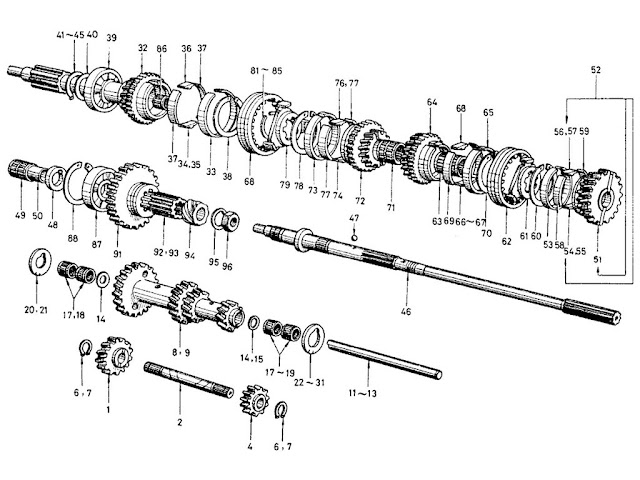

Datsun Fairlady Parts illustration no. 032-1 Transmission Shaft & Gear 1600 (R16) (Servo Synchro Type)

032 -1  Transmission Shaft & Gear 1600 (R16) (Servo Synchro Type)
KeyPart No.ModelApplied DateQty
FromTo
1GEAR-REVERSE IDLER COUNTER
  32282-146001.6L   -   1
2SHAFT-REVERSE IDLER
  32281-146011.6L   -   1
3WASHER-THRUST, REVERSE IDLER
  32287-146001.6L   -   1
4GEAR-REVERSE IDLER, MAIN
  32284-146001.6L   -   1
5BEARING-NEEDLE, REVERSE IDLER
  32283-146011.6L   -   2
6RING-SNAP, REVERSE IDLER (T=2.00)
  32285-146031.6L   -   1
7RING-SNAP, REVERSE IDLER (T=2.25)
  32285-146041.6L   -   1
8GEAR-COUNTER
  32213-146001.6L   -   1
9GEAR-COUNTER (NOT ADOPTED)
  32213-W1001 1.6L   -   1
10GEAR-COUNTER
  32213-W10011.6L   -   1
11SHAFT-COUNTER
  32211-146001.6L   -   1
12SHAFT-COUNTER
  32211-A0951 1.6L   -   1
13SHAFT-COUNTER
  32211-A09511.6L   -   1
14RING-COUNTER SHAFT
  32218-146001.6L   -   4
15RING-COUNTER SHAFT (NOT ADOPTED)
  32218-A06011.6L   -   4
16RING-COUNTER SHAFT
  32218-A06011.6L   -   4
17ASSY-BEARING, NEEDLE
  32219-732001.6L   -   2
18ASSY-BEARING, NEEDLE
  32219-732001.6L   -   2
19ASSY-BEARING, NEEDLE
  32219-A06001.6L   -   1
20WASHER-THRUST, COUNTER, FRONT
  32224-146001.6L   -   1
21WASHER-THRUST, COUNTER, FRONT
  32224-A09001.6L   -   1
22WASHER-THRUST, COUNTER, REAR (T=2.40)
  32225-146001.6L   -   1
23WASHER-THRUST, COUNTER, REAR (T=2.40)
  32225-A09001.6L   -   1
24WASHER-THRUST, COUNTER, REAR (T=2.45)
  32225-146011.6L   -   1
25WASHER-THRUST, COUNTER, REAR (T=2.45)
  32225-A09011.6L   -   1
26WASHER-THRUST, COUNTER, REAR (T=2.50)
  32225-146021.6L   -   1
27WASHER-THRUST, COUNTER, REAR (T=2.50)
  32225-A09021.6L   -   1
28WASHER-THRUST, COUNTER, REAR (T=2.55)
  32225-146031.6L   -   1
29WASHER-THRUST, COUNTER, REAR (T=2.55)
  32225-A09031.6L   -   1
30WASHER-THRUST, COUNTER, REAR (T=2.60)
  32225-146041.6L   -   1
31WASHER-THRUST, COUNTER, REAR (T=2.60)
  32225-A09041.6L   -   1
32COMP-GEAR, MAIN DRIVE
  32202-146001.6L   -   1
33RING-SYNCHRONIZER
  32611-146001.6L   -   1
34BLOCK-THRUST, 2ND, 3RD,& 4TH
  32612-146031.6L   -   1
35BLOCK-THRUST, 2ND, 3RD,& 4TH
  32612-146031.6L   -   1
36BLOCK-ANCHOR, 2ND, 3RD & 4TH
  32613-146011.6L   -   1
37BAND-BRAKE, 2, 5
  32614-146001.6L   -   2
38CIRCLIP
  32616-146001.6L   -   1
39BEARING-MAIN DRIVE GEAR
  37510-861601.6L   -   1
40WASHER-MAIN, DRIVE GEAR
  32205-146011.6L   -   1
41RING-SNAP, MAIN DRIVE GEAR (T=1.52)
  32204-080011.6L   -   1
42RING-SNAP, MAIN DRIVE GEAR (T=1.61)
  32204-080011.6L   -   1
43RING-SNAP, MAIN DRIVE GEAR (T=1.64)
  32204-080021.6L   -   1
44RING-SNAP, DRIVE GEAR (T=1.74)
  32204-080031.6L   -   1
45RING-SNAP, MAIN DRIVE GEAR (T=1.77)
  32204-080041.6L   -   1
46SHAFT-MAIN
  32241-146001.6L   -   1
47BALL-STEEL (5/32)
  32720-146001.6L   -   1
48WASHER-THRUST, MAIN SHAFT
  32246-146001.6L   -   1
49BEARING-NEEDLE, MAIN SHAFT
  32264-146011.6L   -   1
50BUSHNG-MAIN SHAFT, 1ST GEAR
  32253-146111.6L   -   1
51COMP-GEAR, 1ST SPEED, MAIN SHAFT
  32232-146251.6L   -   1
52SET-GEAR, 1ST SPEED, MAIN SHAFT
  32232-146251.6L   -   1
53RING-SYNCHRONIZER
  32611-146001.6L   -   1
54BLOCK THRUST, 1ST
  32617-146011.6L   -   1
55BLOCK THRUST, 1ST
  32617-146101.6L   -   1
56BLOCK-ANCHOR, 1ST
  32618-146011.6L   -   1
57BLOCK-ANCHOR, 1ST
  32613-146011.6L   -   1
58BAND-BRAKE, 2, 5
  32614-146001.6L   -   1
59BAND-BRAKE, 2, 2
  32615-146001.6L   -   1
60CIRCLIP
  32616-146001.6L   -   1
61HUB-SYNCHRONIZER, 1ST & 2ND SPEED
  32601-146001.6L   -   1
62SLEEVE COUPLING
  32606-146001.6L   -   1
63BEARING-NEEDLE, MAIN SHAFT
  32264-146011.6L   -   1
64COMP-GEAR, 2ND SPED, MAIN SHAFT
  32252-146001.6L   -   1
65RING-SYNCHRONIZER
  32611-146001.6L   -   1
66BLOCK-THRUST, 2ND, 3RD & 4TH
  32612-146031.6L   -   1
67BLOCK-THRUST, 2ND, 3RD & 4TH
  32612-146031.6L   -   1
68BLOCK-ANCHOR, 2ND, 3RD & 4TH
  32613-146011.6L   -   1
69BAND-BRAKE, 2, 5
  32614-146001.6L   -   2
70CIRCLIP
  32616-146001.6L   -   1
71BEARING-NEEDLE, MAIN SHAFT
  32264-146011.6L   -   1
72COMP-GEAR, 3RD SPEED, MAIN SHAFT
  32262-146001.6L   -   1
73RING-SYNCHRONIZER
  32611-146001.6L   -   1
74BLOCK-THRUST, 2ND, 3RD & 4TH
  32612-146031.6L   -   1
75BLOCK-THRUST, 2ND, 3RD & 4TH
  32612-146031.6L   -   1
76BLOCK-ANCHOR, 2ND, 3RD & 4TH
  32613-146011.6L   -   1
77BAND-BRAKE, 2, 5
  32614-146001.6L   -   2
78CIRCLIP
  32616-146001.6L   -   1
79HUB-SYNCHRONIZER, 3RD & 4TH SPEED
  32605-146001.6L   -   1
80SLEEVE COUPLING
  32606-146001.6L   -   1
81RING-SNAP SYNCHRONIZER, HUB (T=1.45)
  32263-146001.6L   -   1
82RING-SNAP SYNCHRONIZER, HUB (T=1.50)
  32263-146011.6L   -   1
83RING-SNAP SYNCHRONIZER, HUB (T=1.50)
  32263-146021.6L   -   1
84RING-SNAP SYNCHRONIZER, HUB (T=1.55)
  32263-146031.6L   -   1
85RING-SNAP SYNCHRONIZER, HUB (T=1.60)
  32263-146041.6L   -   1
86BEARING-PILOT, MAIN SHAFT
  32272-G32011.6L   -   1
87BEARING-MAIN SHAFT
  32273-369001.6L   -   1
88RING-SNAP, MAIN SHAFT & BEARING
  32274-369001.6L   -   1
89GEAR-REVERSE, MAIN SHAFT
  32245-A09501.6L   -   1
90GEAR-REVERSE, MAIN SHAFT
  32245-A09501.6L   -   1
91HUB-REVERSE, MAIN SHAFT
  32258-14810 1.6L   -   1
92HUB-REVERSE, MAIN SHAFT
  32258-148101.6L   -   1
93HUB-REVERSE, MAIN SHAFT
  32258-148101.6L   -   1
94GEAR-DRIVE, SPEEDOMETER
  32701-158021.6L   -   1
95WASHER-LOCK, MAIN SHAFT
  32141-146001.6L   -   1
96NUT-MAIN SHAFT
  32142-267601.6L   -   1
