Datsun Fairlady 1600 Transmission Shaft & Gear (4-speed Warner)

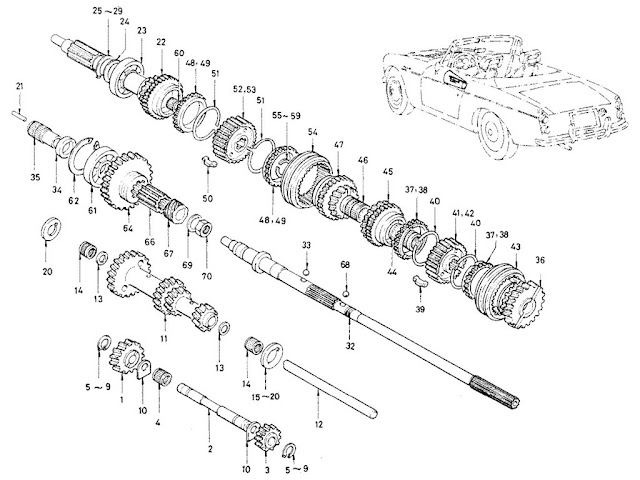

Datsun Fairlady Parts illustration no. 032A-1 Transmission Shaft & Gear 1600 (R16) (Warner Type)

032A -1  Transmission Shaft & Gear 1600 (R16) (Warner Type)
KeyPart No.ModelApplied DateQty
FromTo
1GEAR REVERSE
  32282-146001.6L WARNER   -   1
2SHAFT REVERSE
  32281-146011.6L WARNER   -   1
3GEAR REVERSE
  32284-146001.6L WARNER   -   1
4BEARING-NEEDLE REVERSE IDLER
  32283-146011.6L WARNER   -   1
5RING-SNAP T1.2
  32285-146001.6L WARNER   -   1
6RING-SNAP T1.4
  32285-146011.6L WARNER   -   1
7RING-SNAP T1.3
  32285-146021.6L WARNER   -   1
8RING-SNAP T1.5
  32285-146031.6L WARNER   -   1
9RING-SNAP T1.1
  32285-146041.6L WARNER   -   1
10WASHER-THRUST REVERSE IDLER
  32287-146001.6L WARNER   -   2
11GEAR COUNTER
  32213-W10011.6L WARNER   -   1
12SHAFT COUNTER
  32211-A09511.6L WARNER   -   1
13SPACER COUNTER
  32218-A06011.6L WARNER   -   2
14ASSY BEARING NEEDLE
  32219-A06001.6L WARNER   -   2
15WASHER-THRUST T2.35
  32224-A09001.6L WARNER   -   1
16WASHER-THRUST T2.40
  32225-A09001.6L WARNER   -   1
17WASHER-THRUST T2.45
  32225-A09011.6L WARNER   -   1
18WASHER-THRUST T2.50
  32225-A09021.6L WARNER   -   1
19WASHER-THRUST T2.60
  32225-A09031.6L WARNER   -   1
20WASHER-THRUST T2.60
  32225-A09041.6L WARNER   -   1
21RING-RETAINING
  32292-146001.6L WARNER   -   1
22MAIN DRIVE GEAR
  32200-A33101.6L WARNER   -   1
23BEARING-MAIN DRIVE
  37510-861601.6L WARNER   -   1
24SPACER-BEARING MAIN DRIVE
  32205-080021.6L WARNER   -   1
25RING-SNAP MAIN DRIVE T1.52
  32204-080011.6L WARNER   -   1
26RING-SNAP MAIN DRIVE T1.61
  32204-080011.6L WARNER   -   1
27RING-SNAP MAIN DRIVE T1.64
  32204-080021.6L WARNER   -   1
28RING-SNAP MAIN DRIVE T1.74
  32204-080031.6L WARNER   -   1
29RING-SNAP MAIN DRIVE T1.77
  32204-080041.6L WARNER   -   1
30RING-SNAP MAIN DRIVE
  32204-165001.6L WARNER   -   1
31RING-SNAP MAIN DRIVE
  32204-165011.6L WARNER   -   1
32SHAFT MAIN
  32241-146001.6L WARNER   -   1
33BALL-STEEL 5/32
  32720-146001.6L WARNER   -   1
34WASHER-THRUST
  32246-146001.6L WARNER   -   1
35BEARING-NEEDLE M/S
  32264-146011.6L WARNER   -   1
36GEAR-1ST M/S
  32230-732011.6L WARNER   -   1
37RING BAULK
  32604-P0100 1.6L WARNER   -   2
38RING BAULK
  32604-P01001.6L WARNER   -   2
39INSERT-SHIFTING
  32609-732011.6L WARNER   -   3
40SPRING-SPREAD
  32603-732001.6L WARNER   -   2
41HUB SYNCRONIZER 1ST & 2ND
  32601-732001.6L WARNER   -   1
42HUB SYNCRONIZER 1ST & 2ND
  32601-732001.6L WARNER   -   1
43SLEEVE-COUPLING
  32606-N71001.6L WARNER   -   1
44BEARING-NEEDLE M/S
  32264-146011.6L WARNER   -   1
45ASSY GEAR 2ND
  32250-W10001.6L WARNER   -   1
46BEARING-NEEDLE M/S
  32264-146011.6L WARNER   -   1
47GEAR 3RD SPEED
  32260-165101.6L WARNER   -   1
48RING BAULK
  32604-P0100 1.6L WARNER   -   2
49RING BAULK
  32604-P01001.6L WARNER   -   2
50INSERT-SHIFTING
  32609-732011.6L WARNER   -   3
51SPRING-SPREADED
  32603-732001.6L WARNER   -   2
52HUB-SYNCHRONIZER 3RD & 4TH
  32605-A86101.6L WARNER   -   1
53HUB-SYNCHRONIZER 3RD & 4TH
  32605-A86101.6L WARNER   -   1
54SLEEVE-COUPLING
  32606-N71001.6L WARNER   -   1
55RING-SNAP T1.40
  32263-146001.6L WARNER   -   1
56RING-SNAP T1.45
  32263-146011.6L WARNER   -   1
57RING-SNAP T1.50
  32263-146021.6L WARNER   -   1
58RING-SNAP T1.55
  32263-146031.6L WARNER   -   1
59RING-SNAP T1.60
  32263-146041.6L WARNER   -   1
60BEARING-PILOT M/S
  32272-G32011.6L WARNER   -   1
61BEARING MAIN SHAFT
  32273-369001.6L WARNER   -   1
62RING-SNAP M/S
  32274-369001.6L WARNER   -   1
63GEAR-REVERSE M/S
  32245-A09501.6L WARNER   -   1
64GEAR-REVERSE M/S
  32245-A09501.6L WARNER   -   1
65HUB-REVERSE M/S
  32258-A09001.6L WARNER   -   1
66HUB-REVERSE M/S
  32258-A09001.6L WARNER   -   1
67GEAR-SPEEDOMETER (5T)
  32701-158021.6L WARNER   -   1
68BALL-STEEL
  32720-369001.6L WARNER   -   1
69WASHER-LOCK M/S
  34414-267601.6L WARNER   -   1
70NUT-MAIN SHAFT
  32142-267601.6L WARNER   -   1
SHAFT REVERSE GEAR REVERSE BEARING-NEEDLE REVERSE IDLER RING-SNAP T1.2 / RING-SNAP T1.1 RING-SNAP T1.2 / RING-SNAP T1.1 WASHER-THRUST REVERSE IDLER GEAR COUNTER SHAFT COUNTER SPACER COUNTER WASHER-THRUST T2.60 RING-RETAINING BEARING-MAIN DRIVE WASHER-THRUST BEARING-NEEDLE M/S INSERT-SHIFTING SPRING-SPREAD SPRING-SPREAD SLEEVE-COUPLING RING BAULK BALL-STEEL 5/32 ASSY GEAR 2ND BEARING-NEEDLE M/S GEAR 3RD SPEED RING BAULK SPRING-SPREADED SLEEVE-COUPLING RING-SNAP T1.40 / RING-SNAP T1.60 BEARING-PILOT M/S BEARING MAIN SHAFT RING-SNAP M/S GEAR-REVERSE M/S HUB-REVERSE M/S WASHER-LOCK M/S NUT-MAIN SHAFT GEAR REVERSE WASHER-THRUST REVERSE IDLER SPACER COUNTER ASSY BEARING NEEDLE ASSY BEARING NEEDLE WASHER-THRUST T2.35 / WASHER-THRUST T2.60 MAIN DRIVE GEAR SPACER-BEARING MAIN DRIVE RING-SNAP MAIN DRIVE T1.52 / RING-SNAP MAIN DRIVE T1.77 SHAFT MAIN RING BAULK HUB SYNCRONIZER 1ST & 2ND GEAR-1ST M/S BEARING-NEEDLE M/S RING BAULK INSERT-SHIFTING SPRING-SPREADED HUB-SYNCHRONIZER 3RD & 4TH GEAR-SPEEDOMETER (5T) BALL-STEEL
SHAFT REVERSE GEAR REVERSE BEARING-NEEDLE REVERSE IDLER RING-SNAP T1.2 / RING-SNAP T1.1 RING-SNAP T1.2 / RING-SNAP T1.1 WASHER-THRUST REVERSE IDLER GEAR COUNTER SHAFT COUNTER SPACER COUNTER WASHER-THRUST T2.60 RING-RETAINING BEARING-MAIN DRIVE WASHER-THRUST BEARING-NEEDLE M/S INSERT-SHIFTING SPRING-SPREAD SPRING-SPREAD SLEEVE-COUPLING RING BAULK BALL-STEEL 5/32 ASSY GEAR 2ND BEARING-NEEDLE M/S GEAR 3RD SPEED RING BAULK SPRING-SPREADED SLEEVE-COUPLING RING-SNAP T1.40 / RING-SNAP T1.60 BEARING-PILOT M/S BEARING MAIN SHAFT RING-SNAP M/S GEAR-REVERSE M/S HUB-REVERSE M/S WASHER-LOCK M/S NUT-MAIN SHAFT GEAR REVERSE WASHER-THRUST REVERSE IDLER SPACER COUNTER ASSY BEARING NEEDLE ASSY BEARING NEEDLE WASHER-THRUST T2.35 / WASHER-THRUST T2.60 MAIN DRIVE GEAR SPACER-BEARING MAIN DRIVE RING-SNAP MAIN DRIVE T1.52 / RING-SNAP MAIN DRIVE T1.77 SHAFT MAIN RING BAULK HUB SYNCRONIZER 1ST & 2ND GEAR-1ST M/S BEARING-NEEDLE M/S RING BAULK INSERT-SHIFTING SPRING-SPREADED HUB-SYNCHRONIZER 3RD & 4TH GEAR-SPEEDOMETER (5T) BALL-STEEL
