Datsun Fairlady 2000 Transmission Shaft & Gear (5-spd Servo Synchro)

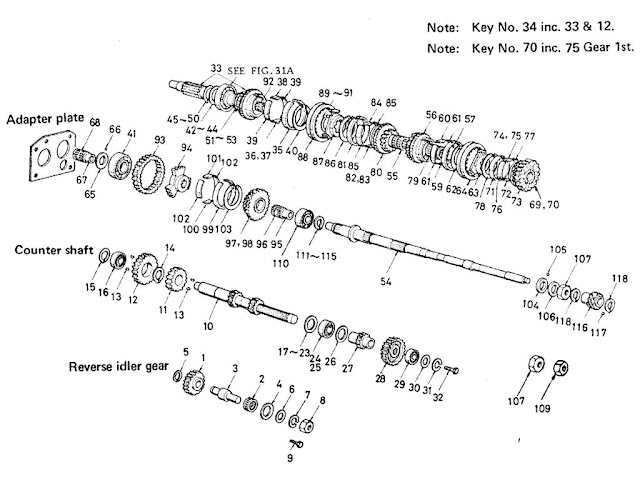

Datsun Fairlady Parts illustration no. 032B-1 Transmission Shaft & Gear 2000 (U20) (Servo Synchro Type)

032B -1 Transmission Shaft & Gear 2000 (U20) (Servo Synchro Type)

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	GEAR-REVERSE IDLER
	32282-78010	2L		-		1

2	BEARING-NEEDLE 20 X 26 X 20
	32272-36910	2L		-		1

3	SHAFT-REVERSE IDLER GEAR
	32281-78010	2L		-		1

4	WASHER-THRUST REVERSE IDLER
	32284-78000	2L		-		2

5	RING-SNAP, REVERSE IDLER
	32285-20100	2L		-		1

6	WASHER-PLAIN
	32294-78010	2L		-		1

7	WASHER-SPRING
	08915-1441A	2L		-		1

8	NUT-REVERSE IDLER SHAFT M14 X 1.50
	08911-3441A	2L		-		1

9	SCREW-SET, REVERSE IDLER
	32290-78000	2L		-		1

10	SHAFT-COUNTER (1: 11T, 2: 19T)
	32212-25501	2L		-		1

11	GEAR-COUNTER, 3RD, 26T
	32216-78010	2L		-		1

12	GEAR-COUNTER, 4TH, 28T
	32200-25550	2L		-		1

13	KEY-WOODRUF
	00926-51600	2L		-		4

14	SNAP RING
	00922-13200	2L		-		1

15	SNAP RING
	00922-12800	2L		-		1

16	BEARING-COUNTER SHAFT
	32273-14360	2L		-		1

17	SHIM-BEARING, COUNTER SHAFT T 1.0
	32218-20100	2L		-		1

18	SHIM-BEARING, COUNTER SHAFT T 0.9
	32218-20101	2L		-		1

19	SHIM-BEARING, COUNTER SHAFT T 0.8
	32218-20102	2L		-		1

20	SHIM-BEARING, COUNTER SHAFT T 0.7
	32218-20103	2L		-		1

21	SHIM-BEARING, COUNTER SHAFT T 0.6
	32218-20104	2L		-		1

22	SHIM-BEARING, COUNTER SHAFT T 0.5
	32218-20105	2L		-		1

23	SHIM-BEARING, COUNTER SHAFT T 0.4
	32218-20106	2L		-		1

24	BEARING-COUNTER SHAFT
	32203-E0100	2L		-		1

25	BEARING-COUNTER SHAFT
	32203-E0100	2L		-		1

26	RING-BEARING, COUNTER SHAFT
	32224-20100	2L		-		1

27	GEAR-COUNTER SHAFT, REVERSE
	32220-25500	2L		-		1

28	GEAR-COUNTER SHAFT, OVER DRIVE (5TH)
	32310-25500	2L		-		1

29	BEARING-COUNTER SHAFT, OVER DRIVE (5TH)
	32319-N4870	2L		-		1

30	WASHER-COUNTER SHAFT
	08915-5401A	2L		-		1

31	WASHER-SPRING
	08915-2401A	2L		-		1

32	BOLT-HEXAGON HEAD M10 X 1.5
	32236-25500	2L		-		1

33	ASSY-GEAR, MAIN DRIVE
	32200-25550	2L		-		1

34	ASSY-GEAR, MAIN DRIVE
	32200-25550	2L		-		1

35	RING-SYNCHRONIZER
	32611-14600	2L		-		1

36	BLOCK THRUST, 2ND, 3RD & 4TH
	32612-14603	2L		-		1

37	BLOCK THRUST, 2ND, 3RD & 4TH
	32612-14603	2L		-		1

38	BLOCK-ANCHOR
	32613-14601	2L		-		1

39	BAND-BRAKE,2,5
	32614-14600	2L		-		2

40	CIRCLIP
	32616-14600	2L		-		1

41	BEARING-MAIN DRIVE
	32273-04100	2L		-		1

42	SPACER-MAIN DRIVE BEARING T 2
	32205-20100	2L		-	6709	1

43	SPACER-MAIN DRIVE BEARING T 2.1
	32205-20101	2L		-	6709	1

44	SPACER-MAIN DRIVE BEARING T 2.2
	32205-20102	2L		-	6709	1

45	RING-SNAP, MAIN DRIVE GEAR T 1.80
	32204-78000	2L	6710	-		1

46	RING-SNAP, MAIN DRIVE GEAR T 1.87
	32204-78001	2L	6710	-		1

47	RING-SNAP, MAIN DRIVE GEAR T 1.94
	32204-78002	2L	6710	-		1

48	RING-SNAP, MAIN DRIVE GEAR T 2.01
	32204-78003	2L	6710	-		1

49	RING-SNAP, MAIN DRIVE GEAR T 2.08
	32204-78004	2L	6710	-		1

50	RING-SNAP, MAIN DRIVE
	32204-20100	2L		-	6709	1

51	RING-SNAP, MAIN DRIVE BEARING T 1.2
	32207-20100	2L		-		1

52	RING-SNAP, MAIN DRIVE BEARING T 1.4
	32207-20101	2L		-		1

53	RING-SNAP, MAIN DRIVE BEARING T 1.6
	32207-20102	2L		-		1

54	KIT-MAIN SHAFT
	32241-25500	2L		-		1

55	BEARING-NEEDLE ROLLER
	32264-14601	2L		-		1

56	ASSY-GEAR, 2ND
	32250-25501	2L		-		1

57	RING-SYNCHRONIZER
	32611-14600	2L		-		1

58	BLOCK THRUST, 2ND, 3RD & 4TH
	32612-14603	2L		-		1

59	BLOCK THRUST, 2ND, 3RD & 4TH
	32612-14603	2L		-		1

60	BLOCK-ANCHOR
	32613-14601	2L		-		1

61	BAND-BRAKE,2,5
	32614-14600	2L		-		2

62	CIRCLIP
	32616-14600	2L		-		1

63	HUB-SYNCHRONIZER
	32601-14600	2L		-		1

64	SLEEVE COUPLING, SYNCHRONIZER
	32606-14600	2L		-		1

65	WASHER-THRUST, MAIN SHAFT
	32246-78000	2L		-		1

66	BALL-THRUST WASHER, MAIN SHAFT
	32247-20100	2L		-		1

67	BUSHNG-1ST SPEED, MAIN SHAFT
	32253-14611	2L		-		1

68	BEARING-NEEDLE, ROLLER
	32264-14601	2L		-		1

69	ASSY-GEAR, 1ST
	32242-25525	2L		-		1

70	ASSY-GEAR, 1ST & BLOCKS WITHOUT BAND
	32242-25525	2L		-		1

71	RING-SYNCHRONIZER
	32611-14600	2L		-		1

72	BLOCK-THRUST
	32617-14601	2L		-		1

73	BLOCK-THRUST
	32617-14610	2L		-		1

74	BLOCK-ANCHOR
	32618-14601	2L		-		1

75	BLOCK-ANCHOR
	32613-14601	2L		-		1

76	BAND-BRAKE 2.5 (FOR 32242-25501)
	32614-14600	2L		-		1

77	BAND-BRAKE 2.2 (FOR 32242-25501)
	32615-14600	2L		-		1

78	CIRCLIP
	32616-14600	2L		-		1

79	BEARING-NEEDLE, ROLLER
	32264-14601	2L		-		1

80	ASSY-GEAR, 3RD
	32260-25501	2L		-		1

81	RING-SYNCHRONIZER
	32611-14600	2L		-		1

82	BLOCK-THRUST
	32612-14603	2L		-		1

83	BLOCK THRUST, 2ND, 3RD & 4TH
	32612-14603	2L		-		1

84	BLOCK-ANCHOR
	32613-14601	2L		-		1

85	BAND-BRAKE 2.5
	32614-14600	2L		-		2

86	CIRCLIP
	32616-14600	2L		-		1

87	HUB-SYNCHRONIZER
	32601-14600	2L		-		1

88	SLEEVE-COUPLING, SYNCHRONIZER
	32606-14600	2L		-		1

89	RING-SNAP, SYNCHRONIZER T 1.50
	32263-14601	2L		-		1

90	RING-SNAP, SYNCHRONIZER T 1.55
	32263-14602	2L		-		1

91	RING-SNAP, SYNCHRONIZER T 1.60
	32263-14603	2L		-		1

92	BEARING-MAIN SHAFT PILOT
	32272-36910	2L		-		1

93	ASSY-GEAR, REVERSE, MAIN SHAFT
	32245-25500	2L		-		1

94	HUB-SYNCHRONIZER, OVER DRIVE (5TH)
	32258-25500	2L		-		1

95	BUSHING-OVER DRIVE, MAIN SHAFT
	32349-E9800	2L		-		1

96	BEARING-NEEDLE, OVER DRIVE, MAIN SHAFT
	32350-25510	2L		-		2

97	ASSY-GEAR, OVER DRIVE, MAIN SHAFT
	32340-25501	2L		-		1

98	ASSY-GEAR, OVER DRIVE, MAIN SHAFT
	32340-25501	2L		-		1

99	RING-SYNCHRONIZER
	32361-20100	2L		-		1

100	BLOCK-THRUST
	32362-20100	2L		-		1

101	BLOCK-ANCHOR
	32363-20100	2L		-		1

102	BAND-BRAKE 2.5
	32364-20100	2L		-		2

103	CIRCLIP
	32366-20100	2L		-		1

104	WASHER-THRUST, OVER DRIVE, MAIN SHAFT
	32352-25501	2L		-		1

105	BALL-THRUST, OVER DRIVE, MAIN SHAFT
	32247-20100	2L		-		1

106	PLATE-LOCK T 0.8
	32353-78001	2L		-		1

107	NUT-HEXAGON
	32354-25501	2L		-		1

108	NUT-HEXAGON M27 X 1.0 (FOR 32241-25500)
	32354-25501	2L		-		1

109	NUT-HEXAGON M27 X 1.0 (FOR 32241-25500)
	32354-25501	2L		-		1

110	NUT-HEXAGON M27 X 1.0 (FOR 32241-25525)
	32354-A7400	2L		-		1

111	BEARING-OVER DRIVE, MAIN SHAFT
	32203-14360	2L		-		1

112	RING-SNAP T 1.1
	32228-20100	2L		-

113	RING-SNAP T 1.2
	32228-20101	2L		-

114	RING-SNAP T 1.3
	32228-20102	2L		-

115	RING SNAP T 1.4
	32228-20103	2L		-

116	GEAR-SPEEDOMETER DRIVE (6T)
	32701-E9800	2L		-		1

117	BALL-STEEL 1/4
	32720-36900	2L		-		1

118	RING-SNAP
	32228-20101	2L		-		2
