Datsun Fairlady 2000 Transmission Shaft & Gear (5-speed Warner)

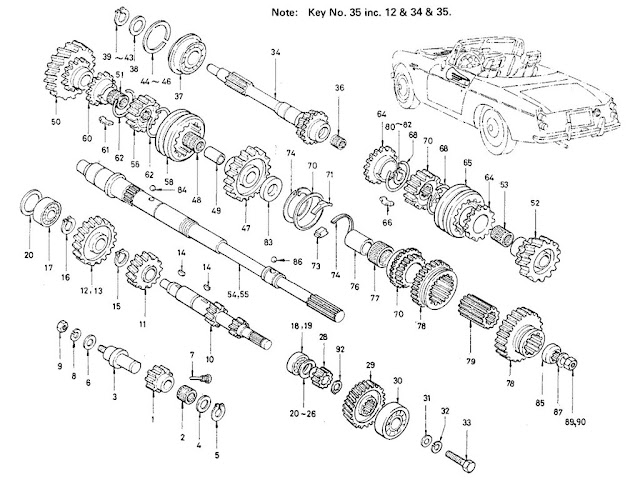

Datsun Fairlady Parts illustration no. 032C-1 Transmission Shaft & Gear 2000 (U20) (Warner Type)

032C -1  Transmission Shaft & Gear 2000 (U20) (Warner Type)
KeyPart No.ModelApplied DateQty
FromTo
1GEAR-REVERSE IDLER
  32282-780102L WARNER   -   1
2BEARING-NEEDLE 20 X 26 X 20
  32272-369102L WARNER   -   1
3SHAFT-REVERSE IDLER
  32281-780102L WARNER   -   1
4WASHER-THRUST REVERSE
  32284-780002L WARNER   -   2
5RING-SNAP REVERSE IDLER
  32285-201002L WARNER   -   1
6WASHER-PLAIN
  32294-780102L WARNER   -   1
7SCREW-SET REVERSE IDLER
  32290-780002L WARNER   -   1
8WASHER-SPRING
  08915-1441A2L WARNER   -   1
9NUT-REVERSE IDLER SHAFT
  08911-3441A2L WARNER   -   1
10SHAFT-COUNTER
  32212-255012L WARNER   -   1
11GEAR-3RD SPEED COUNTER
  32216-780102L WARNER   -   1
12GEAR DRIVE COUNTER SHAFT (SEE NOTE)
  32200-255502L WARNER   -   1
13GEAR DRIVE COUNTER SHAFT (SEE NOTE)
  32200-255502L WARNER   -   1
14KEY-WOODRUF
  00926-516002L WARNER   -   4
15RING-SNAP
  00922-132002L WARNER   -   1
16RING-SNAP
  00922-128002L WARNER   -   1
17BEARING-COUNTER SHAFT FRONT
  32273-143602L WARNER   -   1
18BEARING-COUNTER SHAFT REAR
  32203-E01002L WARNER   -   1
19BEARING-COUNTER SHAFT REAR
  32203-E01002L WARNER   -   1
20RING-BEARING COUNTER SHAFT
  32224-201002L WARNER   -   1
21SHIM-BEARING COUNTER 1.0
  32218-201002L WARNER   -   1
22SHIM-BEARING COUNTER 0.9
  32218-201012L WARNER   -   1
23SHIM-BEARING COUNTER 0.8
  32218-201022L WARNER   -   1
24SHIM-BEARING COUNTER 0.7
  32218-201032L WARNER   -   1
25SHIM-BEARING COUNTER 0.6
  32218-201042L WARNER   -   1
26SHIM-BEARING COUNTER 0.5
  32218-201052L WARNER   -   1
27SHIM-BEARING COUNTER 0.4
  32218-201062L WARNER   -   1
28GEAR-REVERSE COUNTER
  32220-255002L WARNER   -   1
29GEAR-OVER DRIVE COUNTER SHAFT
  32310-255002L WARNER   -   1
30BEARING-OVER DRIVE COUNTER SHAFT
  32319-N48702L WARNER   -   1
31WASHER-PLAIN
  08915-5401A2L WARNER   -   1
32WASHER-SPRING
  08915-2401A2L WARNER   -   1
33BOLT-HEX M10 X 1.5
  32236-255002L WARNER   -   1
34ASSY-GEAR MAIN DRIVE
  32200-780502L WARNER   -   1
35SET-DRIVE GEAR M/D
  32200-780502L WARNER   -   1
36BEARING-PILOT M/S
  32272-369102L WARNER   -   1
37BEARING-MAIN DRIVE
  32273-041002L WARNER   -   1
38SPACER-BEARING MAIN DRIVE
  32205-780002L WARNER   -   1
39RING-SNAP MAIN DRIVE GEAR
  32204-780002L WARNER   -   1
40RING-SNAP MAIN DRIVE GEAR
  32204-780012L WARNER   -   1
41RING-SNAP MAIN DRIVE GEAR
  32204-780022L WARNER   -   1
42RING-SNAP MAIN DRIVE GEAR
  32204-780032L WARNER   -   1
43RING-SNAP MAIN DRIVE GEAR
  32204-780042L WARNER   -   1
44RING-BEARING MAIN DRIVE
  32207-201002L WARNER   -   1
45RING-BEARING MAIN DRIVE
  32207-201012L WARNER   -   1
46RING-BEARING MAIN DRIVE
  32207-201022L WARNER   -   1
47ASSY-GEAR, 1ST SPEED M/S
  32242-A33002L WARNER   -   1
48BEARING-NEEDLE 1ST
  32264-146012L WARNER   -   1
49BUSHNG-1ST GEAR M/S
  32253-146112L WARNER   -   1
50ASSY-GEAR, 2ND SPEED M/S
  32250-A33002L WARNER   -   1
51BEARING-NEEDLE 2ND
  32264-146012L WARNER   -   1
52ASSY-GEAR, 3RD SPEED M/S
  32260-780102L WARNER   -   1
53BEARING-NEEDLE 3RD
  32264-146012L WARNER   -   1
54KIT-MAIN SHAFT
  32241-255002L WARNER   -   1
55KIT-MAIN SHAFT
  32241-255002L WARNER   -   1
56HUB-SYNCHRONIZER 1ST & 2ND
  32601-732002L WARNER   -   1
  32601-A86102L WARNER   -   1
57HUB-SYNCHRONIZER 1ST & 2ND
  32601-732002L WARNER   -   1
58SLEEVE-COUPLING
  32606-N71002L WARNER   -   1
59RING-BAULK
  32604-P0100 2L WARNER   -   2
60RING-BAULK
  32604-P01002L   -   2
61INSERT-SHIFTING
  32609-732012L WARNER   -   3
62SPRING-SPREAD
  32603-732002L WARNER   -   2
63HUB-SYNCHRONIZER 3RD & 4TH
  32605-780012L WARNER   -   1
64SLEEVE-COUPLING
  32606-N71002L WARNER   -   1
65RING-BAULK
  32604-P0100 2L WARNER   -   2
66INSERT-SHIFTING
  32609-732012L WARNER   -   3
67INSERT-SHIFTING
  32609-732012L WARNER   -   3
68SPRING-SPREAD
  32603-732002L WARNER   -   2
69ASSY-GEAR OVER DRIVE
  32340-255012L WARNER   -   1
70ASSY-GEAR OVER DRIVE
  32340-255012L WARNER   -   1
71RING-SYNCHRONIZER
  32361-201002L WARNER   -   1
72BLOCK-THRUST
  32362-201002L WARNER   -   1
73BLOCK-ANCHOR
  32363-201002L WARNER   -   1
74BAND-BRAKE 2.5
  32364-201002L WARNER   -   1
75CIRCLIP
  32366-201002L WARNER   -   1
76BUSHING-OVER DRIVE MAIN SHAFT
  32349-E98002L WARNER   -   1
77BEARING-NEEDLE OVER DRIVE
  32350-255102L WARNER   -   1
78GEAR-REVERSE MAIN SHAFT
  32245-255002L WARNER   -   1
79HUB-SYNCHRONIZER REVERSE & OVER DRIVE
  32258-255002L WARNER   -   1
80RING-SNAP SYNCHRO HUB
  32263-146012L WARNER   -   1
81RING-SNAP SYNCHRO HUB
  32263-146022L WARNER   -   1
82RING-SNAP SYNCHRO HUB
  32263-146032L WARNER   -   1
83WASHER-THRUST M/S
  32246-780002L WARNER   -   1
84BALL-THRUST WASHER M/S
  32247-201002L WARNER   -   1
85WASHER-THRUST OVER DRIVE M/S
  32352-255012L WARNER   -   1
86BALL-THRUST WASHER M/S
  32247-201002L WARNER   -   1
87PLATE-LOCK 0.8
  32353-780012L WARNER   -   1
88NUT-HEX M27 X 1.0
  32354-255012L WARNER   -   1
89NUT-HEX M27 X 1.0 (FOR 32241-25520)
  32354-255012L WARNER   -   1
90NUT-HEX M27 X 1.0 (FOR 32241-25525)
  32354-A74002L WARNER   -   1
91BEARING-OVER DRIVE MAIN SHAFT
  32203-143602L WARNER   -   1
92RING-SNAP OVER DRIVE BEARING
  32228-201002L WARNER   -   1
