Datsun Fairlady 1600/2000 Frame

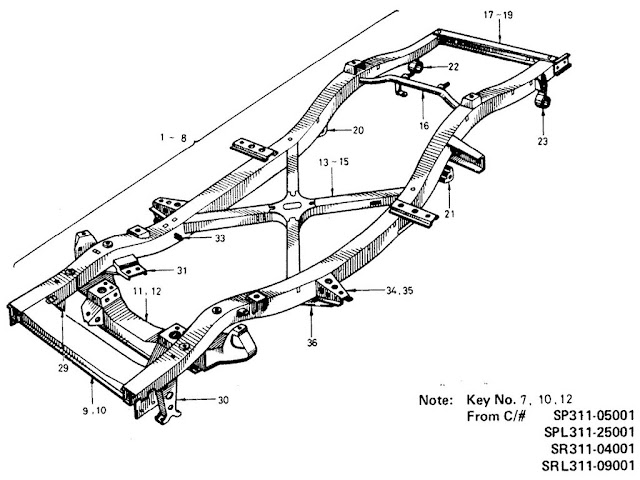

Datsun Fairlady Parts illustration no. 052-1 Frame

052 -1  Frame
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-FRAME W/FRONT SUS. MEMBER
  50100-14650SPL   - 67021
2ASSY-FRAME W/FRONT SUS. MEMBER
  50100-14651SP   - 67021
3ASSY-FRAME W/O FRONT SUS. MEMBER
  50100-25530ALL6703 - 67091
4ASSY-FRAME W/O FRONT SUS. MEMBER
  50100-25530ALL6703 - 67091
5ASSY-FRAME
  50100-255532L   - 67091
6ASSY-FRAME
  50100-25901 ALL   -   1
7ASSY-FRAME LESS SUSP.
  50100-25901ALL   -   1
8ASSY-FRAME
  50100-25901ALL   -   1
9ASSY-MEMBER, CROSS, FRONT
  51010-14600ALL   -   1
10ASSY-MEMBER, CROSS, FRONT
  51010-14601ALL   -   1
11ASSY-MEMBER, FRONT SUSPENSION
  54401-04102ALL   -   1
12ASSY-MEMBER, FRONT SUSPENSION
  54401-04103ALL   -   1
13ASSY-MEMBER, "X"TYPE
  51060-104001.6L   -   1
14ASSY-MEMBER, "X"TYPE
  51060-25950ALL6703 -   1
15ASSY-MEMBER, "X"TYPE
  51060-25950ALL6710 -   1
16ASSY-MEMBER, 3RD CROSS
  51030-14600ALL   -   1
17ASSY-MEMBER, 4TH CROSS
  51050-10400SP   -   1
18ASSY-MEMBER, 4TH CROSS
  51050-25500SPL   -   1
19ASSY-MEMBER, 4TH CROSS
  51050-25500ALL6703 -   1
20ASSY-BRACKET, REAR SPRING, FRONT RH
  55201-10400ALL   -   1
21ASSY-BRACKET, REAR SPRING, FRONT LH
  55202-10400ALL   -   1
22BRACKET-REAR SPRING, REAR RH
  55205-10400ALL   -   1
23BRACKET-REAR SPRING, REAR LH
  55206-10400ALL   -   1
24BOLT
  00114-62810ALL   -   6
25BOLT
  00114-62810ALL   -   6
26NUT
  00911-24610 ALL   -   2
27NUT
  00911-24610ALL   -   2
28WASHER-LOCK
  00916-21610ALL   -   6
29ASSY-BRACKET, FRONT STABILIZER RH
  54620-04200ALL   -   1
30ASSY-BRACKET, FRONT STABILIZER LH
  54621-04200ALL   -   1
31SUPPORT-ENGINE MOUTING, FRONT, RH
  11223-10401ALL   -   1
32SUPPORT-ENGINE MOUTING, FRONT, LH
  11224-10401ALL   -   1
33BRACKET-BRAKE HOSE
  46269-14600ALL   -   3
34BRACKET-TORQUE ROD, FRAME RIDE
  50140-25501ALL6703 -   1
35BRACKET-TORQUE ROD, FRAME RIDE
  50140-25501ALL6703 -   1
36REINFORCEMENT-TORQUE ROD
  50144-25901ALL6703 -   1
37GROMMET-BRAKE TUBE
  46228-25900ALL6703 -   1
38PROTECTOR-BRAKE TUBE
  46245-25500ALL   -   1
