Datsun Fairlady 1600/2000 Front Hub & Road Wheel

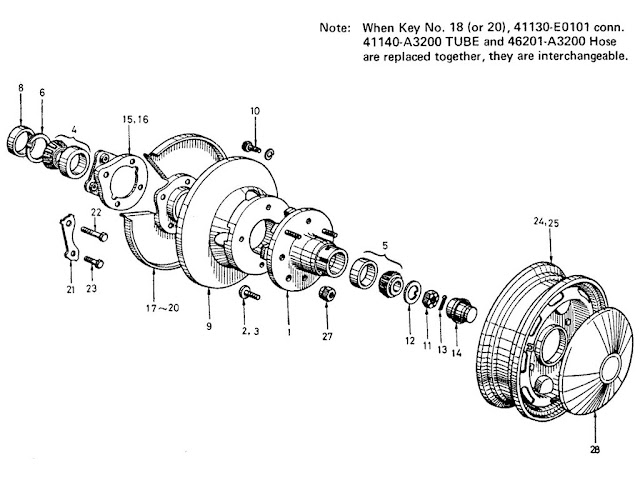

Datsun Fairlady Parts illustration no. 041-1 Front Hub & Road Wheel

041 -1  Front Hub & Road Wheel
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-HUB. ROAD WHEEL, FRONT
  40202-14650ALL   -   2
2BOLT-HUB, ROAD WHEEL
  40221-146001.6L   -   8
3BOLT-HUB, ROAD WHEEL
  40221-25500ALL6703 -   8
4BEARING-FRONT WHEEL, INNER
  38440-H1000ALL   -   2
5BEARING-FRONT WHEEL, OUTER
  40215-14600ALL   -   2
6SPACER-OIL SEAL, FRONT HUB
  40231-04100ALL   -   2
7SEAL-OIL, FRONT HUB
  40232-16500ALL   -   2
8SEAL-OIL, FRONT HUB
  40232-16500ALL   -   2
9ROTOR-DISC BRAKE
  40206-14600ALL   -   2
10BOLT-HUB ROTOR FIX
  40225-14600ALL   -   8
11NUT-KNUCKLE SPINDLE
  40040-04100ALL   -   2
12WASHER-FRONT WHEEL BEARING
  40264-E3200ALL   -   2
13PIN-COTTER
  00921-44010ALL   -   2
14CAP-HUB, FRONT WHEEL
  40234-14600ALL   -   2
15ADAPTER-CALIPER RH
  41020-14600ALL   -   1
16ADAPTER-CALIPER LH
  41030-14600ALL   -   1
17PLATE-BAFFLE RH
  41025-14600ALL   -   1
  41025-A3200ALL   -   1
18PLATE-BAFFLE RH
  41025-A3200ALL   -   1
19PLATE-BAFFLE LH
  41035-14600ALL   -   1
  41035-A3200ALL6907 -   1
20PLATE-BAFFLE LH
  41035-A3200ALL6907 -   1
21LOCK PLATE
  41025-04100ALL   -   4
22BOLT
  00134-65010ALL   -   4
23BOLT
  00134-63210ALL   -   4
24ASSY-WHEEL ROAD
  40300-146001.6L   - 67025
25ASSY-WHEEL ROAD
  40300-14601OP ALL6703 -   5
26NUT-LUG, ROAD WHEEL
  40225-28000ALL   -   16
27NUT-LUG, ROAD WHEEL
  40225-28000ALL   -   16
28ASSY-COVER, ROAD WHEEL
  40315-14600ALL   -   4
ASSY-HUB. ROAD WHEEL, FRONT BOLT-HUB, ROAD WHEEL BEARING-FRONT WHEEL, OUTER SEAL-OIL, FRONT HUB BOLT-HUB ROTOR FIX CAP-HUB, FRONT WHEEL ADAPTER-CALIPER RH / ADAPTER-CALIPER LH ASSY-WHEEL ROAD NUT-LUG, ROAD WHEEL ASSY-COVER, ROAD WHEEL BEARING-FRONT WHEEL, INNER SPACER-OIL SEAL, FRONT HUB ROTOR-DISC BRAKE NUT-KNUCKLE SPINDLE WASHER-FRONT WHEEL BEARING PIN-COTTER PLATE-BAFFLE RH / PLATE-BAFFLE LH LOCK PLATE BOLT BOLT
