Datsun Fairlady 1600/2000 Front Suspension - Part II

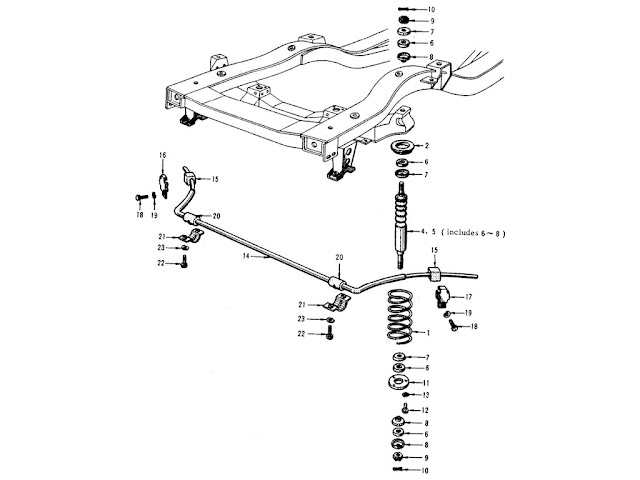

Datsun Fairlady Parts illustration no. 039-1 Front Suspension (2)

039 -1  Front Suspension (2)
KeyPart No.ModelApplied DateQty
FromTo
1SPRING-FRONT
  54010-10501ALL   -   2
2SEAT-RUBBER, FRONT SPRING
  54036-04100ALL   -   2
3KIT-ABSORBER, SHOCK, FRONT
  56110-25525 ALL   -   2
4KIT-ABSORBER, SHOCK, FRONT
  56110-25525ALL   -   2
5KIT-ABSORBER, SHOCK, FRONT
  56110-25525ALL6703 -   2
6BUSHING-SHOCK
  56112-W5000ALL   -   8
7WASHER-SPECIAL
  56113-60U0AALL   -   8
8WASHER-SPECIAL
  56114-09400ALL   -   4
9NUT
  00911-74610ALL   -   4
10PIN-COTTER
  00921-22210ALL   -   4
11BRACKET-MOUNTING, FRONT SHOCK ABSORBER, LOWER
  56115-04101ALL   -   2
12SCREW
  00369-41610ALL   -   6
13WASHER-LOCK
  00915-11410ALL   -   6
14BAR-TORSION, FRONT STABILIZER
  54611-04200ALL   -   1
15BUSHING-RUBBER, FRONT STABILIZER, LOWER LINK SIDE
  54616-04200ALL   -   2
16CLIP-FRONT STABILIZER, LINK SIDE RH
  54617-04200ALL   -   1
17CLIP-FRONT STABILIZER, LINK SIDE LH
  54618-04200ALL   -   1
18SCREW
  00369-00810ALL   -   2
19WASHER-LOCK
  00915-11000ALL   -   2
20BUSHING-RUBBER, FRONT STABILIZER, FRAME SIDE
  54613-04200ALL   -   2
21RETAINER-BUSH, FRONT STABILIZER, FRAME SIDE
  54614-04200ALL   -   2
22BOLT
  00114-41810ALL   -   4
23WASHER-LOCK
  00915-11400ALL   -   4
SPRING-FRONT KIT-ABSORBER, SHOCK, FRONT / KIT-ABSORBER, SHOCK, FRONT BUSHING-SHOCK BUSHING-SHOCK WASHER-SPECIAL SEAT-RUBBER, FRONT SPRING WASHER-SPECIAL WASHER-LOCK BUSHING-RUBBER, FRONT STABILIZER, LOWER LINK SIDE CLIP-FRONT STABILIZER, LINK SIDE RH CLIP-FRONT STABILIZER, LINK SIDE LH SCREW WASHER-LOCK SCREW WASHER-LOCK WASHER-SPECIAL BUSHING-SHOCK WASHER-SPECIAL NUT PIN-COTTER WASHER-SPECIAL NUT PIN-COTTER BRACKET-MOUNTING, FRONT SHOCK ABSORBER, LOWER SCREW BAR-TORSION, FRONT STABILIZER BUSHING-RUBBER, FRONT STABILIZER, FRAME SIDE RETAINER-BUSH, FRONT STABILIZER, FRAME SIDE BOLT WASHER-LOCK BUSHING-RUBBER, FRONT STABILIZER, LOWER LINK SIDE BUSHING-RUBBER, FRONT STABILIZER, FRAME SIDE WASHER-LOCK RETAINER-BUSH, FRONT STABILIZER, FRAME SIDE BOLT WASHER-SPECIAL BUSHING-SHOCK
