Datsun Fairlady 1600/2000 Front Outside

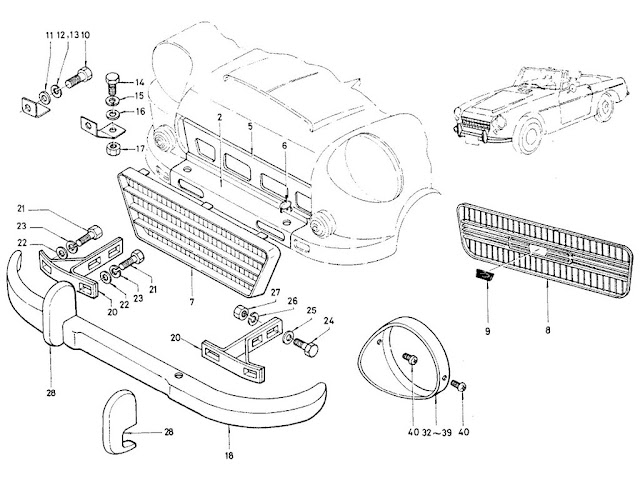

Datsun Fairlady Parts illustration no. 054-1 Front Outside View

054 -1  Front Outside View

PANEL-APRON, FRONT PLUG-HOLE, FOG LAMP ASSY-GRILLE, RADIATOR SCREW TO FIX HEAD LAMP RIM ASSY-BUMPER, FRONT ASSY-OVERRIDER ASSY-OVERRIDER BOLT TO FIX STAY TO BUMPER WASHER-PLAIN TO FIX STAY TO BUMPER ASSY-STAY, FRONT BUMPER WASHER-LOCK TO FIX STAY TO BUMPER WASHER-PLAIN SCREW TO FIX RADIATOR GRILLE WASHER-LOCK TO FIX RADIATOR GRILLE NUT TO FIX RADIATOR GRILLE ASSY-CROSS MEMBER,RADIATOR GRILLE EMBLEM-RADIATOR GRILLE SCREW TO FIX HEAD LAMP RIM RIM-HEADLAMP RH / RIM-HEADLAMP LH ASSY-STAY, FRONT BUMPER ASSY-GRILLE, RADIATOR BOLT WASHER-PLAIN WASHER-LOCK NUT WASHER-LOCK TO FIX STAY TO BUMPER BOLT TO FIX STAY TO BUMPER WASHER-PLAIN TO FIX STAY TO BUMPER SCREW WASHER-LOCK WASHER-LOCK WASHER-PLAIN TO FIX RADIATOR GRILLE
Key Part No. Model Applied Date Qty
From To
1PANEL-APRON, FRONT
 62600-255511.6L6710-1
 62600-25900 1.6L-1

2PANEL-APRON, FRONT
 62600-25551ALL6710-1
 62600-25900ALL6703-1

3PANEL-APRON, FRONT
 62600-25551ALL6710-1

4ASSY-CROSS MEMBER,RADIATOR GRILLE
 62330-255011.6L-1

5ASSY-CROSS MEMBER,RADIATOR GRILLE
 62330-25501ALL6703-1

6PLUG-HOLE, FOG LAMP
 62672-36700ALL-2

7ASSY-GRILLE, RADIATOR
 62300-146001.6L-1

8ASSY-GRILLE, RADIATOR
 62300-256002L-1

9EMBLEM-RADIATOR GRILLE
 62305-256002L-1

10SCREW
 00314-01210ALL-10

11WASHER-PLAIN
 00915-41010ALL-10

12WASHER-LOCK
 00915-11010ALL-10

13WASHER-LOCK
 00915-11010ALL-10

14SCREW TO FIX RADIATOR GRILLE
 00314-01210ALL-5

15WASHER-LOCK TO FIX RADIATOR GRILLE
 00915-11010ALL-5

16WASHER-PLAIN TO FIX RADIATOR GRILLE
 00915-41010ALL-8

17NUT TO FIX RADIATOR GRILLE
 00911-14010ALL-3

18ASSY-BUMPER, FRONT
 62650-10426ALL-1

19ASSY-STAY, FRONT BUMPER
 62670-255001.6L-2

20ASSY-STAY, FRONT BUMPER
 62670-25500ALL6703-2

21BOLT TO FIX STAY TO BUMPER
 00124-62010ALL-4

22WASHER-PLAIN TO FIX STAY TO BUMPER
 00915-41610ALL-4

23WASHER-LOCK TO FIX STAY TO BUMPER
 00915-11610ALL-4

24BOLT
 00114-62510ALL-4

25WASHER-PLAIN
 00915-41610ALL-4

26WASHER-LOCK
 00915-11610ALL-4

27NUT
 00911-24610ALL-4

28ASSY-OVERRIDER
 62663-10426ALL-2

29BOLT
 00114-51610ALL-4

30WASHER-PLAIN
 00915-41500ALL-4

31WASHER-LOCK
 00915-11900ALL-4

32RIM-HEADLAMP RH
 63821-104001.6L-68091

33RIM-HEADLAMP RH
 63821-256002L-68091

34RIM-HEADLAMP RH
 63821-10400ALL (EXC AUSTRALIA & DENMARK)6810-1

35RIM-HEADLAMP RH
 63821-25600AUSTRALIA & DENMARK6810-1

36RIM-HEADLAMP LH
 63822-104001.6L-68091

37RIM-HEADLAMP LH
 63822-256002L-68091

38RIM-HEADLAMP LH
 63822-10400ALL (EXC AUSTRALIA & DENMARK)6810-1

39RIM-HEADLAMP LH
 63822-25600AUSTRALIA & DENMARK6810-1

40SCREW TO FIX HEAD LAMP RIM
 00530-61020ALL-2

41SCREW TO FIX HEAD LAMP RIM
 08510-70812ALL-2
