Datsun Fairlady 1600/2000 Door Panel

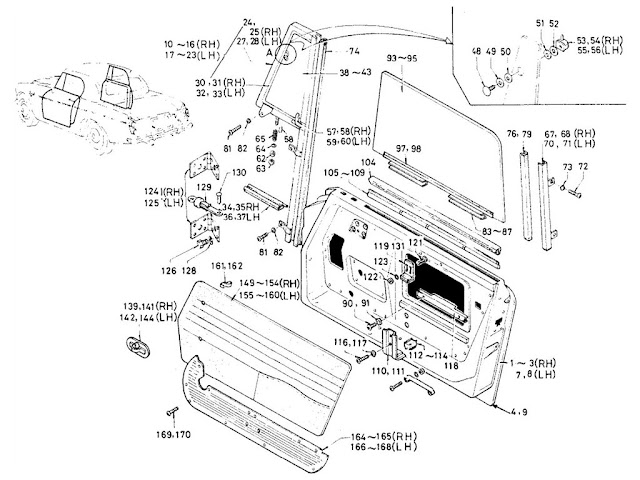

Datsun Fairlady Parts illustration no. 061-1 Door Panel

061 -1  Door Panel
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-PANEL, DOOR RH
  80100-146001.6L   - 67021
2ASSY-PANEL, DOOR RH
  80100-25550ALL6703 - 67091
3ASSY-PANEL, DOOR RH
  80100-25950ALL6710 -   1
4PANEL DOOR OUTER RH
  80152-25900ALL   -   1
5ASSY-PANEL DOOR LH
  80101-146001.6L   - 67021
6ASSY-PANEL DOOR LH
  80101-25551ALL6703 -   1
7ASSY-PANEL DOOR LH
  80101-25551ALL (EXC USA & CANADA)6703 -   1
8ASSY-PANEL DOOR LH
  80101-25950USA & CANADA6710 -   1
9PANEL DOOR OUTER LH
  80101-25950ALL   -   1
10ASSY-VENTILATOR, DOOR WINDOW RH
  80200-130021.6L   -   1
11ASSY-VENTILATOR, DOOR WINDOW RH
  80200-130021.6L   -   1
12ASSY-VENTILATOR, DOOR WINDOW RH
  80200-147021.6L   -   1
13ASSY-VENTILATOR, DOOR WINDOW RH
  80200-147021.6L   -   1
14ASSY-VENTILATOR, DOOR WINDOW RH
  80200-25601ALL6703 - 67091
15ASSY-VENTILATOR, DOOR WINDOW RH
  80200-25601ALL6703 - 67091
16ASSY-VENTILATOR, DOOR WINDOW RH
  80200-25900ALL6710 -   1
17ASSY-VENTILATOR, DOOR WINDOW LH
  80201-130021.6L   -   1
18ASSY-VENTILATOR, DOOR WINDOW LH
  80201-130021.6L   -   1
19ASSY-VENTILATOR, DOOR WINDOW LH
  80201-147021.6L   -   1
20ASSY-VENTILATOR, DOOR WINDOW LH
  80201-147021.6L   -   1
21ASSY-VENTILATOR, DOOR WINDOW LH
  80201-25601ALL6703 - 67091
22ASSY-VENTILATOR, DOOR WINDOW LH
  80201-25601ALL6703 - 67091
23ASSY-VENTILATOR, DOOR WINDOW LH
  80201-25900ALL6710 -   1
24ASSY-CHANNEL SASH DOOR VENT RH
  80270-146001.6L   -   1
25ASSY-CHANNEL SASH DOOR VENT RH
  80270-25500ALL6703 - 67091
26ASSY-CHANNEL SASH DOOR VENT RH
  80210-25900ALL6710 -   1
27ASSY-CHANNEL SASH DOOR VENT LH
  80271-146001.6L   -   1
28ASSY-CHANNEL SASH DOOR VENT LH
  80271-25500ALL6703 - 67091
29ASSY-CHANNEL SASH DOOR VENT LH
  80211-25900ALL6710 -   1
30WEATHERSTRIP DOOR VENTILATOR RH
  80241-12900ALL   - 67091
31WEATHERSTRIP DOOR VENTILATOR RH
  80241-25900ALL6710 -   1
32WEATHERSTRIP DOOR VENTILATOR LH
  80242-12900ALL   - 67091
33WEATHERSTRIP DOOR VENTILATOR LH
  80242-25900ALL6710 -   1
34WEATHERSTRIP DOOR VENTILATOR OUTER RH
  80243-14600ALL   - 67091
35WEATHERSTRIP DOOR VENTILATOR OUTER RH
  80243-25900ALL6710 -   1
36WEATHERSTRIP DOOR VENTILATOR OUTER LH
  80244-12900ALL   - 67091
37WEATHERSTRIP DOOR VENTILATOR OUTER LH
  80244-25900ALL6710 -   1
38GLASS-DOOR VENTILATOR (AS TEMPERED SHEET)
  80255-130021.6L   -   2
39GLASS-DOOR VENTILATOR (AS TEMPERED SHEET)
  80255-130021.6L   -   2
40GLASS-DOOR VENTILATOR (AS TEMPERED SHEET)
  80255-129001.6L   -   2
41GLASS-DOOR VENTILATOR (AS TEMPERED SHEET)
  80255-129001.6L   -   2
42GLASS-DOOR VENTILATOR
  80255-12900ALL6703 - 67092
43GLASS-DOOR VENTILATOR
  80280-25900ALL6710 -   2
44SASH-VENT RH
  80256-12900ALL   -   1
45SASH-VENT LH
  80257-12900ALL   -   1
46RUBBER GLAZE
  80284-12900ALL   -   2
47RUBBER VENT, SASH UPPER
  80292-25900ALL6710 -   2
48BOLT-ROUND HEAD
  00334-01012ALL   -   2
49WASHER-SPACER
  80246-129001.6L   -   2
50WASHER-SPACER
  80246-25500ALL6703 -   2
51WASHER-SPACER
  80248-12900ALL   -   2
52WASHER-SPACER
  80247-12900ALL   -   2
53HOLDER-BRACKET, PIVOT
  80245-12900ALL   -   2
54HOLDER-BRACKET, PIVOT RH
  80245-12901ALL   - 67021
55HOLDER-BRACKET, PIVOT LH
  80249-129001.6L   - 67021
56HOLDER-BRACKET, PIVOT LH
  80249-12900ALL6703 -   1
57HANDLE VENT RH
  80206-129001.6L   -   1
58HANDLE VENT RH
  80261-25500ALL6703 -   1
59HANDLE VENT LH
  80207-129001.6L   -   1
60HANDLE VENT LH
  80262-25500ALL6703 -   1
61TUBE-PIVOT
  80263-12900ALL   -   2
62NUT-LOCK
  00911-34410ALL   -   2
63NUT
  00911-14410ALL   -   2
64WASHER-PLAIN
  08911-10637ALL   -   4
65SPRING-DOOR VENTILATOR
  80247-32200ALL   -   2
66SASH-CHANNEL DOOR REAR RH
  80220-146001.6L   -   1
67SASH-CHANNEL DOOR REAR RH
  80220-14600ALL6703 - 67091
68SASH-CHANNEL DOOR REAR RH
  80250-25900ALL6710 -   1
69SASH-CHANNEL DOOR REAR LH
  80221-146001.6L   -   1
70SASH-CHANNEL DOOR REAR LH
  80221-14600ALL6703 - 67091
71SASH-CHANNEL DOOR REAR LH
  80251-25900ALL6710 -   1
72SCREW TO FIX SASH REAR
  00314-41214ALL   -   4
73WASHER-LOCK TO FIX SASH REAR
  08916-33610ALL   -   4
74RUBBER GLASS RUN "A"
  80335-10400ALL   -   2
75RUBBER GLASS RUN "A"
  80245-25900ALL6710 - 68092
76RUBBER GLASS RUN "A" RH
  80245-25900ALL6810 -   1
77RUBBER GLASS RUN "A" LH
  80246-25900ALL6810 -   1
78RUBBER GLASS RUN "B"
  80336-10400 ALL   -   2
79RUBBER GLASS RUN "B"
  80336-10400ALL   -   2
80RUBBER GLASS RUN "B"
  80336-10400ALL   -   2
81SCREW TO FIX VENTILATOR
  00314-41214ALL   -   6
82WASHER-LOCK TO FIX VENTILATOR
  08916-33610ALL   -   6
83CHANNEL DOOR
  80302-10400ALL   -   2
84ASSY-CHANNEL BOTTOM RH
  80302-14600ALL   - 67091
85ASSY-CHANNEL BOTTOM RH
  80302-25900ALL6710 -   1
86ASSY-CHANNEL BOTTOM LH
  80303-14600ALL   - 67091
87ASSY-CHANNEL BOTTOM RH
  80303-25900ALL   - 67091
88STOPPER DOOR WINDOW GLASS
  80316-12900ALL   -   2
89STOPPER DOOR WINDOW GLASS
  80316-14600ALL   -   2
90SCREW
  00314-41214ALL   -   2
91WASHER-SPRING
  00915-11410ALL   -   2
92GLASS WINDOW DOOR
  80306-13001ALL   - 67092
93GLASS WINDOW DOOR
  80306-13001ALL   - 67092
94GLASS WINDOW DOOR
  80306-13001ALL   - 67092
95GLASS WINDOW DOOR
  80306-25900ALL   - 67092
96RUBBER-GLAZING, DOOR GLASS
  80312-25900 1.6L   -   2
97RUBBER-GLAZING, DOOR GLASS
  80312-25900ALL   - 67092
98RUBBER-GLAZING, DOOR GLASS
  80312-25900ALL6710 -   2
99ASSY-GARNISH WITH W/S RH
  80328-25500ALL6703 - 67091
100ASSY-GARNISH WITH W/S RH
  80328-25900ALL6710 -   1
101ASSY-GARNISH WITH W/S LH
  80329-25500ALL6703 - 67091
102ASSY-GARNISH WITH W/S LH
  80329-25900ALL6710 -   1
103WEATHERSTRIP DOOR WINDOW OUTER
  80341-12900ALL   - 67092
104WEATHERSTRIP DOOR WINDOW OUTER
  80341-25900ALL6710 -   2
105WEATHERSTRIP DOOR WINDOW INNER RH
  80330-129001.6L   - 67021
106WEATHERSTRIP DOOR WINDOW INNER LH
  80331-129001.6L   - 67021
107WEATHERSTRIP DOOR WINDOW
  80330-25500ALL6703 - 67092
108WEATHERSTRIP DOOR WINDOW INNER RH
  80330-25900ALL6710 -   1
109WEATHERSTRIP DOOR WINDOW INNER LH
  80331-25900ALL6710 -   1
110ASSY-STOPPER DOOR GLASS LOWER
  80314-104001.6L   - 67022
111ASSY-STOPPER DOOR GLASS LOWER
  80314-25500ALL6703 -   2
112CUSHION-GLASS LOWER
  80317-00800ALL   - 67092
113CUSHION-GLASS LOWER
  80317-A3200ALL   -   2
114CUSHION-GLASS LOWER
  80317-A3200ALL   -   2
115CLIP-CUSHION
  80919-22500ALL6710 -   2
116SCREW TO FIX STOPPER & GUIDE RAIL
  00314-41214ALL   -   4
117WASHER-LOCK TO FIX STOPPER & GUIDE RAIL
  00915-11410ALL   -   4
118RAIL-GUIDE
  80308-10400ALL   -   2
119ANGLE-STOPPER, DOOR WINDOW RH
  80316-10400ALL   -   1
120ANGLE-STOPPER, DOOR WINDOW LH
  80316-12900ALL   -   1
121SCREW TO FIX STOPPER ANGLE
  00314-41214ALL   -   2
122NUT TO FIX STOPPER ANGLE
  00911-14410ALL   -   2
123WASHER-LOCK TO FIX STOPPER ANGLE
  00915-11410ALL   -   2
124HINGE DOOR RH
  80400-10400ALL   -   2
125HINGE DOOR LH
  80400-104001.6L   -   2
126BOLT
  00114-41810ALL   -   32
127WASHER-LOCK
  00915-11410ALL   -   32
128WASHER-LOCK
  00915-11410ALL   -   32
129LINK DOOR CHECK
  80410-14600ALL   -   2
130RIVET
  82451-30000ALL   -   2
131HANDLE-PULL
  80691-255001.6L   -   2
132HANDLE-PULL ANTI DAZZLE
  80691-25500ALL6703 - 67092
133HANDLE-PULL ANTI DAZZLE
  80691-A0600ALL6710 -   2
134HANDLE-PULL ANTI DAZZLE
  80691-A0600ALL6710 -   2
135SCREW
  00314-01220ALL   -   4
136NUT
  00911-14010ALL   -   4
137WASHER-LOCK
  00915-41010ALL   -   4
138WASHER-LOCK
  00915-41010ALL   -   4
139ASSY-COVER REMOTE CONTROL RH
  80510-25500ALL6703 - 67091
140ASSY-COVER REMOTE CONTROL RH
  80512-25900ALL6710 -   1
141ASSY-COVER REMOTE CONTROL RH
  80512-25900ALL6710 -   1
142ASSY-COVER REMOTE CONTROL LH
  80511-25500ALL6703 - 67091
143ASSY-COVER REMOTE CONTROL LH
  80513-25900ALL6710 -   1
144SCREW TO ATTACH COVER
  00324-01012ALL6703 -   2
145ASSY-ESCUTCHION REMOTE CONTROL RH
  80512-25900ALL   -   1
  80512-A7400ALL   -   1
146ASSY-ESCUTCHION REMOTE CONTROL RH
  80512-A7400ALL   -   1
147ASSY-ESCUTCHION REMOTE CONTROL LH
  80513-25900ALL   -   1
  80513-A7400ALL   -   1
148ASSY-ESCUTCHION REMOTE CONTROL LH
  80513-A7400ALL   -   1
149ASSY-TRIMMING DOOR RH (RED)
  80950-129001.6L   - 67021
150ASSY-TRIMMING DOOR RH (RED)
  80950-25500ALL6703 - 67091
151ASSY-TRIMMING DOOR RH (RED)
  80950-25900ALL6710 -   1
152ASSY-TRIMMING DOOR RH (BLACK)
  80950-129011.6L   - 67021
153ASSY-TRIMMING DOOR RH (BLACK)
  80950-25501ALL6703 - 67091
154ASSY-TRIMMING DOOR RH (BLACK)
  80950-25901ALL6710 -   1
155ASSY-TRIMMING DOOR LH (RED)
  80951-129001.6L   - 67021
156ASSY-TRIMMING DOOR LH (RED)
  80951-25600ALL6703 - 67091
157ASSY-TRIMMING DOOR LH (RED)
  80951-25900ALL6710 -   1
158ASSY-TRIMMING DOOR LH (BLACK)
  80951-129011.6L   - 67021
159ASSY-TRIMMING DOOR LH (BLACK)
  80951-25601ALL6703 - 67091
160ASSY-TRIMMING DOOR LH (BLACK)
  80951-25901ALL6710 -   1
161CLIP DOOR FINISHER
  80919-14600ALL   -   10
162CLIP DOOR FINISHER
  80919-32200ALL   -   18
163PLATE-KICKING DOOR INSIDE RH
  80811-255001.6L   - 67091
164PLATE-KICKING DOOR INSIDE RH
  80811-25500ALL6703 - 67091
165PLATE-KICKING DOOR INSIDE RH
  80811-25900ALL6710 -   1
166PLATE-KICKING DOOR INSIDE LH
  80812-129001.6L   - 67021
167PLATE-KICKING DOOR INSIDE LH
  80812-25500ALL6703 - 67091
168PLATE-KICKING DOOR INSIDE LH
  80812-25900ALL6710 -   1
169SCREW TO FIX KICKING PLATE
  08510-71012ALL   -   10
170SCREW TO FIX KICKING PLATE
  08510-71012ALL   -   6
ASSY-CHANNEL SASH DOOR VENT RH ASSY-CHANNEL SASH DOOR VENT LH WEATHERSTRIP DOOR VENTILATOR RH RUBBER GLASS RUN "A" WASHER-SPACER WASHER-SPACER HANDLE VENT RH WEATHERSTRIP DOOR WINDOW INNER RH / WEATHERSTRIP DOOR WINDOW INNER LH SASH-CHANNEL DOOR REAR RH WASHER-LOCK TO FIX SASH REAR HANDLE VENT RH ASSY-PANEL, DOOR RH PANEL DOOR OUTER RH / PANEL DOOR OUTER LH ASSY-PANEL DOOR LH RAIL-GUIDE SCREW / WASHER-SPRING NUT TO FIX STOPPER ANGLE ANGLE-STOPPER, DOOR WINDOW RH HANDLE-PULL SCREW TO FIX STOPPER ANGLE SCREW TO FIX VENTILATOR NUT-LOCK WASHER-PLAIN HINGE DOOR LH BOLT SCREW TO FIX VENTILATOR ASSY-TRIMMING DOOR RH (RED) / ASSY-TRIMMING DOOR RH (BLACK) ASSY-TRIMMING DOOR LH (RED) / ASSY-TRIMMING DOOR LH (BLACK) PLATE-KICKING DOOR INSIDE LH ASSY-COVER REMOTE CONTROL RH ASSY-COVER REMOTE CONTROL RH ASSY-CHANNEL SASH DOOR VENT RH ASSY-VENTILATOR, DOOR WINDOW RH ASSY-VENTILATOR, DOOR WINDOW LH WEATHERSTRIP DOOR VENTILATOR LH GLASS WINDOW DOOR GLASS-DOOR VENTILATOR (AS TEMPERED SHEET) / GLASS-DOOR VENTILATOR WASHER-SPACER BOLT-ROUND HEAD WASHER-SPACER HOLDER-BRACKET, PIVOT / HOLDER-BRACKET, PIVOT RH HOLDER-BRACKET, PIVOT LH HANDLE VENT LH RUBBER-GLAZING, DOOR GLASS WEATHERSTRIP DOOR WINDOW OUTER CHANNEL DOOR / ASSY-CHANNEL BOTTOM RH SASH-CHANNEL DOOR REAR LH SCREW TO FIX SASH REAR RUBBER GLASS RUN "A" RH RUBBER GLASS RUN "B" ASSY-STOPPER DOOR GLASS LOWER CUSHION-GLASS LOWER SCREW TO FIX STOPPER & GUIDE RAIL / WASHER-LOCK TO FIX STOPPER & GUIDE RAIL WASHER-LOCK TO FIX STOPPER ANGLE WASHER-LOCK TO FIX VENTILATOR RIVET LINK DOOR CHECK NUT SPRING-DOOR VENTILATOR HINGE DOOR RH WASHER-LOCK CLIP DOOR FINISHER WASHER-LOCK TO FIX VENTILATOR WEATHERSTRIP DOOR VENTILATOR OUTER RH WEATHERSTRIP DOOR VENTILATOR OUTER LH SCREW TO FIX KICKING PLATE PLATE-KICKING DOOR INSIDE RH ASSY-COVER REMOTE CONTROL LH SCREW TO ATTACH COVER
