Datsun Fairlady 1600/2000 Floor Trimming

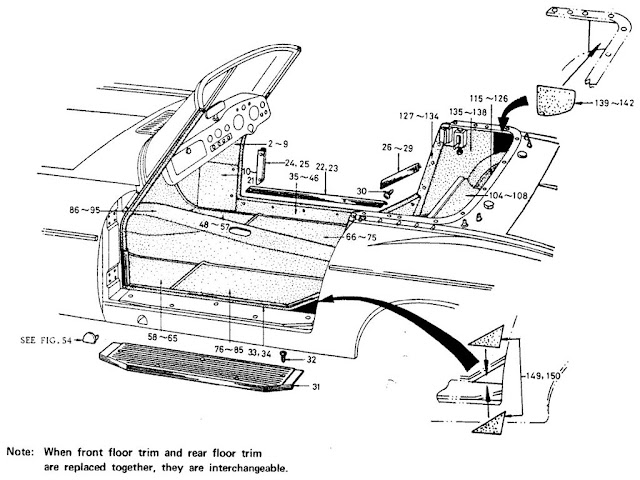

Datsun Fairlady Parts illustration no. 057-1 Floor Trimming

057 -1  Floor Trimming
KeyPart No.ModelApplied DateQty
FromTo
1TRIMMING-COWL SIDE, TOP (BLACK)
  66920-12900ALL   -   2
2TRIMMING-COWL SIDE, UPPER RH (RED)
  66915-12900ALL   - 67091
3TRIMMING-COWL SIDE, UPPER RH (RED)
  66915-25900ALL6710 -   1
4TRIMMING-COWL SIDE, UPPER RH (BLACK)
  66915-12901ALL   - 67091
5TRIMMING-COWL SIDE, UPPER RH (BLACK)
  66915-25901ALL6710 -   1
6TRIMMING-COWL SIDE, UPPER LH (RED)
  66916-12900ALL   - 67091
7TRIMMING-COWL SIDE, UPPER LH (RED)
  66916-25900ALL6710 -   1
8TRIMMING-COWL SIDE, UPPER LH (BLACK)
  66916-12901ALL   - 67091
9TRIMMING-COWL SIDE, UPPER LH (BLACK)
  66916-25901ALL6710 -   1
10TRIMMING-COWL SIDE, LOWER RH (RED)
  66911-14600ALL   - 67091
11TRIMMING-COWL SIDE, LOWER RH (RED)
  66907-A4500ALL6710 -   1
12TRIMMING-COWL SIDE, LOWER RH (RED)
  66907-A4500ALL6810 -   1
13TRIMMING-COWL SIDE, LOWER RH (BLACK)
  66911-14601ALL   - 67091
14TRIMMING-COWL SIDE, LOWER RH (BLACK)
  66907-A4501ALL6710 -   1
15TRIMMING-COWL SIDE, LOWER RH (BLACK)
  66907-A4501ALL6810 -   1
16TRIMMING-COWL SIDE, LOWER LH (RED)
  66912-14600ALL   - 67091
17TRIMMING-COWL SIDE, LOWER LH (RED)
  66908-A4500ALL   -   1
18TRIMMING-COWL SIDE, LOWER LH (RED)
  66908-A4500ALL   -   1
19TRIMMING-COWL SIDE, LOWER LH (BLACK)
  66912-14601ALL   - 67091
20TRIMMING-COWL SIDE, LOWER LH (BLACK)
  66908-A4501ALL   -   1
21TRIMMING-COWL SIDE, LOWER LH (BLACK)
  66908-A4501ALL   -   1
22PLATE-SCUFF, CENTER RH
  74932-14600ALL   -   1
23PLATE-SCUFF, CENTER LH
  74933-14600ALL   -   1
24PLATE-SCUFF, FRONT RH
  74934-14600ALL   -   1
25PLATE-SCUFF, FRONT LH
  74936-14600ALL   -   1
26PLATE-SCUFF, REAR RH
  74937-146001.6L   - 67021
27PLATE-SCUFF, REAR RH
  74937-25500ALL6703 -   1
28PLATE-SCUFF, REAR LH
  74938-146001.6L   - 67021
29PLATE-SCUFF, REAR LH
  74938-25500ALL6703 -   1
30SCREW TO FIX SCUFF PLATE
  08530-71010ALL   -   18
31PLATE KICKING, SILL, OUTER
  74935-12900ALL   -   2
32SCREW TO FIX KICKING PLATE
  08513-30812ALL   -   10
33WEATHERSTRIP-DOOR
  76802-104001.6L   - 67022
34WEATHERSTRIP-DOOR
  76802-25500ALL6703 -   2
35TRIM PANEL SILL RH (RED)
  76901-129001.6L   - 67021
36TRIM PANEL SILL RH (RED)
  76901-25500ALL6703 - 67091
37TRIM PANEL SILL RH (RED)
  76901-25900ALL6710 -   1
38TRIM PANEL SILL RH (BLACK)
  76901-129011.6L   - 67021
39TRIM PANEL SILL RH (BLACK)
  76901-25501ALL6703 - 67091
40TRIM PANEL SILL RH (BLACK)
  76901-25901ALL6710 -   1
41TRIM PANEL SILL LH (RED)
  76902-129001.6L   - 67021
42TRIM PANEL SILL LH (RED)
  76902-25500ALL6703 - 67091
43TRIM PANEL SILL LH (RED)
  76902-25900ALL6710 -   1
44TRIM PANEL SILL LH (BLACK)
  76902-129011.6L   - 67021
45TRIM PANEL SILL LH (BLACK)
  76902-25501ALL6703 - 67091
46TRIM PANEL SILL LH (BLACK)
  76902-25901ALL6710 -   1
47PLUG-RUBBER
  74942-04100ALL   -   2
48TRIM FLOOR FRONT RH (RED)
  74921-14600SP   - 67021
49TRIM FLOOR FRONT RH (RED)
  74921-25900SP, SR   -   1
  74921-25500SP, SR6703 -   1
50TRIM FLOOR FRONT RH (RED)
  74921-25900SP, SR   -   1
51TRIM FLOOR FRONT RH (BLACK)
  74921-14601SP   - 67021
52TRIM FLOOR FRONT RH (BLACK)
  74921-14701SP, SR   -   1
  74921-25501SP, SR6703 -   1
53TRIM FLOOR FRONT RH (BLACK)
  74921-14701SP, SR   -   1
54TRIM FLOOR FRONT RH (RED)
  74921-14700SPL, SRL   -   1
  74921-26000SPL, SRL   -   1
55TRIM FLOOR FRONT RH (RED)
  74921-26000SPL, SRL   -   1
56TRIM FLOOR FRONT RH (BLACK)
  74921-14701SPL, SRL   -   1
57TRIM FLOOR FRONT RH (BLACK)
  74921-14701SPL, SRL   -   1
58TRIM FLOOR FRONT LH (RED)
  74922-14600SP, SR   -   1
  74922-25900SP, SR   -   1
59TRIM FLOOR FRONT LH (RED)
  74922-25900SP, SR   -   1
60TRIM FLOOR FRONT LH (BLACK)
  74922-14701SP, SR   -   1
  74922-25901SP, SR   -   1
61TRIM FLOOR FRONT LH (BLACK)
  74922-25901SP, SR   -   1
62TRIM FLOOR FRONT LH (RED)
  74922-14700SPL, SRL   -   1
  74922-26000SPL, SRL   -   1
63TRIM FLOOR FRONT LH (RED)
  74922-26000SPL, SRL   -   1
64TRIM FLOOR FRONT LH (BLACK)
  74922-14701SPL, SRL   -   1
  74922-26001SPL, SRL   -   1
65TRIM FLOOR FRONT LH (BLACK)
  74922-26001SPL, SRL   -   1
66TRIM FLOOR REAR RH (RED)
  74925-130021.6L   - 67021
67TRIM FLOOR REAR RH (RED)
  74925-26002ALL   -   1
  74925-25600ALL6703 -   1
68TRIM FLOOR REAR RH (RED)
  74925-26002ALL   -   1
69TRIM FLOOR REAR RH (RED) FOR ANTI-ROLL BAR
  74925-26002OP ALL   -   1
  74925-26004OP ALL   -   1
70TRIM FLOOR REAR RH (RED) FOR ANTI-ROLL BAR
  74925-26004OP ALL   -   1
71TRIM FLOOR REAR RH (BLACK)
  74925-130031.6L   - 67021
72TRIM FLOOR REAR RH (BLACK)
  74925-26003ALL   -   1
  74925-25601ALL6703 -   1
73TRIM FLOOR REAR RH (BLACK)
  74925-26003ALL   -   1
74TRIM FLOOR REAR RH (BLACK)
  74925-26005OP ALL   -   1
  74925-26001OP ALL6710 -   1
75TRIM FLOOR REAR RH (BLACK) FOR ANTI-ROLL BAR
  74925-26005OP ALL   -   1
76TRIM FLOOR REAR LH (RED)
  74926-130021.6L   - 67021
77TRIM FLOOR REAR LH (RED)
  74926-26002ALL   -   1
  74926-25600ALL6703 - 67091
78TRIM FLOOR REAR LH (RED)
  74926-26002ALL   -   1
79TRIM FLOOR REAR LH (RED)
  74926-26000OP ALL6710 -   1
80TRIM FLOOR REAR LH (RED)
  74926-26004OP ALL   -   1
81TRIM FLOOR REAR LH (BLACK)
  74926-130011.6L   - 67021
82TRIM FLOOR REAR LH (BLACK)
  74926-26003ALL   -   1
  74926-25601ALL6703 -   1
83TRIM FLOOR REAR LH (BLACK)
  74926-26003ALL   -   1
84TRIM FLOOR REAR LH (BLACK)
  74926-26005OP ALL   -   1
  74926-26001OP ALL6710 -   1
85TRIM FLOOR REAR LH (BLACK)
  74926-26005OP ALL   -   1
86TRIM-TUNNEL PANEL CENTER (RED)
  74927-146001.6L   - 67021
87TRIM-TUNNEL PANEL CENTER (RED)
  74927-25500ALL6703 - 67091
88TRIM-TUNNEL PANEL CENTER (RED)
  74931-25900ALL   -   1
89TRIM-TUNNEL PANEL CENTER (RED)
  74931-25900L DRIVE   -   1
90TRIM-TUNNEL PANEL CENTER (RED)
  74931-25900R DRIVE   -   1
91TRIM-TUNNEL PANEL CENTER (BLACK)
  74927-146011.6L   - 67021
92TRIM-TUNNEL PANEL CENTER (BLACK)
  74927-25501ALL6703 - 67091
93TRIM-TUNNEL PANEL CENTER (BLACK)
  74931-25901ALL   -   1
94TRIM-TUNNEL PANEL CENTER (BLACK)
  74931-25901L DRIVE   -   1
95TRIM-TUNNEL PANEL CENTER (BLACK)
  74931-25901R DRIVE   -   1
96TRIM-FLOOR END (RED)
  74928-129021.6L   - 67021
97TRIM-FLOOR END (RED)
  74928-25500ALL6703 - 67091
98TRIM-FLOOR END (RED)
  74933-A4500ALL   -   1
99TRIM-FLOOR END (RED)
  74933-A4500ALL   -   1
100TRIM-FLOOR END (BLACK)
  74928-129031.6L   - 67021
101TRIM-FLOOR END (BLACK)
  74928-25501ALL6703 - 67091
102TRIM-FLOOR END (BLACK)
  74933-A4501ALL   -   1
103TRIM-FLOOR END (BLACK)
  74933-A4501ALL   -   1
104ASSY-TRIM PARCEL SHELF (RED)
  74950-146001.6L   - 67021
105ASSY-TRIM PARCEL SHELF (RED)
  74950-25500ALL6703 -   1
106ASSY-TRIM PARCEL SHELF FOR ANTI-ROLL BAR
  74950-25500OP ALL   -   1
107ASSY-TRIM PARCEL SHELF (BLACK)
  74950-146011.6L   - 67021
108ASSY-TRIM PARCEL SHELF (BLACK)
  74950-25501ALL6703 -   1
109ASSY-TRIM PARCEL SHELF END (RED)
  79900-146001.6L   - 67021
110ASSY-TRIM PARCEL SHELF END (RED)
  79900-25500ALL6703 - 67091
111ASSY-TRIM PARCEL SHELF END (RED)
  79900-25500ALL6710 -   1
112ASSY-TRIM PARCEL SHELF END (BLACK)
  79900-146011.6L   - 67021
113ASSY-TRIM PARCEL SHELF END (BLACK)
  79900-25501ALL6703 - 67091
114ASSY-TRIM PARCEL SHELF END (BLACK)
  79900-25601ALL6710 -   1
115TRIM-PANEL WHEEL RH HOUSE (RED)
  76931-146001.6L   - 67021
116TRIM-PANEL WHEEL RH HOUSE (RED)
  76931-25500ALL6703 - 67091
117TRIM-PANEL WHEEL RH HOUSE (RED)
  76931-25900ALL6710 -   1
118TRIM-PANEL WHEEL RH HOUSE (BLACK)
  76931-146011.6L   - 67021
119TRIM-PANEL WHEEL RH HOUSE (BLACK)
  76931-25501ALL6703 - 67091
120TRIM-PANEL WHEEL RH HOUSE (BLACK)
  76931-25901ALL6710 -   1
121TRIM-PANEL WHEEL LH HOUSE (RED)
  76932-146001.6L   - 67021
122TRIM-PANEL WHEEL LH HOUSE (RED)
  76932-25500ALL6703 - 67091
123TRIM-PANEL WHEEL LH HOUSE (RED)
  76932-25900ALL6710 -   1
124TRIM-PANEL WHEEL LH HOUSE (BLACK)
  76932-146011.6L   - 67021
125TRIM-PANEL WHEEL LH HOUSE (BLACK)
  76932-25501ALL6703 - 67091
126TRIM-PANEL WHEEL LH HOUSE (BLACK)
  76932-25901ALL6710 -   1
127TRIM-LOCK PILLAR RH (RED)
  76903-146001.6L   - 67021
128TRIM-LOCK PILLAR RH (RED)
  76903-25500ALL6703 -   1
129TRIM-LOCK PILLAR RH (BLACK)
  76903-146011.6L   - 67021
130TRIM-LOCK PILLAR RH (BLACK)
  76903-25501ALL6703 -   1
131TRIM-LOCK PILLAR LH (RED)
  76904-146001.6L   - 67021
132TRIM-LOCK PILLAR LH (RED)
  76904-25500ALL6703 -   1
133TRIM-LOCK PILLAR LH (BLACK)
  76904-146011.6L   - 67021
134TRIM-LOCK PILLAR LH (BLACK)
  76904-25501ALL6703 -   1
135TRIM QUARTER PANEL RH (RED)
  76921-14600ALL   -   1
136TRIM QUARTER PANEL RH (BLACK)
  76921-14601ALL   -   1
137TRIM QUARTER PANEL LH (RED)
  76922-14600ALL   -   1
138TRIM QUARTER PANEL LH (BLACK)
  76922-14601ALL   -   1
139TRIM EXTENSION RH (RED)
  76923-25500ALL   -   1
140TRIM EXTENSION RH (BLACK)
  76923-25501ALL   -   1
141TRIM EXTENSION LH (RED)
  76924-25500ALL   -   1
142TRIM EXTENSION LH (BLACK)
  76924-25501ALL   -   1
143CAP-LOCK PILLAR TOP RH
  76810-146001.6L   - 67021
144CAP-LOCK PILLAR TOP LH
  76811-146001.6L   - 67021
145CAP-LOCK PILLAR TOP RH & LH
  76810-25500ALL6703 -   2
146SCREW
  00530-61620ALL   -   8
147BAND-PARCEL (RED)
  74820-25500ALL6710 -   1
148BAND-PARCEL (BLACK)
  74820-25501ALL6710 -   1
149TRIM GUSSET (BLACK) RH
  76907-25500ALL   -   1
150TRIM GUSSET (BLACK) LH
  76908-25500ALL   -   1
PLATE-SCUFF, FRONT RH / PLATE-SCUFF, FRONT LH PLATE-SCUFF, CENTER RH / PLATE-SCUFF, CENTER LH SCREW TO FIX SCUFF PLATE TRIMMING-COWL SIDE, LOWER RH (RED) TRIMMING-COWL SIDE, LOWER LH (BLACK) TRIM FLOOR FRONT RH (RED) / TRIM FLOOR FRONT RH (BLACK) TRIM-LOCK PILLAR RH (RED) / TRIM-LOCK PILLAR LH (BLACK) TRIM EXTENSION RH (RED) / TRIM EXTENSION LH (BLACK) TRIM FLOOR FRONT LH (RED) / TRIM FLOOR FRONT LH (BLACK) PLATE KICKING, SILL, OUTER SCREW TO FIX KICKING PLATE WEATHERSTRIP-DOOR TRIM FLOOR REAR LH (RED) / TRIM FLOOR REAR LH (BLACK) TRIMMING-COWL SIDE, UPPER RH (RED) / TRIMMING-COWL SIDE, UPPER LH (BLACK) TRIM PANEL SILL RH (RED) / TRIM PANEL SILL LH (BLACK) PLATE-SCUFF, REAR RH / PLATE-SCUFF, REAR LH TRIM-TUNNEL PANEL CENTER (RED) / TRIM-TUNNEL PANEL CENTER (BLACK) TRIM FLOOR REAR RH (RED) / TRIM FLOOR REAR RH (BLACK) FOR ANTI-ROLL BAR TRIM QUARTER PANEL RH (RED) / TRIM QUARTER PANEL LH (BLACK) TRIM-PANEL WHEEL RH HOUSE (RED) / TRIM-PANEL WHEEL LH HOUSE (BLACK) ASSY-TRIM PARCEL SHELF (RED) / ASSY-TRIM PARCEL SHELF (BLACK) TRIM GUSSET (BLACK) RH / TRIM GUSSET (BLACK) LH
