Datsun Fairlady 1600/2000 Instrument & Console Fitting

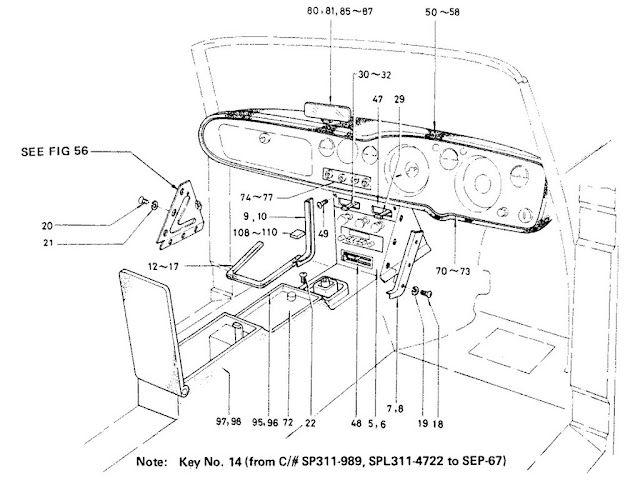

Datsun Fairlady Parts illustration no. 056A-1 Instrument & Console Fitting (1965-67.5)

056A -1  Instrument & Console Fitting (1965-67.5)
KeyPart No.ModelApplied DateQty
FromTo
1FINISHER-DEF NOZZLE RH
  68710-25900ALL6710 -   1
2FINISHER-DEF NOZZLE LH
  68711-25900ALL6710 -   1
3MOULDING-CONSOLE REAR
  68137-146001.6L   -   1
4MOULDING-CONSOLE REAR
  68137-255002L   -   1
5FINISH-CONSOLE PANEL
  68131-146001.6L   - 67021
6FINISH-CONSOLE PANEL
  68131-25500ALL6703 -   1
7MOULDING-CONSOLE PANEL FRONT RH
  68132-146001.6L   - 67021
8MOULDING-CONSOLE PANEL FRONT RH
  68132-25500ALL6703 -   1
9MOULDING-CONSOLE PANEL FRONT LH
  68133-146001.6L   - 67021
10MOULDING-CONSOLE PANEL FRONT LH
  68133-25500ALL6703 - 67091
11MOULDING FRONT
  68132-25901ALL6710 -   1
12MOULDING REAR GRAY
  68134-146001.6L   -   1
13MOULDING REAR GRAY
  68134-146001.6L   -   1
14MOULDING REAR BLACK
  68134-146101.6L   -   1
15MOULDING REAR BLACK
  68133-146021.6L6710 -   1
16MOULDING-CONSOLE PANEL REAR BLACK
  68137-255002L   - 67091
17MOULDING-CONSOLE PANEL REAR BLACK
  68133-259011.6L6710 -   1
18SCREW TO FIX FRONT MOULDING RH
  08510-71012ALL   -   3
19WASHER TO FIX FRONT MOULDING RH
  00915-10610ALL   -   3
20SCREW TO FIX FRONT MOULDING LH
  00340-61210ALL   -   3
21WASHER TO FIX FRONT MOULDING LH
  00915-10610ALL   -   3
22SCREW TO FIX REAR MOULDING
  00320-61210ALL   -   4
23TRIM-CONSOLE SIDE RH (BLACK)
  68702-12900ALL   -   1
24TRIM-CONSOLE SIDE RH (RED)
  68702-12901ALL   -   1
25TRIM-CONSOLE SIDE LH (BLACK)
  68701-12900ALL   -   1
26TRIM-CONSOLE SIDE LH (RED)
  68701-12901ALL   -   1
27LEVER-VENT CONTROL RH
  68152-129001.6L   -   1
28LEVER-VENT RH
  68152-14600ALL   - 67091
29LEVER-VENT RH
  66516-25901ALL6710 -   1
30LEVER-VENT CONTROL LH
  68151-129001.6L   -   1
31LEVER-VENT LH
  68153-14600ALL   - 67091
32LEVER-VENT LH
  66517-25901ALL6710 -   1
33SPRING-CONTROL
  68147-12900ALL   -   2
34BOLT TO FIX CONTROL LEVER
  00114-42210ALL   -   2
35WASHER-PLAIN TO FIX CONTROL LEVER
  08911-10637ALL   -   2
36WASHER-LOCK TO FIX CONTROL LEVER
  00915-11410ALL   -   2
37NUT TO FIX CONTROL LEVER
  00911-14410ALL   -   2
38ASSY-CABLE, VENTILATOR CONTROL
  66570-25901 ALL   -   2
39ASSY-CABLE, VENTILATOR CONTROL
  66570-25901SPL, SRL6710 -   2
40ASSY-CABLE, VENTILATOR CONTROL
  66570-25901SP, SR6710 -   1
41ASSY-CABLE, VENTILATOR CONTROL
  66570-25901SP, SR6710 -   1
42SCREW TO FIX WIRE CONTROL
  00314-01210ALL   -   2
43NUT TO FIX WIRE CONTROL
  00911-14010ALL   -   2
44WASHER-LOCK TO FIX WIRE CONTROL
  00915-11010ALL   -   2
45PLATE-CABLE CLAMP
  68148-12900ALL   -   2
46SCREW
  00310-80812ALL   -   2
47ESCUTCHEON-VENTILATOR CONTROL
  68135-12900ALL   -   1
48ESCUTCHEON-HEATER CONTROL
  68136-12900ALL   -   1
49SCREW
  00510-81010ALL   -   2
50PAD-INSTRUMENT (BLACK)
  68300-12900SP   - 67021
51PAD-INSTRUMENT (BLACK)
  F8300-25501SP, SR   - 67091
52PAD-INSTRUMENT (BLACK)
  F8300-25501SP, SR   - 67091
53PAD-INSTRUMENT (BLACK)
  68100-25950SP, SR6710 -   1
54PAD-INSTRUMENT (BLACK)
  68100-25950SP, SR6710 -   1
55PAD-INSTRUMENT (BLACK)
  F8300-25601SPL   - 67021
56PAD-INSTRUMENT (RED)
  68300-13001SPL   - 67021
57PAD-INSTRUMENT (BLACK)
  F8300-25601SPL, SRL   - 67091
58PAD-INSTRUMENT (BLACK)
  F8300-25601SPL, SRL   - 67091
59PAD-INSTRUMENT (BLACK)
  68100-A3351SPL, SPLU, SRL, SRLU6710 -   1
60PAD-INSTRUMENT (BLACK)
  68100-A3351SPL, SRL6810 -   1
61PAD-INSTRUMENT (BLACK)
  68100-A3351SPL, SRL6810 -   1
62PAD-INSTRUMENT (BLACK)
  68101-A3301SPLU, SRLU6810 -   1
63SCREW TO FIX INSTRUMENT PAD
  00334-01210ALL   -   7
64SCREW TO FIX INSTRUMENT PAD
  00334-01210ALL   -   7
65WASHER-FINISH TO FIX INSTRUMENT PAD
  00915-81020ALL   -   7
66SCREW TO FIX INSTRUMENT PAD
  00314-01610ALL   -   7
67WASHER-PLAIN TO FIX INSTRUMENT PAD
  00915-41010ALL   -   7
68SCREW TO FIX INSTRUMENT PAD
  00314-01610ALL   -   6
69WASHER-PLAIN TO FIX INSTRUMENT PAD
  00915-41010ALL   -   6
70MOULDING-INSTRUMENT
  68860-12900SP   - 67021
71MOULDING-INSTRUMENT
  68860-25500SP, SR6703 -   1
72MOULDING-INSTRUMENT
  68860-12900SPL   - 67021
73MOULDING-INSTRUMENT
  68860-25600SPL, SRL6703 -   1
74FINISHER-SWITCH
  68149-14600SP   - 67021
75FINISHER-SWITCH
  68149-25500SP, SR6703 -   1
76FINISHER-SWITCH
  68149-14700SPL   - 67021
77FINISHER-SWITCH
  68149-25600SPL, SRL6703 -   1
78EMBLEM-INSTRUMENT
  68850-25900ALL6710 -   1
79NUT-PUSH ON
  68603-25900ALL6710 -   2
80ASSY-BACK MIRROR INSIDE
  96321-146001.6L   - 67021
81ASSY-BACK MIRROR INSIDE
  96321-25500ALL6703 - 67091
82ASSY-BACK MIRROR INSIDE
  96321-25901ALL6710 -   1
83SET-BACK MIRROR INSIDE
  96322-25900ALL6710 -   1
84BASE-BACK MIRROR INSIDE
  96323-25900ALL6710 -   1
85ASSY-BACK MIRROR INSIDE
  96321-255011.6L   - 67021
86ASSY-BACK MIRROR INSIDE
  96321-25501OP ALL6703 - 67091
87ASSY-BACK MIRROR INSIDE
  96321-25901OP ALL6710 -   1
88SET-BACK MIRROR INSIDE
  96322-25901OP ALL6710 -   1
89SCREW-MAIN
  00524-41620SP   -   1
90SCREW-MAIN
  00324-52012SPL   -   1
92ASH TRAY
  96500-14601ALL   - 67091
93ASH TRAY
  96500-25900ALL6710 -   1
94PACKING-RUBBER FLOOR ASH TRAY
  74347-25900ALL6710 -   1
95MOULDING-ASH TRAY
  74813-14601ALL   - 67091
96MOULDING-ASH TRAY
  74813-25901ALL6710 -   1
97ASSY-BOX GLOVE FLOOR (RED)
  74801-14602ALL   - 67091
98ASSY-BOX GLOVE FLOOR (BLACK)
  74801-14603ALL   - 67091
99ASSY-BOX GLOVE FLOOR (BLACK)
  74801-25950ALL   -   1
100ASSY-BOX GLOVE FLOOR W/LOCK (BLACK)
  74801-25950ALL   -   1
101LOCK CYLINDER
  74815-255001.6L   - 67091
102LOCK CYLINDER
  74815-25500ALL6703 - 67091
103LOCK CYLINDER
  74815-25900ALL6710 -   1
104SCREW TO FIX CYLINDER LOCK
  00314-41214ALL   -   2
105WASHER-LOCK TO FIX CYLINDER LOCK
  00915-11410ALL   -   2
106SCREW
  00334-01420ALL   -   4
107WASHER-LOCK
  00916-41010ALL   -   4
108PAD-FOOT REST DRIVER
  67145-14700SPL   - 67021
109PAD-FOOT REST DRIVER
  67145-25500ALL6703 -   1
110ASSY-FOOT REST ASSIST
  74340-25550OP ALL6703 -   1
111PAD-ASSIST
  74342-25500OP ALL6703 -   1
112GROMMET-SW HOLE
  68158-25900ALL6710 -   1
113ASSY COVER INSTRUMENT
  68625-A3200R DRIVE6810 -   1
114ASSY COVER INSTRUMENT
  68625-A3300L DRIVE6810 -   1
LEVER-VENT CONTROL LH / LEVER-VENT LH ESCUTCHEON-VENTILATOR CONTROL LEVER-VENT RH SCREW TO FIX FRONT MOULDING LH MOULDING REAR GRAY / MOULDING-CONSOLE PANEL REAR BLACK FINISHER-SWITCH PAD-FOOT REST DRIVER / ASSY-FOOT REST ASSIST ASSY-BOX GLOVE FLOOR (RED) / ASSY-BOX GLOVE FLOOR (BLACK) MOULDING-ASH TRAY MOULDING-INSTRUMENT MOULDING-CONSOLE PANEL FRONT RH FINISH-CONSOLE PANEL ESCUTCHEON-HEATER CONTROL ASSY-BACK MIRROR INSIDE ASSY-BACK MIRROR INSIDE PAD-INSTRUMENT (BLACK) WASHER TO FIX FRONT MOULDING LH MOULDING-CONSOLE PANEL FRONT LH SCREW MOULDING-INSTRUMENT SCREW TO FIX FRONT MOULDING RH WASHER TO FIX FRONT MOULDING RH SCREW TO FIX REAR MOULDING ASSY COVER INSTRUMENT LOCK CYLINDER ASSY-BOX GLOVE FLOOR (BLACK) / ASSY-BOX GLOVE FLOOR W/LOCK (BLACK) SCREW TO FIX FRONT MOULDING RH PAD-INSTRUMENT (BLACK) PAD-INSTRUMENT (BLACK) EMBLEM-INSTRUMENT NUT-PUSH ON ASH TRAY MOULDING-ASH TRAY MOULDING FRONT WASHER TO FIX FRONT MOULDING RH ASSY-BACK MIRROR INSIDE PAD-INSTRUMENT (BLACK) MOULDING-CONSOLE PANEL FRONT RH
