Datsun Fairlady 1600/2000 Instrument & Console Panel

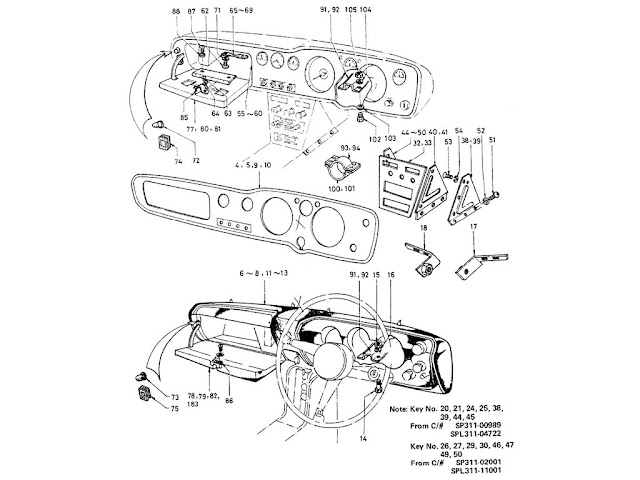

Datsun Fairlady Parts illustration no. 056-1 Instrument & Console Panel

056 -1  Instrument & Console Panel
KeyPart No.ModelApplied DateQty
FromTo
1BRACKET-BRAKE PEDAL
  46472-14600SP   -   1
2BRACKET-BRAKE PEDAL
  46472-14700SPL   -   1
3BRACKET-CLUTCH PEDAL
  46473-12900ALL   -   1
4ASSY-PANEL INSTRUMENT GRAY
  68100-14600SP   - 67021
5ASSY-PANEL INSTRUMENT BLACK
  68100-25500SP, SR6703 - 67091
6ASSY-PANEL INSTRUMENT BLACK
  68100-A3351 SP, SR6710 -   1
7ASSY-PANEL INSTRUMENT BLACK
  68100-A3351SP, SR6710 -   1
8ASSY-PANEL INSTRUMENT BLACK
  68100-A3351SP, SR6810 -   1
9ASSY-PANEL INSTRUMENT GRAY
  68100-14700SPL   - 67021
10ASSY-PANEL INSTRUMENT BLACK
  68100-25600SPL, SRL6703 - 67091
11ASSY-PANEL INSTRUMENT BLACK
  68100-A3351 SPL, SPLU, SRL, SRLU   -   1
12ASSY-PANEL INSTRUMENT W/PAD BLACK
  68100-A3351SPL, SPLU, SRL, SRLU   -   1
13ASSY-PANEL INSTRUMENT
  68100-A3351SPL, SPLU, SRL, SRLU6810 -   1
14BOLT TO FIX INSTRUMENT (SEE FIG 23)
  00114-41210ALL   -   4
15NUT TO FIX INSTRUMENT (SEE FIG 23)
  00911-14410ALL   -   4
16WASHER-LOCK TO FIX INSTRUMENT (SEE FIG 23)
  00915-11410ALL   -   4
17ASSY-BRACKET INST CENTER RH
  68170-A3200ALL6810 -   1
18ASSY-BRACKET INST CENTER LH
  68171-A3200ALL6810 -   1
19ASSY-PANEL CONSOLE
  68120-12930ALL   -   1
20PANEL-CONSOLE MAIN & RH W/TRIM (RED)
  68120-146001.6L   -   1
21PANEL-CONSOLE MAIN & RH W/TRIM (BLACK)
  68120-146001.6L   -   1
22PANEL-CONSOLE MAIN
  68120-146001.6L   -   1
  68702-129511.6L   -   1
23PANEL-CONSOLE MAIN
  68120-146001.6L   -   1
24TRIM-CONSOLE MAIN & RH (RED)
  68702-129001.6L   -   1
25TRIM-CONSOLE MAIN & RH (BLACK)
  68702-129011.6L   -   1
26PANEL-CONSOLE MAIN & RH W/TRIM (RED)
  68120-25550ALL6703 -   1
27PANEL-CONSOLE MAIN & RH W/TRIM (BLACK)
  68120-25551ALL6703 -   1
28PANEL-CONSOLE MAIN
  68120-25500ALL   -   3
29TRIM-CONSOLE MAIN & RH (RED)
  68702-12900ALL6703 -   1
30TRIM-CONSOLE MAIN & RH (BLACK)
  68702-12901ALL6703 -   1
31PANEL-CONSOLE MAIN
  68120-25501ALL   -   1
32ASSY-PANEL CONSOLE MAIN
  68120-A3200ALL6710 -   1
33ASSY-PANEL CONSOLE MAIN
  68120-A3200ALL6810 -   1
34BOLT TO FIX CONSOLE PANEL, UPPER
  00114-41410ALL   -   3
35WASHER-LOCK TO FIX CONSOLE PANEL, UPPER
  00915-11410ALL   -   3
36WASHER-PLAIN TO FIX CONSOLE PANEL, UPPER
  08911-10637ALL   -   3
37PANEL-CONSOLE, LH
  68122-129301.6L   -   1
38PANEL-CONSOLE LH W/TRIM (RED)
  68701-129501.6L   -   1
39PANEL-CONSOLE LH W/TRIM (BLACK)
  68701-129511.6L   -   1
40PANEL-CONSOLE RH (RED)
  68123-14600ALL   -   1
41PANEL-CONSOLE RH (BLACK)
  68123-14601ALL   -   1
42PANEL-CONSOLE LH (RED)
  68122-14600ALL   -   1
43PANEL-CONSOLE LH (BLACK)
  68122-14601ALL   -   1
44TRIM-CONSOLE LH (RED)
  68701-129001.6L   -   1
45TRIM-CONSOLE LH (BLACK)
  68701-129011.6L   -   1
46PANEL-CONSOLE LH W/TRIM (RED)
  68122-25550ALL6703 -   1
47PANEL-CONSOLE LH W/TRIM (BLACK)
  68122-25551ALL6703 -   1
48PANEL-CONSOLE LH
  68122-25550ALL6703 -   1
49TRIM-CONSOLE LH (RED)
  68701-12900ALL6703 -   1
50TRIM-CONSOLE LH (BLACK)
  68701-12901ALL6703 -   1
51BOLT TO FIX SIDE CONSOLE PANEL
  00114-41810ALL   -   6
52WASHER-LOCK TO FIX SIDE CONSOLE PANEL
  00915-11410ALL   -   6
53SCREW TO FIX LEFT CONSOLE PANEL
  00314-01210ALL   -   2
54WASHER-PLAIN TO FIX LEFT CONSOLE PANEL
  00915-41010ALL   -   2
55ASSY-BOX GLOVE
  68600-12900SP, SR   - 67091
56ASSY-BOX GLOVE
  68600-25900SP, SR6710 - 68091
57ASSY-BOX GLOVE
  68600-A3200SP, SR6810 -   1
58ASSY-BOX GLOVE
  68600-13000SPL, SRL   - 67091
59ASSY-BOX GLOVE
  68600-26000SPL, SPLU, SRL, SRLU6710 -   1
60ASSY-BOX GLOVE
  68600-A3300SPL, SPLU, SRL, SRLU6810 -   1
61NUT-U TYPE
  00918-41000ALL   -   1
62NUT-U TYPE
  00918-41000ALL   -   1
63SCREW TO FIX GLOVE BOX & HINGE
  00514-01310ALL   -   4
64WASHER-PLAIN TO FIX GLOVE BOX & HINGE
  00915-41010ALL   -   4
65STRIKER-LOCK GLOVE BOX LID
  68639-12900SP   - 67091
66STRIKER-LOCK GLOVE BOX LID
  68639-13000SPL, SRL   - 67091
67STRIKER-LOCK GLOVE BOX LID
  68639-25998 ALL   -   1
68STRIKER-LOCK GLOVE BOX LID
  68639-25998ALL   -   1
69STRIKER-LOCK GLOVE BOX LID
  68639-25998ALL   -   1
70SCREW
  00310-60610ALL   -   2
71WASHER-PLAIN
  00915-10610ALL   -   2
72BUMPER-GLOVE BOX LID
  68643-12900ALL   - 67092
73BUMPER-GLOVE BOX LID
  68643-25900ALL6710 -   2
74GROMMET-LID STOPPER
  68622-09400ALL   - 67091
75GROMMET-LID STOPPER
  68622-25900ALL6710 -   1
76ASSY-LID GLOVE BOX
  68607-25500SP   - 67091
77ASSY-LID GLOVE BOX
  68607-25500SP, SR6703 - 67091
78ASSY-LID GLOVE BOX
  68607-25951SP, SR6710 -   1
79ASSY-LID GLOVE BOX
  68607-25951SP, SR6710 -   1
80ASSY-LID GLOVE BOX
  68607-25600SPL   - 67091
81ASSY-LID GLOVE BOX
  68607-25600SPL, SRL6703 - 67091
82ASSY-LID GLOVE BOX
  68607-26051SPL, SPLU, SRL, SRLU   -   1
83ASSY-LID GLOVE BOX
  68607-26051SRL, SRLU   -   1
84ASSY-LOCK, GLOVE BOX LID
  68631-255001.6L   -   1
85ASSY-LOCK, GLOVE BOX LID
  68631-25500ALL6703 - 67091
86ASSY-LOCK, GLOVE BOX LID
  68631-25900ALL6710 -   1
87SCREW TO FIX LOCK
  00344-00810ALL   -   2
88WASHER-LOCK TO FIX LOCK
  00915-10810ALL   -   2
89COVER-LOCK
  68641-25500ALL   -   1
90COVER-LOCK
  68641-25500ALL   -   1
91ASSY-BRACKET, STEERING SUPPORT
  48317-14600R DRIVE   -   1
92ASSY-BRACKET, STEERING SUPPORT
  48317-14700L DRIVE   -   1
93CLAMP-STEERING POST, UPPER
  48324-14600ALL   - 67091
94CLAMP-STEERING POST, UPPER
  48324-25900ALL6710 -   1
95PACKING-RUBBER, STEERING POST
  48325-04100ALL   -   5
96PACKING-RUBBER, STEERING POST A
  48325-25901ALL6710 -   1
97PACKING-RUBBER, STEERING POST B
  48964-23100ALL   -   1
98PACKING-RUBBER, STEERING POST B
  48964-23100ALL   -   1
99PACKING-RUBBER, STEERING POST B
  48964-23100ALL   -   1
100CLAMP-STEERING POST LOWER
  48326-14600ALL   - 67091
101CLAMP-STEERING POST LOWER
  48326-25900ALL6710 -   1
102BOLT TO FIX CLAMP
  00114-42510ALL   -   2
103WASHER-PLAIN TO FIX CLAMP
  08911-10637ALL   -   2
104WASHER-LOCK TO FIX CLAMP
  00915-11410ALL   -   2
105NUT-TO FIX CLAMP
  74801-25950 ALL   -   2
106ASSY-PAD, INST (BLACK)
  74801-25950SP, SR   -   1
107ASSY-PAD, INST (BLACK)
  74801-25950SPL, SRL   -   1
108PACKING-RUBBER, STEERING POST
  74801-25950ALL   -   1
109ASSY-BOX, GLOVE FLOOR (BLACK) W/LOCK
  74801-25950ALL6710 -   1
