Datsun Fairlady 1600/2000 Body Rear Outside

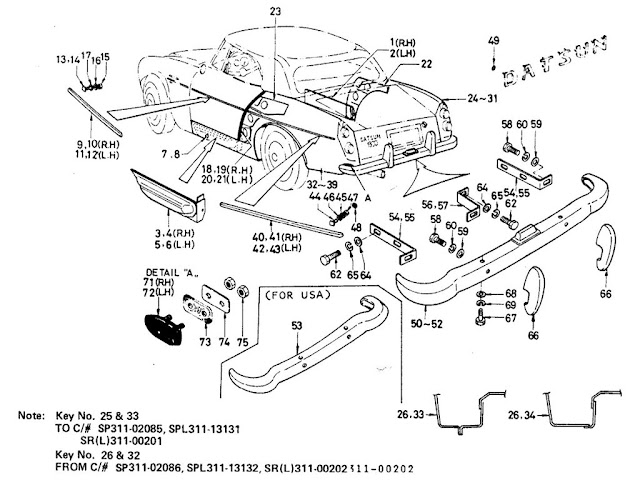

Datsun Fairlady Parts illustration no. 057A-1 Rear Outside View

057A -1  Rear Outside View
KeyPart No.ModelApplied DateQty
FromTo
1SILL INNER RH
  76420-25900ALL6710 -   1
2SILL INNER LH
  76421-25900ALL6710 -   1
3SIDE SILL OUTER RH
  76400-129301.6L   - 67021
4SIDE SILL OUTER RH
  76400-25500ALL6703 -   1
5SIDE SILL OUTER LH
  76401-255001.6L   -   1
6SIDE SILL OUTER LH
  76401-25500ALL6703 -   1
7COVER JACK HOLE
  76419-04100ALL   -   2
8COVER JACK HOLE
  76419-04100ALL   -   2
9MOULDING DOOR OUTSIDE RH
  80801-146001.6L   -   1
10MOULDING DOOR OUTSIDE RH
  80801-25500ALL6703 -   1
11MOULDING DOOR OUTSIDE LH
  80802-146001.6L   -   1
12MOULDING DOOR OUTSIDE LH
  80802-25500ALL6703 -   1
13RETAINER-OUTSIDE MOULDING
  63804-25500ALL   -   10
14RETAINER-OUTSIDE MOULDING
  63804-25500ALL   -   10
15NUT TO FIX OUTSIDE MOULDING
  16074-12210ALL   -   10
16WASHER-LOCK TO FIX OUTSIDE MOULDING
  00915-10810ALL   -   10
17WASHER-PLAIN TO FIX OUTSIDE MOULDING
  00915-40810ALL   -   10
18ASSY-PILLAR LOCK RH
  76600-25500ALL   -   1
19ASSY-PILLAR LOCK RH
  76600-25900ALL6710 -   1
20ASSY-PILLAR LOCK LH
  76601-25500ALL   -   1
21ASSY-PILLAR LOCK LH
  76601-25900ALL6710 -   1
22PANEL-QUARTER INNER RH
  76650-A3200ALL   -   1
23PANEL-QUARTER INNER LH
  76651-A3200ALL   -   1
24FENDER-REAR RH
  78100-146001.6L   - 67021
25FENDER-REAR RH
  78100-25525ALL6703 -   1
26FENDER-REAR RH
  78100-25550ALL   - 67091
27FENDER-REAR RH
  78100-25950ALL6710 - 68091
28FENDER-REAR RH
  78100-25950ALL (EXC USA & CANADA)6810 -   1
29FENDER-REAR RH FOR SIDE LAMP
  78100-26050USA6710 - 68091
30FENDER-REAR RH FOR SIDE LAMP
  78100-A3350USA & CANADA6810 - 69061
31FENDER-REAR RH FOR SIDE LAMP
  78100-A7850USA & CANADA6907 -   1
32FENDER-REAR LH
  78101-146001.6L   - 67021
33FENDER REAR LH
  78101-25525ALL6703 -   1
34FENDER-REAR LH
  78101-25550ALL   - 67091
35FENDER-REAR LH
  78101-25950ALL (EXC USA)6710 - 68091
36FENDER-REAR LH
  78101-25950ALL (EXC USA & CANADA)6810 -   1
37FENDER,REAR LH FOR SIDE LAMP
  78101-26050USA6710 - 68091
38FENDER,REAR LH FOR SIDE LAMP
  78101-A3350USA & CANADA6810 -   1
39FENDER,REAR LH FOR SIDE LAMP
  78101-A7850USA & CANADA6907 -   1
40MOULDING-REAR FENDER RH
  78201-146001.6L   -   1
41MOULDING-REAR FENDER RH
  78201-25500ALL6703 -   1
42MOULDING-REAR FENDER LH
  78201-146001.6L   -   1
43MOULDING-REAR FENDER LH
  78202-25500ALL6703 -   1
44RETAINER-MOULDING
  63803-10400ALL   -   14
45WASHER-LOCK TO FIX MOULDING
  00915-10810ALL   -   14
46WASHER-PLAIN TO FIX MOULDING
  00915-40810ALL   -   14
47NUT TO FIX MOULDING
  16074-12210ALL   -   14
48WASHER-RUBBER TO FIX MOULDING
  97331-25900ALL   -   14
49WASHER-SPONGE, EMBLEM
  97331-25900ALL   -   14
50BUMPER REAR
  85002-10401ALL   - 67091
51BUMPER REAR
  85002-26000ALL6710 -   1
52BUMPER REAR
  85002-26000ALL (EXC USA & CANADA)6810 -   1
53BUMPER REAR
  85002-A3300USA & CANADA6810 -   1
54STAY-BUMPER REAR SIDE
  85200-10400ALL   - 67092
55STAY-BUMPER REAR SIDE
  85200-12200ALL6710 -   2
56STAY-BUMPER REAR CENTER
  85201-10400ALL   - 67091
57STAY-BUMPER REAR CENTER
  85201-25900ALL6710 - 68091
58BOLT TO FIX BUMPER TO STAY
  00124-62010ALL   -   3
59WASHER-PLAIN TO FIX BUMPER TO STAY
  00915-41610ALL   -   3
60WASHER-LOCK TO FIX BUMPER TO STAY
  00915-11610ALL   -   3
61WASHER-LOCK TO FIX BUMPER TO STAY
  00915-11610ALL   -   3
62BOLT TO FIX STAY TO FRAME
  00114-62510ALL   -   5
63WASHER-PLAIN TO FIX STAY TO FRAME
  00915-41610ALL   -   5
64WASHER-PLAIN TO FIX STAY TO FRAME
  00915-41610ALL   -   5
65WASHER-LOCK TO FIX STAY TO FRAME
  00915-11610ALL   -   5
66OVERRIDER-ASSY
  62663-10426ALL   -   2
67BOLT TO FIX OVERRIDER
  00114-51610ALL   -   4
68WASHER-PLAIN TO FIX OVERRIDER
  00915-41500ALL   -   4
69WASHER-LOCK TO FIX OVERRIDER
  00915-11510ALL   -   4
70WASHER-LOCK TO FIX OVERRIDER
  00915-11510ALL   -   4
71RUBBER-BUMPER REAR RH
  78204-A3200ALL6810 -   1
72RUBBER-BUMPER REAR LH
  78205-A3200ALL6810 -   1
73PLAIN WASHER SPONGE
  78206-A3200ALL6810 -   2
74PLAIN WASHER SPONGE
  78207-A3200ALL6810 -   2
75NUT-HEX
  00911-14010ALL6810 -   4
76ASSY-PANEL WAIST
  79111-14600ALL   -   1
77ASSY-PANEL WAIST
  79111-14600ALL6810 -   1
SILL INNER LH WASHER-SPONGE, EMBLEM PANEL-QUARTER INNER LH SILL INNER RH PANEL-QUARTER INNER RH WASHER-LOCK TO FIX BUMPER TO STAY RETAINER-OUTSIDE MOULDING NUT TO FIX OUTSIDE MOULDING WASHER-PLAIN TO FIX OUTSIDE MOULDING MOULDING DOOR OUTSIDE RH SIDE SILL OUTER RH SIDE SILL OUTER LH MOULDING-REAR FENDER LH PLAIN WASHER SPONGE FENDER-REAR RH FENDER-REAR RH WASHER-PLAIN TO FIX OVERRIDER WASHER-PLAIN TO FIX STAY TO FRAME RETAINER-MOULDING WASHER-PLAIN TO FIX MOULDING WASHER-RUBBER TO FIX MOULDING BOLT TO FIX BUMPER TO STAY WASHER-LOCK TO FIX BUMPER TO STAY FENDER-REAR RH / FENDER-REAR RH FOR SIDE LAMP BOLT TO FIX BUMPER TO STAY WASHER-PLAIN TO FIX BUMPER TO STAY WASHER-LOCK TO FIX OUTSIDE MOULDING MOULDING DOOR OUTSIDE LH COVER JACK HOLE ASSY-PILLAR LOCK RH ASSY-PILLAR LOCK LH FENDER-REAR LH / FENDER,REAR LH FOR SIDE LAMP MOULDING-REAR FENDER RH BUMPER REAR PLAIN WASHER SPONGE NUT-HEX RUBBER-BUMPER REAR RH RUBBER-BUMPER REAR LH FENDER REAR LH FENDER-REAR LH OVERRIDER-ASSY OVERRIDER-ASSY BUMPER REAR BOLT TO FIX OVERRIDER WASHER-LOCK TO FIX OVERRIDER BOLT TO FIX STAY TO FRAME WASHER-LOCK TO FIX STAY TO FRAME WASHER-LOCK TO FIX MOULDING NUT TO FIX MOULDING STAY-BUMPER REAR SIDE STAY-BUMPER REAR CENTER WASHER-PLAIN TO FIX BUMPER TO STAY WASHER-PLAIN TO FIX STAY TO FRAME WASHER-LOCK TO FIX STAY TO FRAME BOLT TO FIX STAY TO FRAME STAY-BUMPER REAR SIDE STAY-BUMPER REAR SIDE
