Datsun Fairlady 1600 Seat (1965-1967)

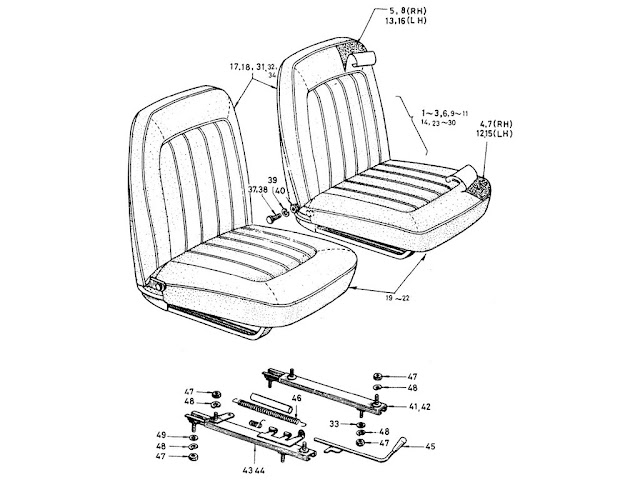

Datsun Fairlady Parts illustration no. 060-1 Seat (1965-67)

060 -1  Seat (1965-67)
KeyPart No.ModelApplied DateQty
FromTo
1COMP.SEAT,RH (RED)
  86000-14600SP   - 67021
2COMP-SEAT,RH (BLACK)
  86000-14601SP   - 67021
3COMP-SEAT,RH (RED)
  86000-14700SPL   - 67021
4TRIM CUSHION RH (RED)
  86320-14700SPL   - 67021
5TRIM BACK RH (RED)
  86630-14700SPL   - 67021
6COMP SEAT RH (BLACK)
  86000-14701SPL   - 67021
7TRIM CUSHION RH (BLACK)
  86320-14701SPL   - 67021
8TRIM BACK RH (BLACK)
  86630-14701SPL   - 67021
9COMP-SEAT,LH (RED)
  87000-14600SP   - 67021
10COMP-SEAT,LH (BLACK)
  87000-14601SP   - 67021
11COMP-SEAT,LH (RED)
  87000-14700SPL   - 67021
12COVER-SEAT LH (RED)
  87320-14700SPL   - 67021
13TRIM BACK LH (RED)
  87630-14700SPL   - 67021
14COMP-SEAT,LH (BLACK)
  87000-14701SPL   - 67021
15TRIM CUSHION LH (BLACK)
  87320-14701SPL   - 67021
16TRIM BACK LH (BLACK)
  87630-14701SPL   - 67021
17ASSY-BACK,SEAT (RED)
  86600-14600SP   - 67022
18ASSY-BACK,SEAT (BLACK)
  86600-14601SP   - 67022
19ASSY-CUSHION RH (RED)
  86300-14600SP   - 67021
20ASSY-CUSHION RH (BLACK)
  86300-14601SP   - 67021
21ASSY-CUSHION LH (RED)
  87300-14600SP   - 67021
22ASSY-CUSHION LH (BLACK)
  87300-14601SP   - 67021
23COMP-SEAT,RH (RED)
  86000-14602SP   - 67021
24COMP-SEAT RH (BLACK)
  86000-14603SP   - 67021
25COMP SEAT RH (RED)
  86000-14702SPL   - 67021
26COMP-SEAT RH (BLACK)
  86000-14703SPL   - 67021
27COMP-SEAT LH (RED)
  87000-14602SP   - 67021
28COMP-SEAT LH (BLACK)
  87000-14603SP   - 67021
29COMP-SEAT LH (RED)
  87000-14702SPL   - 67021
30COMP-SEAT LH (BLACK)
  87000-14703SPL   - 67021
31SEAT-BACK (RED)
  86600-14602ALL   - 67021
32SEAT-BACK (BLACK)
  86600-14603ALL   - 67021
33ASSY-CUSHION RH (RED)
  86300-14602ALL   - 67021
34ASSY-CUSHION RH (BLACK)
  86300-14603ALL   - 67021
35ASSY-CUSHION LH (RED)
  87300-14602ALL   - 67021
36ASSY-CUSHION LH (BLACK)
  87300-14603ALL   - 67021
37BOLT
  86011-129011.6L   - 67022
38BOLT
  86011-146001.6L   - 67022
39WASHER-LOCK
  00915-116101.6L   - 67022
40NUT-HEX
  00912-346101.6L   - 67022
41SLIDE ASSY RH OUTER
  86500-129011.6L   - 67021
42SLIDE ASSY LH OUTER
  87500-129011.6L   - 67021
43SLIDE ASSY RH INNER
  86501-146041.6L   - 67021
44SLIDE SEAT LH INNER
  87501-129011.6L   - 67021
45KNOB-RELEASE LEVER
  87524-12900ALL   - 67022
46SPRING RETURN
  86510-12900ALL   - 67022
47NUT-HEX TO FIX FLOOR TO SEAT
  00911-24510ALL   - 670216
48WASHER-LOCK TO FIX FLOOR TO SEAT
  00915-11510ALL   - 670216
49WASHER-PLAIN TO FIX FLOOR TO SEAT
  00915-41610ALL   - 67028
SEAT-BACK (RED) / SEAT-BACK (BLACK) ASSY-CUSHION RH (BLACK) TRIM BACK RH (RED) TRIM BACK LH (RED) COMP.SEAT,RH (RED) / COMP-SEAT,RH (RED) COMP-SEAT,LH (RED) TRIM CUSHION RH (BLACK) TRIM CUSHION LH (BLACK) ASSY-CUSHION RH (RED) / ASSY-CUSHION LH (BLACK) NUT-HEX SLIDE ASSY RH INNER / SLIDE SEAT LH INNER WASHER-LOCK TO FIX FLOOR TO SEAT NUT-HEX TO FIX FLOOR TO SEAT WASHER-LOCK TO FIX FLOOR TO SEAT NUT-HEX TO FIX FLOOR TO SEAT NUT-HEX TO FIX FLOOR TO SEAT ASSY-BACK,SEAT (RED) / ASSY-BACK,SEAT (BLACK) TRIM BACK RH (BLACK) TRIM BACK LH (BLACK) COMP-SEAT,LH (BLACK) COMP-SEAT,RH (RED) / COMP-SEAT LH (BLACK) COMP SEAT RH (BLACK) TRIM CUSHION RH (RED) COVER-SEAT LH (RED) BOLT WASHER-LOCK ASSY-CUSHION RH (RED) KNOB-RELEASE LEVER SPRING RETURN NUT-HEX TO FIX FLOOR TO SEAT WASHER-PLAIN TO FIX FLOOR TO SEAT WASHER-LOCK TO FIX FLOOR TO SEAT WASHER-LOCK TO FIX FLOOR TO SEAT SLIDE ASSY RH OUTER / SLIDE ASSY LH OUTER
