Datsun Fairlady 1600/2000 Seat (1967.5)

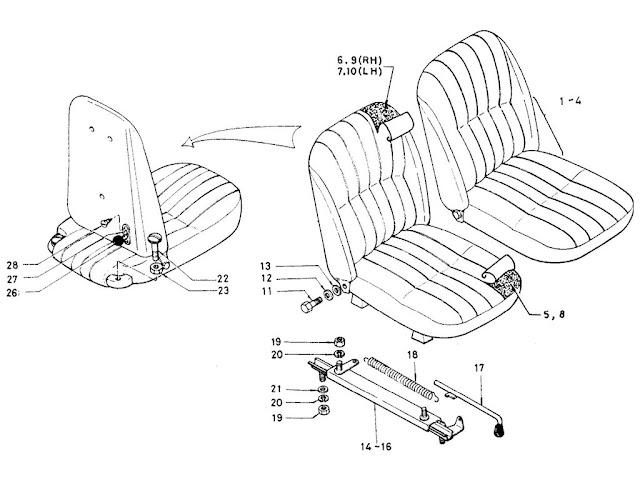

Datsun Fairlady Parts illustration no. 060A-1 Seat (1967.5)

060A -1  Seat (1967.5)
KeyPart No.ModelApplied DateQty
FromTo
1COMP-SEAT RH (RED)
  86000-25500ALL6703 - 67091
2COMP SEAT RH (BLACK)
  86000-25501ALL6703 - 67091
3COMP-SEAT LH (RED)
  87000-25500ALL6703 - 67091
4COMP SEAT LH (BLACK)
  87000-25907ALL6703 - 67091
5TRIM CUSHION RH & LH (RED)
  86320-25500ALL6703 - 67092
6TRIM BACK RH (RED)
  86630-25500ALL6703 - 67091
7COVER-SEAT LH (RED)
  87630-25500ALL6703 - 67091
8TRIM CUSHION RH&LH (BLACK)
  86320-25501ALL6703 - 67092
9TRIM BACK RH (BLACK)
  86630-25501ALL6703 - 67091
10TRIM BACK LH (BLACK)
  87630-25501ALL6703 - 67091
11BOLT-HINGE SEAT
  86011-25500ALL6703 - 67094
12WASHER-PLAIN NYLON
  86012-25500ALL6703 - 67094
13WASHER-PLAIN
  00915-51510ALL6703 - 67092
14ASSY-SLIDE
  86550-12901ALL6703 - 67092
15SLIDE-W/LEVER SEAT RH INNER
  86501-14604ALL6703 - 67091
16SLIDE-W/LEVER SEAT LH INNER
  87501-14604ALL6703 - 67091
17KNOB-RELEASE LEVER
  87524-12900ALL6703 - 67092
18SPRING RETURN, SEAT
  86510-12900ALL6703 - 67092
19NUT-HEX, TO FIX FLOOR TO SEAT
  00911-24510ALL6703 - 670916
20WASHER-LOCK TO FIX FLOOR TO SEAT
  00915-11510ALL6703 - 670916
21WASHER-PLAIN TO FIX FLOOR TO SEAT
  00915-41610ALL6703 - 67098
22BOLT-STOPPER SEAT BACK RH
  86110-25500ALL6703 - 67094
23NUT-STOPPER BOLT
  00911-34610ALL6703 - 67094
24BUMPER, SEAT BACK
  86805-J5100ALL6703 - 67094
25SCREW TO FIX BUMPER
  00310-81010ALL6703 - 67094
26KNOB-SEAT LOCK OFF LEVER
  87617-18200ALL6703 - 67092
27ORNAMENT-LOCK
  86610-25500ALL6703 - 67092
28SCREW TO FIX ORNAMENT
  00530-51010ALL6703 - 67094
TRIM CUSHION RH & LH (RED) BOLT-HINGE SEAT WASHER-PLAIN ASSY-SLIDE / SLIDE-W/LEVER SEAT LH INNER KNOB-RELEASE LEVER SPRING RETURN, SEAT WASHER-LOCK TO FIX FLOOR TO SEAT BOLT-STOPPER SEAT BACK RH NUT-STOPPER BOLT KNOB-SEAT LOCK OFF LEVER COMP-SEAT RH (RED) / COMP SEAT LH (BLACK) TRIM BACK RH (RED) TRIM BACK RH (BLACK) COVER-SEAT LH (RED) TRIM BACK LH (BLACK) TRIM CUSHION RH&LH (BLACK) WASHER-PLAIN NYLON NUT-HEX, TO FIX FLOOR TO SEAT WASHER-PLAIN TO FIX FLOOR TO SEAT NUT-HEX, TO FIX FLOOR TO SEAT WASHER-LOCK TO FIX FLOOR TO SEAT ORNAMENT-LOCK SCREW TO FIX ORNAMENT
