Datsun Fairlady 1600/2000 Seat (1968-1970)

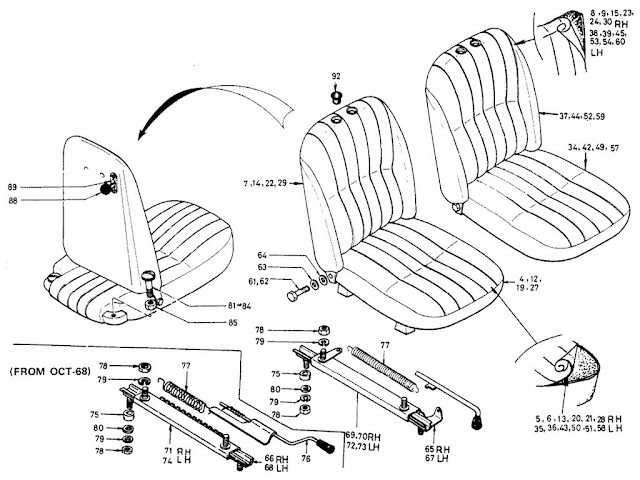

Datsun Fairlady Parts illustration no. 060B-1 Seat (1968-70)

060B -1  Seat (1968-70)
KeyPart No.ModelApplied DateQty
FromTo
1COMP-SEAT RH (RED)
  86001-A3200 ALL6710 -   1
2COMP-SEAT RH (RED)
  86001-A3200ALL (EXC USA)6710 -   1
3COMP-SEAT RH (RED)
  86001-A3200ALL (EXC USA & CANADA)6810 -   1
4SEAT-CUSHION RH (RED)
  86300-25902ALL (EXC USA & CANADA)6810 -   1
5SEAT-CUSHION RH (RED)
  86320-25900ALL6710 -   1
6SEAT-CUSHION RH (RED)
  86320-25902ALL (EXC USA)6710 -   1
7SEAT-BACK RH (RED)
  86600-25902ALL (EXC USA & CANADA)6810 -   1
8TRIM-BACK RH (RED)
  86630-25900ALL6710 -   1
9TRIM-BACK RH (RED)
  86630-25902ALL (EXC USA)6710 -   1
10SEAT-BUCKET RH (RED)
  86001-A3300USA6710 -   1
11SEAT-BUCKET RH (RED)
  86001-A3300USA & CANADA6810 -   1
12SEAT-CUSHION RH (RED)
  86300-25906USA & CANADA6810 -   1
13TRIM CUSHION RH (RED)
  86320-25906USA6710 -   1
14SEAT-BACK RH (RED)
  86600-25900USA & CANADA6810 -   1
15TRIM-BACK RH (RED)
  86630-25902USA6710 -   1
16COMP-SEAT RH (BLACK)
  86001-A3201 ALL6710 -   1
17COMP-SEAT RH (BLACK)
  86001-A3201ALL (EXC USA)6710 -   1
18COMP-SEAT RH (BLACK)
  86001-A3201ALL (EXC USA & CANADA)6810 -   1
19SEAT-CUSHION RH (BLACK)
  86300-25903ALL (EXC USA & CANADA)6810 -   1
20TRIM CUSHION RH (BLACK)
  86320-25901ALL (EXC USA)6710 -   1
21TRIM CUSHION RH (BLACK)
  86320-25903ALL (EXC USA)6710 -   1
22SEAT-BACK RH (BLACK)
  86600-25903ALL (EXC USA & CANADA)6810 -   1
23TRIM-BACK RH (BLACK)
  86630-25901ALL6710 -   1
24TRIM-BACK RH (BLACK)
  86630-25903ALL (EXC USA)6710 -   1
25COMP SEAT RH (BLACK)
  86001-A3301USA6710 -   1
26COMP SEAT RH (BLACK)
  86001-A3301USA & CANADA6810 -   1
27SEAT CUSHION RH (BLACK)
  86300-25907USA & CANADA6810 -   1
28TRIM CUSHION RH (BLACK)
  86320-25907USA6710 -   1
29SEAT BACK RH (BLACK)
  86600-25901USA & CANADA6810 -   1
30TRIM-SEAT BACK RH (BLACK)
  86630-25903USA6710 -   1
31COMP-SEAT LH (RED)
  87001-A3200 ALL6710 -   1
32COMP-SEAT LH (RED)
  87001-A3200ALL (EXC USA)6710 -   1
33COMP-SEAT LH (RED)
  87001-A3200ALL (EXC USA & CANADA)6810 -   1
34SEAT-CUSHION LH (RED)
  87300-25902ALL (EXC USA & CANADA)6810 -   1
35TRIM CUSHION LH (RED)
  87320-25900ALL6710 -   1
36TRIM CUSHION LH (RED)
  87320-25902ALL (EXC USA)6710 -   1
37SEAT-BACK LH (RED)
  87600-25902ALL (EXC USA & CANADA)6810 -   1
38COVER-SEAT LH (RED)
  87630-25900ALL6710 -   1
39TRIM BACK LH (RED)
  87630-25902ALL (EXC USA)6710 -   1
40COMP SEAT LH (RED)
  87001-A3300USA6710 -   1
41COMP-SEAT LH (RED)
  87001-A3300USA & CANADA6810 -   1
42SEAT-CUSHION LH (RED)
  87300-25906USA & CANADA6810 -   1
43TRIM CUSHION LH (RED)
  87320-25906USA6710 -   1
44SEAT BACK LH (RED)
  87600-25900USA & CANADA6810 -   1
45TRIM BACK LH (RED)
  87630-25902USA6710 -   1
46COMP SEAT LH (BLACK)
  87001-A3201 ALL6710 -   1
47COMP-SEAT,LH (BLACK)
  87001-A3201ALL (EXC USA)6710 -   1
48COMP-SEAT LH (BLACK)
  87001-A3201ALL (EXC USA & CANADA)6810 -   1
49SEAT-CUSHION LH (BLACK)
  87300-25903ALL (EXC USA & CANADA)6810 -   1
50TRIM-CUSHION LH (BLACK)
  87320-25901ALL6710 -   1
51TRIM-CUSHION LH (BLACK)
  87320-25903ALL (EXC USA)6710 -   1
52SEAT-BACK LH (BLACK)
  87600-25903ALL (EXC USA & CANADA)6810 -   1
53TRIM BACK LH (BLACK)
  87630-25901ALL6710 -   1
54TRIM BACK LH (BLACK)
  87630-25903ALL (EXC USA)6710 -   1
55COMP SEAT LH (BLACK)
  87001-A3301USA6710 -   1
56COMP-SEAT LH(BLACK)
  87001-A3301USA & CANADA6810 -   1
57CUSHION ASSY LH (BLACK)
  87300-25907USA & CANADA6810 -   1
58TRIM CUSHION LH (BLACK)
  87320-25907USA6710 -   1
59SEAT-BACK LH (BLACK)
  87600-25901USA & CANADA6810 -   1
60TRIM BACK LH (BLACK)
  87630-25903USA6710 -   1
61BOLT-HINGE INNER
  86011-25900ALL6710 -   2
62BOLT-HINGE OUTER
  00114-51410ALL6710 -   2
63WASHER-PLAIN, NYLON
  86012-25500ALL6703 -   4
64WASHER-PLAIN
  00915-51510ALL6703 -   2
65SLIDE ASSY RH INNER
  86501-A3200ALL6710 -   1
66SLIDE-SEAT RH INNER
  86501-A3200ALL6810 -   1
67ASSY-SLIDE LH INNER
  87501-A3200ALL6710 -   1
68SLIDE-SEAT LH INNER
  87501-A3200ALL6810 -   1
69ASSY-SLIDE W/LEVER RH OUTER
  86500-25900ALL (EXC USA)6710 -   1
70ASSY-SLIDE W/LEVER RH OUTER
  86500-A3200USA6710 -   1
71ASSY-SLIDE W/LEVER RH OUTER
  86500-A3200ALL6810 -   1
72ASSY-SLIDE W/LEVER LH OUTER
  87500-25900ALL (EXC USA)6710 -   1
73ASSY-SLIDE W/LEVER LH OUTER
  87500-25902USA6710 -   1
74ASSY-SLIDE W/LEVER LH OUTER
  87500-A3200ALL6810 -   1
75DISTANCE PIECE
  86552-12901ALL6810 -   4
76KNOB-RELEASE LEVER
  87524-12900ALL6710 -   2
77SPRING RETURN, SEAT
  86510-12900ALL6710 -   2
78NUT-HEX TO FIX FLOOR TO SEAT
  00911-24510ALL6710 -   16
79WASHER-LOCK TO FIX FLOOR TO SEAT
  00915-11510ALL6710 -   16
80WASHER-PLAIN TO FIX FLOOR TO SEAT
  00915-41610ALL6710 -   8
81BOLT-STOPPER SEAT BACK RH
  86110-25901ALL6710 -   2
82BOLT-STOPPER SEAT BACK RH
  86110-25901ALL6710 -   2
83BOLT-STOPPER SEAT BACK LH
  86111-25901ALL6710 -   2
84BOLT-STOPPER SEAT BACK LH
  86111-25901ALL6710 -   2
85NUT-STOPPER BOLT
  00911-34610ALL6703 -   4
86BUMPER SEAT BACK
  86805-J5100ALL6703 -   4
87SCREW TO FIX BUMPER
  00310-81010ALL6703 -   4
88KNOB-SEAT LOCK OFF LEVER
  87617-18200ALL6703 -   2
89ORNAMENT LOCK
  86610-25900ALL6710 -   2
90WIRE-SEAT SLIDE
  86050-25900ALL6710 -   2
91WIRE-PULL SLIDE SEAT
  86050-A3200ALL6810 -   2
92PLUG-SEAT BACK
  86620-25900ALL6710 -   4
